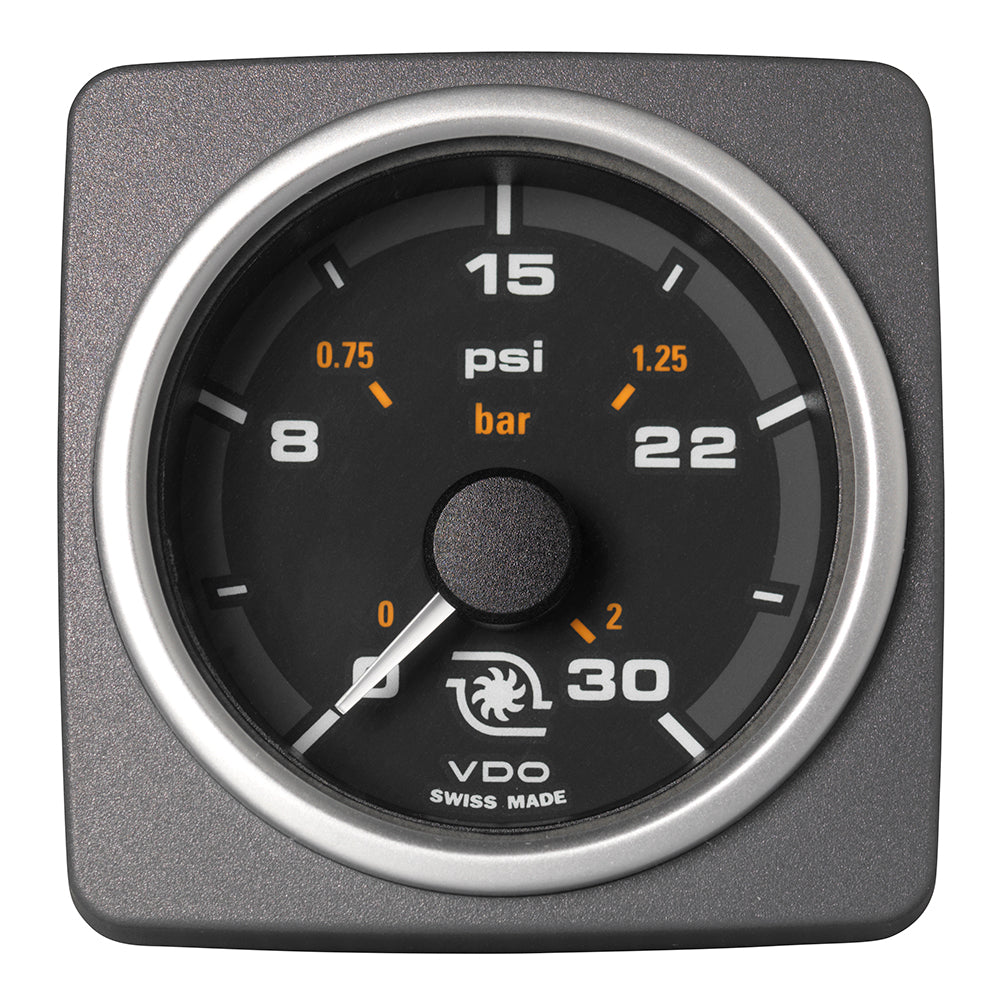

Veratron 52 MM (2-1/16") AcquaLink Boost Pressure Gauge 30 PSI/2 Bar - Black Dial & Bezel

AcquaLink 52 mm Pressure Gauges are connected directly to any AcquaLink 110 mm Tachometer using the patented EasyLink serial bus connection. Up to 16 EasyLink gauges for each Tachometer can be daisy-chained together. Giving the customer the possibility to customize the cockpit, AcquaLink 52 mm Gauges have not included bezel in the packaging.

52 MM (2-1/16") AcquaLink Boost Pressure Gauge 30 PSI/2 Bar - Black Dial & Bezel

AcquaLink realizes state-of-the-art solutions to provide customers with instantaneous and accurate nautical information.  The instruments are designed for performance, with ease of use remaining an important attribute. The use of premium material - such as mineral glass lenses - guarantees the highest level of reliability and readability, as well as low energy consumption.

Features:

• Maximum precision and the deployment of pioneering technologies are equally important as ease of use and stylish design.
• AcquaLink components are made of high class materials, like mineral glass, stainless steel and aluminum.
• All products are manufactured below ISO 9001 certified environment.
• Our plug and play solution design concept offers a high level of installation flexibility.
• A cross-platform standard offers maximum freedom in respect of cockpit customization.
• We ensure seamless integration and optimum utilization of AcquaLink devices for extreme conditions at sea.
• Harmonized dashboard look.

Technical Specifications:

• Operating Range - 0 to 30 PSI/0 to 2 Bar
• Input Signal -  EasyLink
• Nominal Voltage -12 / 24 V
• Color - Black/Aluminum
• Installation Diameter - 52 mm (2-1/16")
• Installation Depth - 50 mm
• Lens - Mineral Glass - Anti-fog
• IP Class - IPX6
• Connector Type - AMP Superseal IP65 3-Pole

In the Box:

• Gauge
• Install/Safety Manual

*Sold as an Individual

"OceanLink 7\" NMEA 2000 Certified TFT Gateway - Black OceanLink 7\" NMEA 2000 Certified TFT Gateway converts both analog and J1939 data into NMEA 2000 data. The display features a daylight readable 24bit optically bonded transmissive screen, 40 different customizable screens and support for up to 20 individual satellite gauges. OceanLink Technical Information: 1x NMEA 2000 connector 1x J1939 and 4x analogue input 6x 0-400 ohm analog inputs 2x frequency inputs 3x 0-5V inputs 2x 4-20mA inputs 2x RGB video inputs Operating temperature range -25 \u00b0C \/ +70 \u00b0C Optical bonded mineral glass lens Front & rear side protection rating IPX9 Touch screen swipe technology ."
SKU: NVN-82574
MPN: A2C59501945
