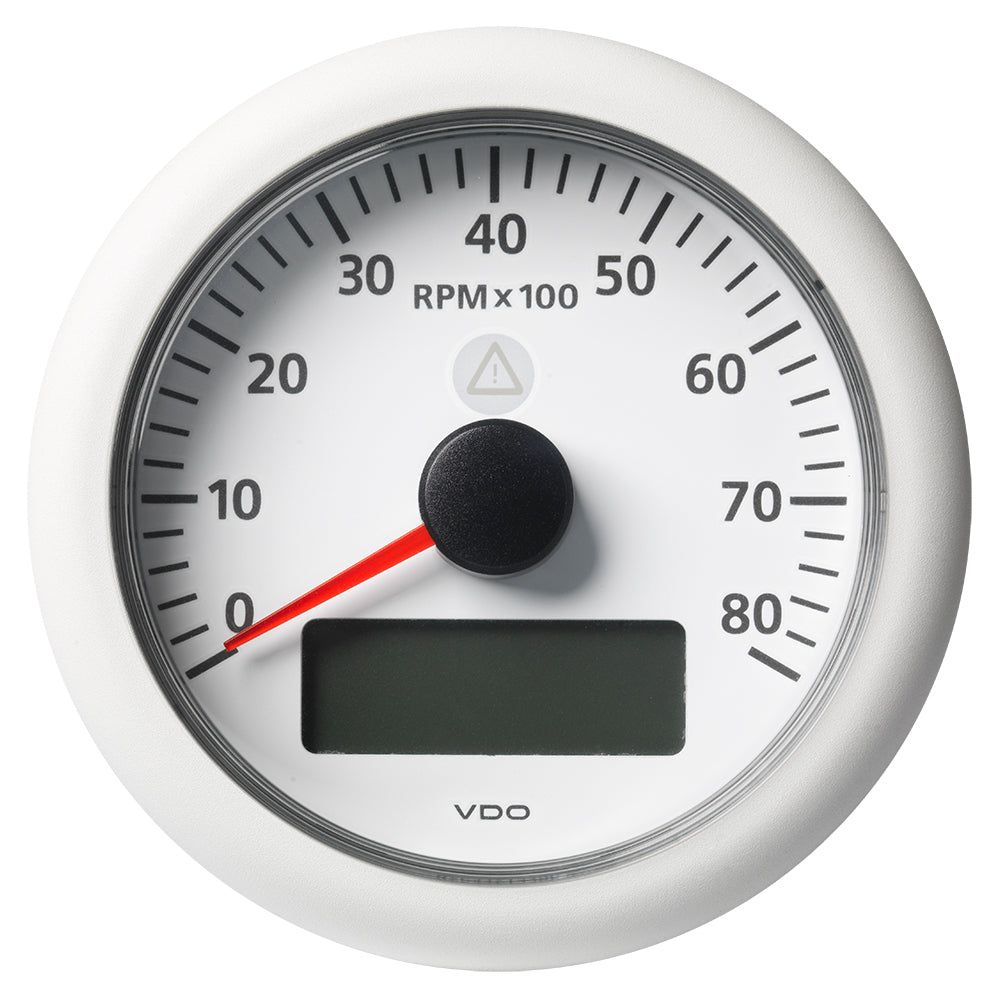

Veratron 3-3/8" (85MM) ViewLine Tachometer w/Multi-Function Display - 0 to 8000 RPM - White Dial & Bezel

3-3/8" (85MM) ViewLine Tachometer with Multi-Function Display - 0 to 8000 RPM - White Dial & Bezel

The ViewLine Tachometer is available with or without operating hours counter (digital display) and can be connected to conventional marine engines (no data bus).

One LED warning light is integrated as a standard

Specifications:

• Various sensor inputs (W, Ind, Hall, Generator)
• Output for acoustic alert (option)
• LCD size - 37 mm x 11 mm
• 8 and 14 pole Tyco / Hirschmann bush housing • Operating voltage 8 – 32 V
• Accuracy +/- 2.5 % of full scale reading
• < 175 mA current consumption with an LED warning  light as standard
• Number of pulses programmable via dip switch  or PC software (ViewLine programming tool)
•  Anti-fog double lens
•  Protection rating front IP67, rear IP52
•  85 mm installation diameter
•  50 mm installation depth •
• Operating temperature range -20 °C / +70 °C
• Reverse polarity protection

3-3/8 inch (85 mm) ViewLine tachometer with multi-function display-0 to 8000 RPM- white dial and bezel ViewLine tachometer can be with or without hour counter (digital display) and...
SKU: NVN-81580
MPN: A2C59512401
UPC:
