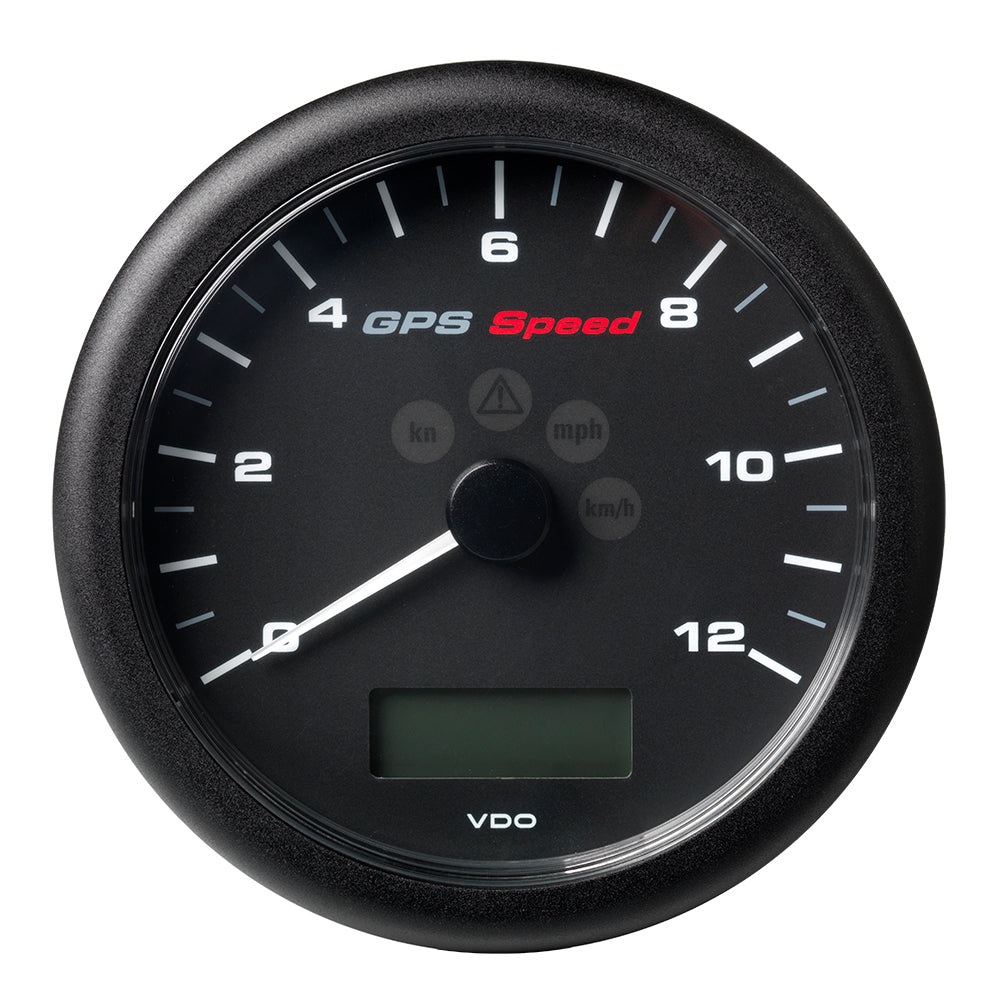

Veratron 4-1/4" (110MM) ViewLine GPS Speedometer 0-12 KNOTS/KMH/MPH - 8 to 16V Black Dial & Bezel

4-1/4" (110MM) ViewLine GPS Speedometer 0-12 KNOTS/KMH/MPH - 8 to 16V Black Dial & Bezel

Based on the ViewLine housing concept, ViewLine gauges provides an ideal IP protection class, a modern appearance and high quality standards.

It provides many parameters in NMEA 2000® and there are several customization opportunities to meet specific customer demands.

Displayed Data:

• GPS signal quality, Course over ground (COG)
• UTC time (optional with external push button)
• Trip distance (optional with external push button),
• Trip time (optional with external push button)

Specifications:

•  Embedded GPS antenna
•  Robust and flexible design for versatile applications
•  CAN capability (NMEA 2000®)
•  Pointer for analog indication of Speed over Ground (SOG)
•  Programmable speed alarm
•  Fixed segment LCD
•  Flush mount possibility
•  Front side protection rating IP67
•  Compass for Course over Ground (COG)
•  Clock
•  110 mm installation diameter
•  126 mm outer diameter
•   50 mm installation depth
•  Reverse polarity protection
•  1x Telltale generic alarm
•  1x Telltale alarm (knots / kmh / mph)

4-1/4" (110MM) ViewLine GPS Speedometer 0-12 knots / KMH/MPH-8 to 16V black dial and bezel are based on the concept of ViewLine housing, ViewLine meters provide ideal IP protection level, modern. ..
SKU: NVN-81540
MPN: A2C59501987
