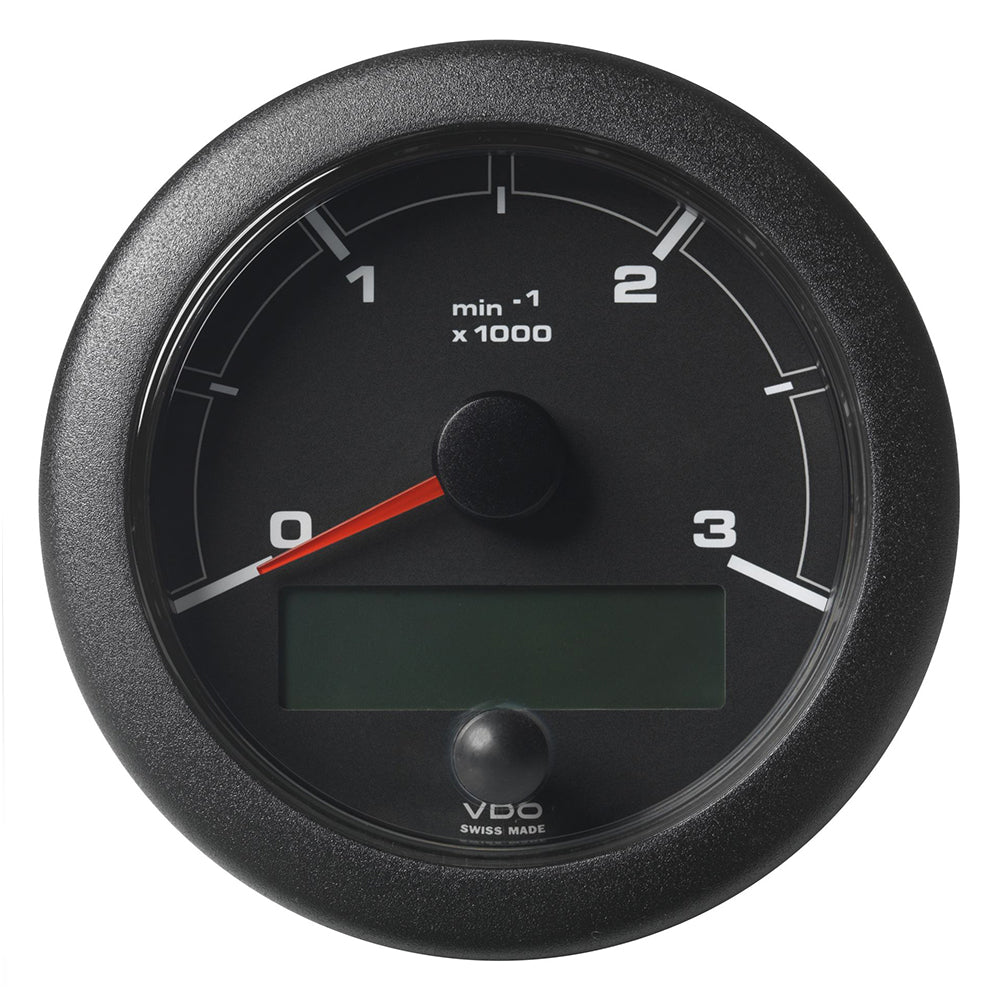

Veratron 3-3/8" (85mm) OceanLink Tachometer 3000 RPM - Black Dial & Bezel

The new OceanLink Tachometer automatically presents all the key data ranging from oil pressure and fuel consumption to operating hours – on a generously proportioned inverted dot matrix digital display. Besides a CAN interface with NMEA 2000 certified and SAE J1939 data protocol it features two inputs for analog sensors. The innovative EasyLink data connection make the installation easy and cost effective. Satellite instruments for further dynamic measurement values receive updates from the central instrument every 20 msec. OceanLink is available in various designs and a number of bezel color options. The instruments can also be conveniently integrated into customer-specific panel solutions. The VDO Tachometer displays all important engine related data and distribute it to up to sixteen 52 mm satellite gauges.

3-3/8" (85MM) OceanLink® NMEA 2000® Tachometer - 3000 RPM - Black Dial & Bezel

The OceanLink® Tachometer automatically presents all the key data ranging from oil pressure and fuel consumption to operating hours – on a generously proportioned inverted dot matrix digital display. Besides a CAN interface with NMEA 2000® certified and SAE J1939 data protocol it features two inputs for analog sensors. The innovative EasyLink data connection makes the installation easy and cost effective. Satellite instruments for further dynamic measurement values receive updates from the central instrument every 20 seconds.

Features:

• 1x NMEA 2000® input
• 1x J1939 and analog input
• Reverse polarity protection
• Protection rating IPX5
• Operating temperature range -20 °C / +70 °C
• 12/24V

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

It also accepts J1939 input and converts to NMEA2000. With black dial and black bezel. Ocean Link technical information: 1 NMEA 2000 input, 1 J1939 and analog input reverse...
SKU: NVN-76360
MPN: A2C1065660001
UPC: 7640178720947
