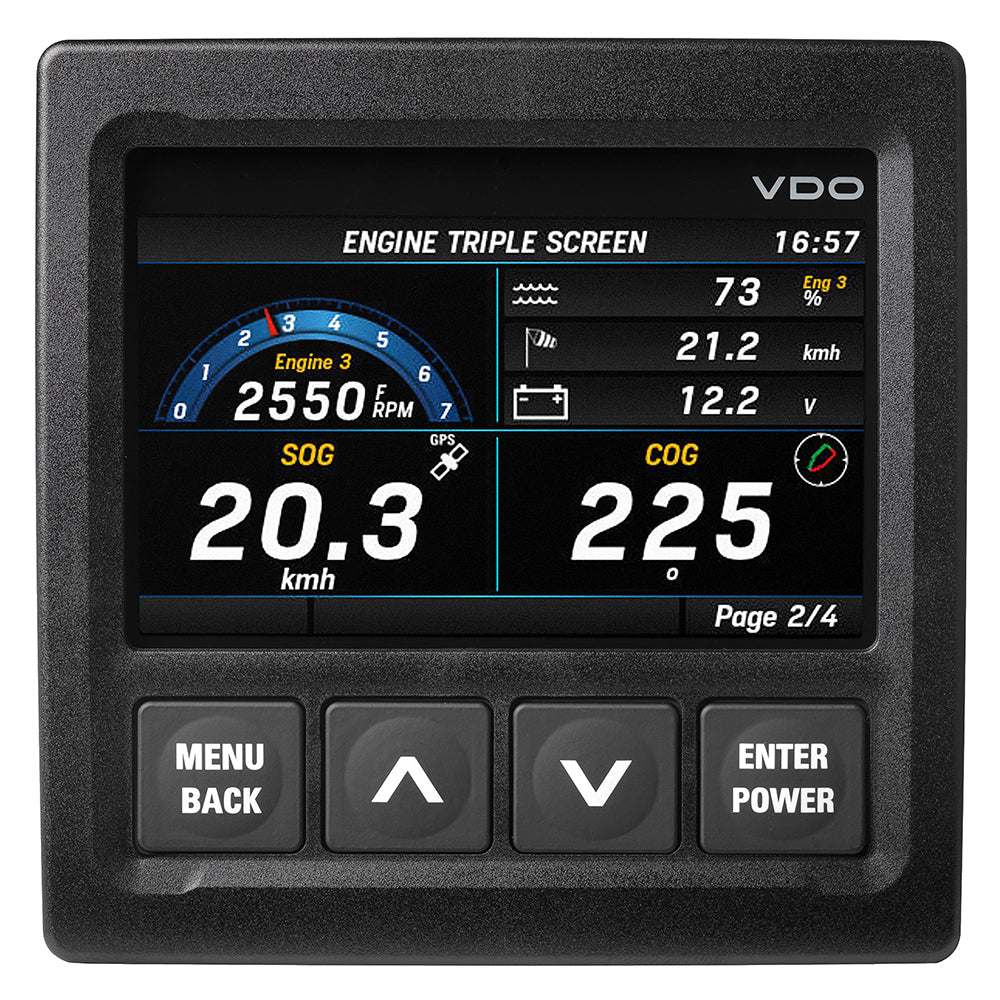

Veratron OceanLink® 4.3" NMEA 2000® Certified TFT Gateway - Black

The OceanLink 4.3" multifunction TFT Display features a full 24 bit / 16 m colors optically bonded display with transmissive layer technology for perfect readability even in direct sunlight. The TFT Display receives and distributes a wide array of data received from NMEA 2000 and J1939 CAN Bus systems and analogue sensors directly connected to the display. Users can customize up to 10 different data pages with single, double, treble or quad grid layouts. The Display can be linked via NMEA 2000 with other OceanLink gauges, displays or NavControls using the unique VDO Bus or directly connected to the NMEA 2000 backbone (optional adapter cable required) for simple installation on any yacht.

OceanLink® 4.3" NMEA 2000® Certified TFT Gateway - Black

The new OceanLink® 4.3" multifunction TFT Display features a full 24 bit/16 m colors optically bonded display with transmissive layer technology for perfect readability even in direct sunlight. The TFT Display shows and distributes a wide array of data received from NMEA 2000® and J1939 CAN Bus systems and analog sensors directly connected to the display. Users can customize up to 40 different data pages with single, double, treble or quad grid layouts.

TFT Displays can be daisy-chained with other OceanLink® gauges, displays or NavControls using the unique VDO Marine Bus or directly connected to the NMEA 2000® backbone (optional adapter cable required) for simple installation on any yacht.

Features:

• Optical bonded mineral glass lens • Front & rear side protection rating IPX7
• 1x NMEA 2000® connector
• 1x J1939
• 2x Analog input
• 1x Frequency input
• 2x 4–20 mA output
• 1x EasyLink data output
• 1x Programmable alarm output 500 mA
• Operating temperature range -20°C/+70°C
• 12/24V

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

TFT gateway certified by OceanLink 4.3 NMEA 2000-BlackOceanLink 4.3 TFT gateway certified by NMEA 2000 converts analog and J1939 data into NMEA 2000 data. The display has a daylight-readable 24-bit optically bonded transmission screen, 40 different customizable screens, and has the function of supporting up to 20 individual satellite measuring instruments. OceanLink technical information: 1 NMEA 2000 connector, 1 J1939 and 4 analog inputs, 1 frequency input Operating temperature range -20 C / +70 C Optically bonded mineral glass lens front and back protection grade IPX9 Warning: Yes Using this product California is known to cause cancer, birth defects or other reproductive harm (including lead) chemicals.
SKU: NVN-76243
MPN: A2C1352150001
UPC: 7640178720930
