Trident Marine 20" Pigtail Hose Quick Connect w/1/4" Male Inverted Flare Fitting
Trident Marine 20" Pigtail Hose Quick Connect w/1/4" Male Inverted Flare Fitting — Product description

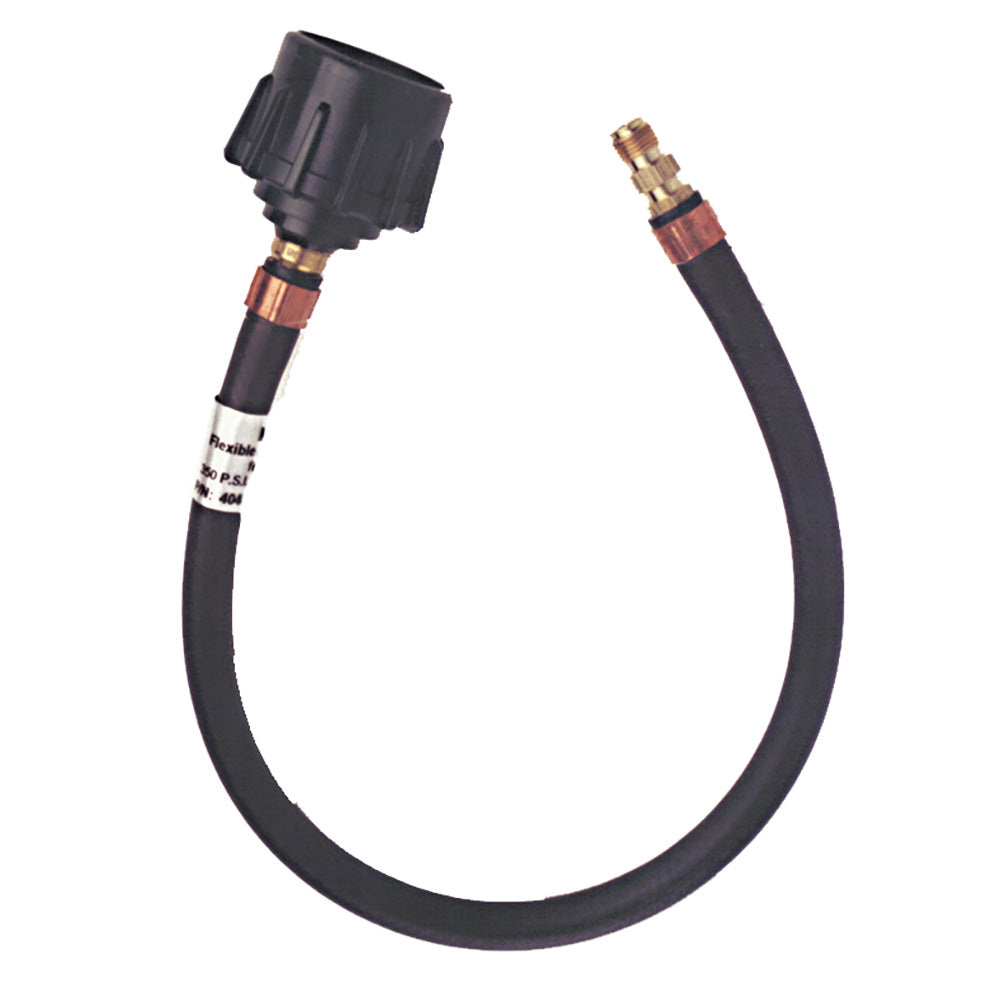

20" Pigtail Hose Quick Connect with 1/4" Male Inverted Flare Fitting
Use to connect wall-mount regulators to cylinders with New Type 1 valves (outside R.H. Threads). Fully assembled, leak tested, and UL Listed. 20” high-pressure hose with 1/4” male inverted flare fitting X thermoplastic QCC Nut for quick and easy hand-tight connection. Allows no gas flow unless fully connected. Nut has heat heat-sensing feature that shuts off all gas flow if temperatures reach 2400 to 3000°F. A controlled flow device will activate in case of a downstream gas system break (at 200 Cu Ft/Hr) and restrict gas flow (to 10 CFH at 100 PSI).
Size: 3.5”H x 7.5”W x 2.5”D
SKU: NVN-109850
MPN: 1014-1415-20
UPC:
Technical specifications
| Brand | Trident Marine |
| Model | Trident Marine 20" Pigtail Hose Quick Connect w/1/4" Male Inverted Flare Fitting |
| SKU / MFR# | 109850 |
