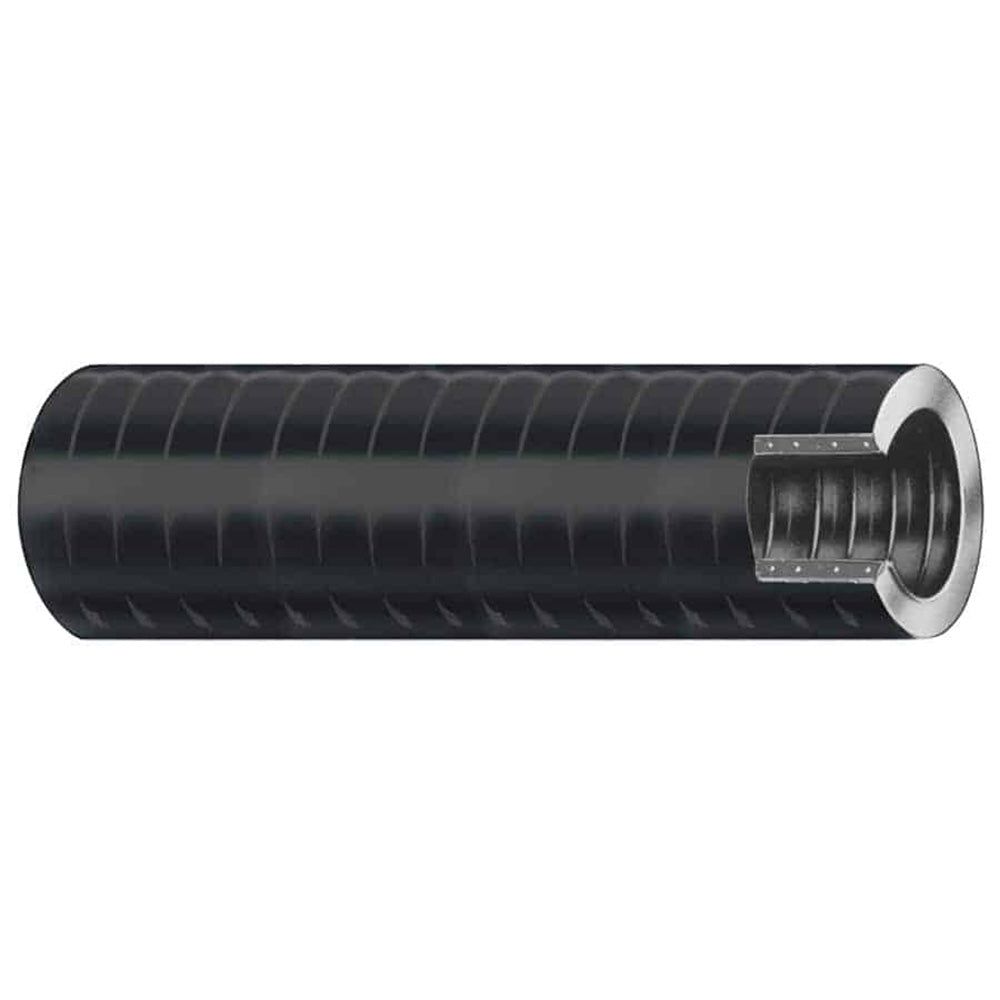

Trident Marine 1-1/8" VAC XHD Bilge & Live Well Hose - Hard PVC Helix - Black - Sold by the foot

1-1/8" VAC XHD Bilge & Live Well Hose - Hard PVC Helix - Black - Sold by the foot

Trident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.

Features:

• Sold by the foot
• 149 series of hoses is extra flexible

Application:

• Bilge and live well hose

Specifications:

• Tube & Cover: Hard PVC helix
• Color: Black
• Reinforcement: PVC Helix
• Temperature Range: 10°F-120°F (-12°C-48°C)
• Inner Diameter: (inch) 1-1/8" / (mm) 28.6
• Outer Diameter: (inch) 1.433" / (mm) 36.4
• Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93
• Weight: (Lb./ 50 ft.) 15 / (Kg/m) 6.80
• Bend Radius: (inch) 3" / (mm) 76.2

*Burst Pressure is 4 x Working Pressure

SKU: NVN-99608
MPN: 149-1186-FT
