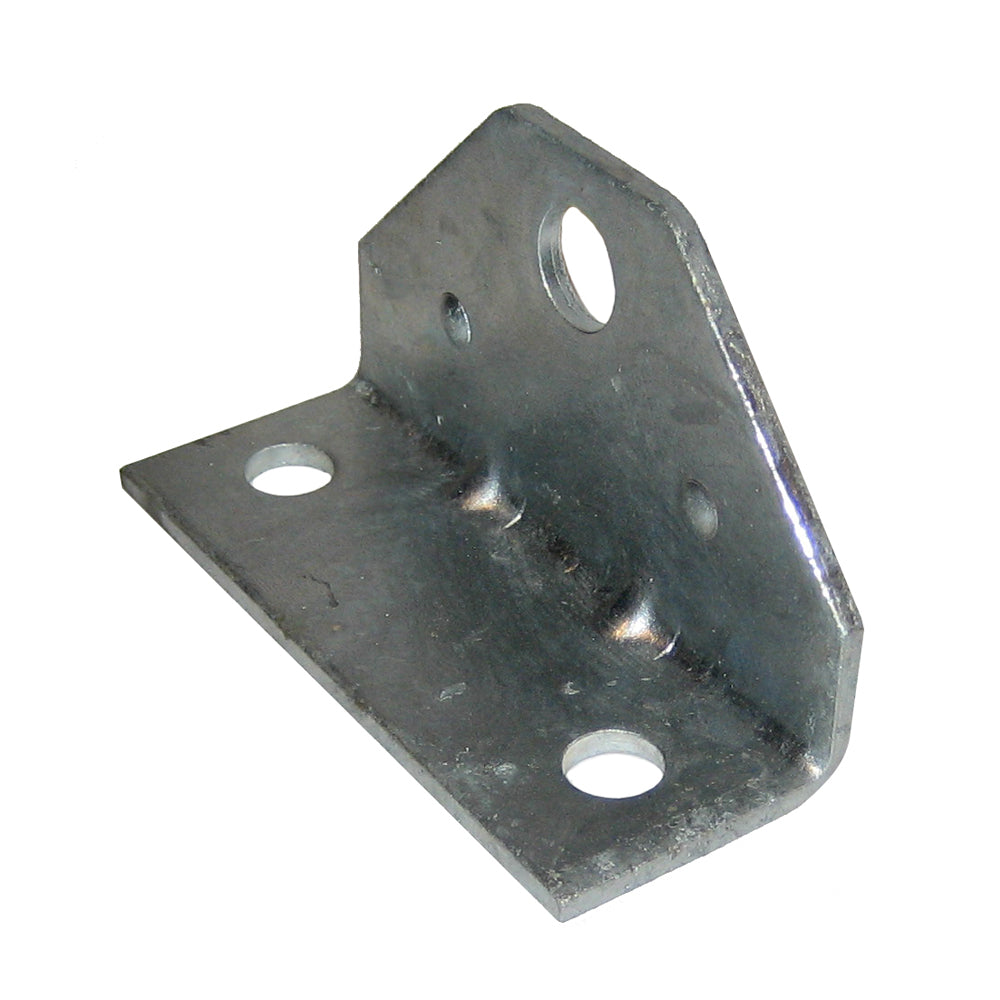

C.E. Smith Center Swivel Bracket - 2-1/2"

Galvanized swivel top bracket provides vertical and tilting adjustment for trailer bunks. Swivel Bracket for mounting Bunk Boards to Bolster Brackets. Bolt-on installation.

C.E. Smith Company 10200G40 Attributes

• Type: Swivel Bracket
• Length: 3-1/2 Inch
• Slot Length: Not Applicable
• Material: Steel
• Quantity: Single

C.E. Smith Company 10200G40 Features & Benefits

• 11 Gauge Galvanized Steel
• Provides Vertical And Tilting Adjustment For Trailer Bunks
• Made In USA
• Easy To Install
• Limited 1 Year Warranty

Center Swivel Bracket - 2-1/2"

Galvanized swivel top bracket provides vertical and tilting adjustment for trailer bunks. Swivel Bracket for mounting Bunk Boards to Bolster Brackets.

Features:

• Bolt-on installation

• Bunk flange holes 3/8" dia.

• Bunk flange 1-3/8" x 3-1/2"

• Swivel flange hole 1/2" dia.

• Swivel flange 2" tall x 3-1/2"

• 2-1/2" bunk flange hole centers

• 11 gauge galvanized steel

• Made in the USA

• Sold individually

Center rotatable bracket-2-1 / 2 galvanized rotatable top bracket can provide vertical and tilt adjustment for the double-layer trailer. Rotating bracket for mounting the double-layer plate to the bolster...
SKU: NVN-57759
MPN: 10200G40
UPC: 768296009151
