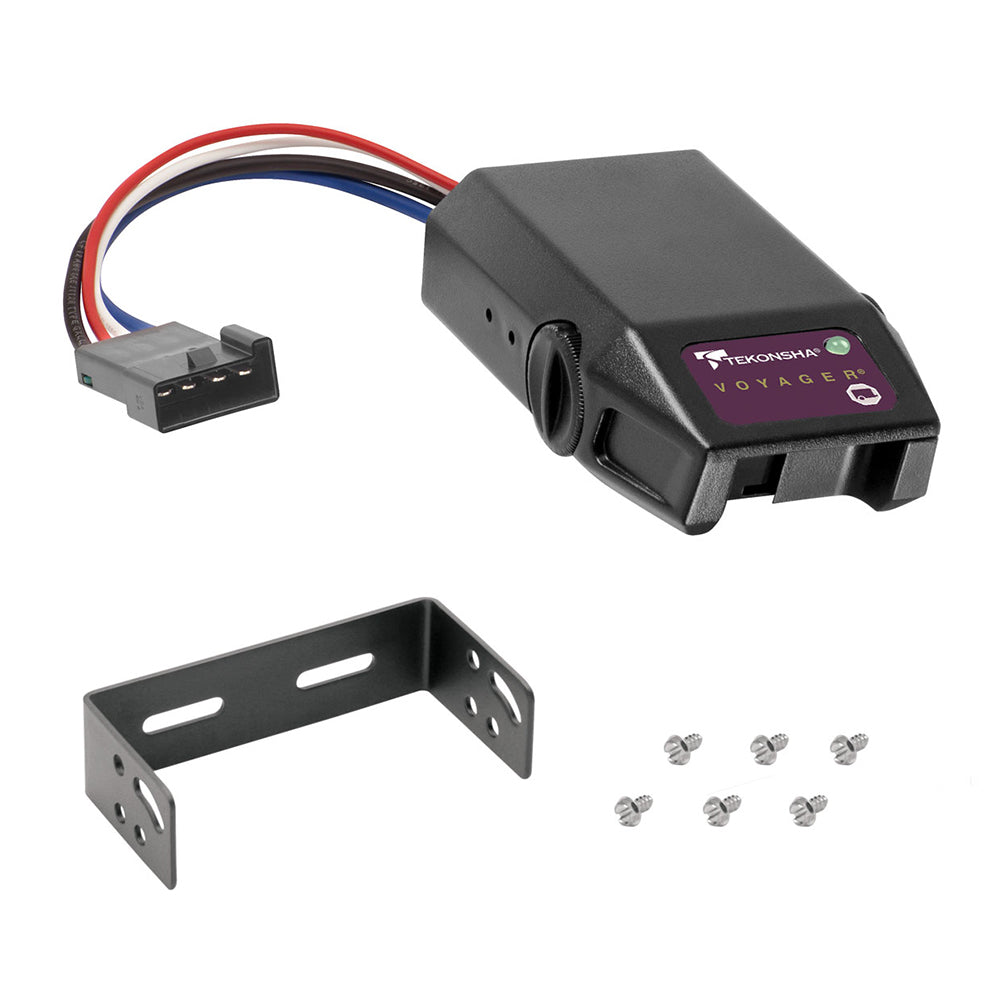

Tekonsha Voyager Electronic Brake Control Proportional

The Voyager® incorporates Tekonsha’s patented braking sensor and is the best value you’ll find for smooth and secure trailer braking. It’s compact size and features, like a bicolored LED brake monitor to assure a complete connection to trailer brakes and give an indication of relative braking power being applied make the Voyager® extremely versatile. Voyager® minimizes interference with tow vehicle electrical systems, uses a four wire hook up, has a broad setting range and is compatible with most any vehicle. The Voyager® has all the extra power you’ll need for trailers with 6 or 8 brake systems. The Voyager® is covered by a 5 Year limited warranty from the date of consumer purchase.

Tekonsha 9030 Attributes

• Accommodated Number Of Trailer Axles: 1 To 4 Axles
• Type: Proportional
• Brake Systems Type: 2 To 8 Brake System
• Reverse Function: Fully Functional In Reverse
• Leveling: Manual
• Smart Technology Compatible: No
• Display: LED Indicator
• With Trailer Disconnect Alarm: No
• With Wiring Harness: No
• Estimated Install Time (Hours): 1

Tekonsha 9030 Features & Benefits

• Broad Control Range Makes Setting Quick And Easy
• As Braking Power Is Applied, The LED Changes Color Gradually From Green To Red, To Indicate Relative Braking Power
• Advanced Electronics Minimize False Braking For Smoother Ride
• Electric Trailer Brake Control For Up To 4 Braking Axles
• Limited 5 Year Warranty

Tekonsha 9030 Installation Instructions

• 9030.pdf

Tekonsha 9030 Warranties

• 9030_WAR.pdf

Voyager Electronic Brake Control Proportional

The Voyager® incorporates braking sensor by Tekonsha and is the best value you will find for smooth and secure trailer braking. It is compact size and features, like a bi-colored LED brake monitor (to assure a complete connection to trailer brakes and give an indication of relative braking power being applied) make the Voyager® extremely versatile. Voyager® minimizes interference with tow vehicle electrical systems, uses a four wire hook up, has a broad setting range and is compatible with most any vehicle.

Features:

• Broad control range makes setting quick and easy
• As braking power is applied, the LED changes color gradually from green, completed circuit, to red, to indicate relative braking power
• Advanced electronics minimize false braking for smoother ride
• Electric trailer brake control for up to 4 braking axles
• Plug-N-Play feature allows quick and easy connection
• 5 year limited warranty

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Voyager Electronic Brake Control Proportional Voyager is equipped with Tekonsha's brake sensor, which is the best value you find for smooth and safe trailer braking. It...
SKU: NVN-74112
MPN: 9030
UPC: 783192005052
