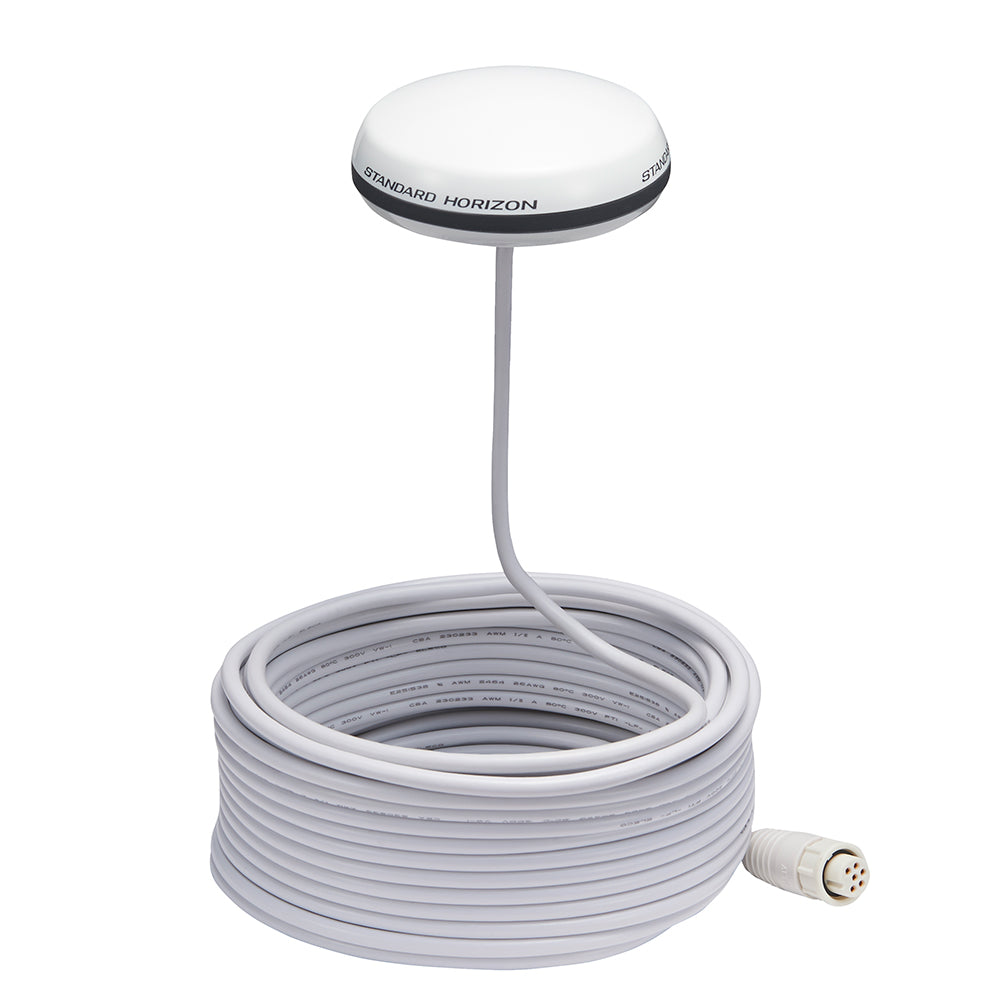

Standard Horizon SCU-31 GPS Smart Antenna

Standard Horizon leads the world's marine communications markets. Marine products require high reliability and functionality because ships must be operated safely even under severe weather conditions. The nature of marine communications is changing, such as the increased need for satellite-based location positioning systems and the adoption of GMDSS by certain countries. Because of this changing environment, we offer a wide spectrum of products. We are the leaders in communication equipment covering the HF to VHF frequency, the most important frequencies in marine communications. We also offer products for use in marine leisure activities such as for yachts and powerboats. Our products are used in the fishing and shipping industries as well as installed in the base stations. We will continue to provide highly reliable products employing the latest in technology to the various market segments. In the area of professional use marine communications, we have received high praise from various countries for providing total solutions to government agencies such as the Coast Guard. We are constantly developing and releasing innovative new products such as the fully waterproof portable transceiver and a multi function remote access microphone making it possible to operate a unit from a microphone.

Standard Horizon SCU31 Attributes

• Mounting Location: Pole Mount/ Flush Mount
• Color: White
• Temperature Range: -4 Degree Fahrenheit To 140 Degree Fahrenheit
• Dimensions: 4 Inch Diameter X 2 Inch Height
• Waterproof Rating: IPX7 Waterproof Rating
• Includes: 49 Feet Of Routing Cable/ RA6054200 Base Mount/ Three U20308020 M3x8 SUS Stainless Steel Screws

Standard Horizon SCU31 Features & Benefits

• Features 66 Channel GPS Antenna Supplied With 49 Feet Of Cable That Plugs Into Your Standard Horizon VHF Radio To Enable AIS And DSC
• GPS Antenna Delivers Accuracy Better Than Three Meters By Decoding The GPS Correction Signals From The Satellite Based Augmentation System
• Can Be Pole Or Flush Mounted
• Easy To Use
• No Supplier Warranty

Standard Horizon SCU31 Technical Bulletins

• SCU-31_EBA31X200_ENG_1611F-AS.pdf

SCU-31 GPS Smart Antenna

Features:

• 66 Channel WAAS GPS receiver

• 49' (15M) routing cable

• UV protected Ivory white color

• NMEA0183 Data input/output

• Rapid GPS acquisition time

• 3 year waterproof warranty

SCU-31 is a 66-channel WAAS GPS antenna, which is the perfect complement to any VHF radio without built-in GPS or GPS connection. The unit is equipped with 49...
SKU: NVN-62897
MPN: SCU-31
UPC: 788026149049
