EGIS Fuse Block ATO/JCase 8+2, M6 In With Cover Fuses Sold Separately
SKU: 1004312 · UPC: 850035199541 · MPN: 5015
★★★★★
4.7 · 0 reviews
Authorized dealer28% off
$38.99
$54.70Save $15.71
or 4 payments of $9.74 with Affirm
Low stock — 3 left — Ships today
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$38.99
02 · Overview
EGIS Fuse Block ATO/JCase 8+2, M6 In With Cover Fuses Sold Separately — Product description

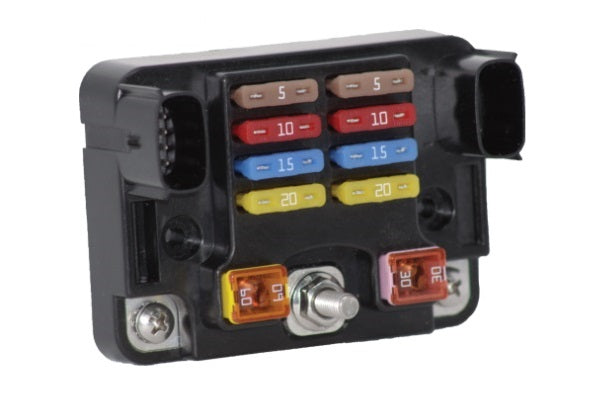

EGIS Mobile Marine Fuse Block ATO/Jcase 8+2 M6 in
Model: 5015- Compact Solution Combines Low Amp and High Amp Fuse Protection in One Product.
- Reduce Install Space and Total Installed Time/Cost, Two MX-150 Connectors for Low-Amp Outputs
- Two (2) High-Amp (20-50A) Outputs Supports All Necessary Circuit Protection Needs in One Product
- Protects Add-On Circuits from accidental short circuits to frame ground or battery negative, or from overload events.
| Total Continuous Current | 200 |
| Max Current Per ATO Fuse | 22 |
| Voltage range | 8-36vDC |
| Max Current Per LP L-Case Fuse | 50 |
| Max Current Per 4 POS MX-150 | 50 |
| Max Wire Gauge, MX-150 Connector | 14 AWG |
SKU: NVN-1004312
MPN: 5015
UPC: 850035199541
03 · The numbers
Technical specifications
| Brand | Siren Marine |
| Model | EGIS Fuse Block ATO/JCase 8+2, M6 In With Cover Fuses Sold Separately |
| SKU / MFR# | 1004312 |
Set product metafields under specs.* to populate this table.
