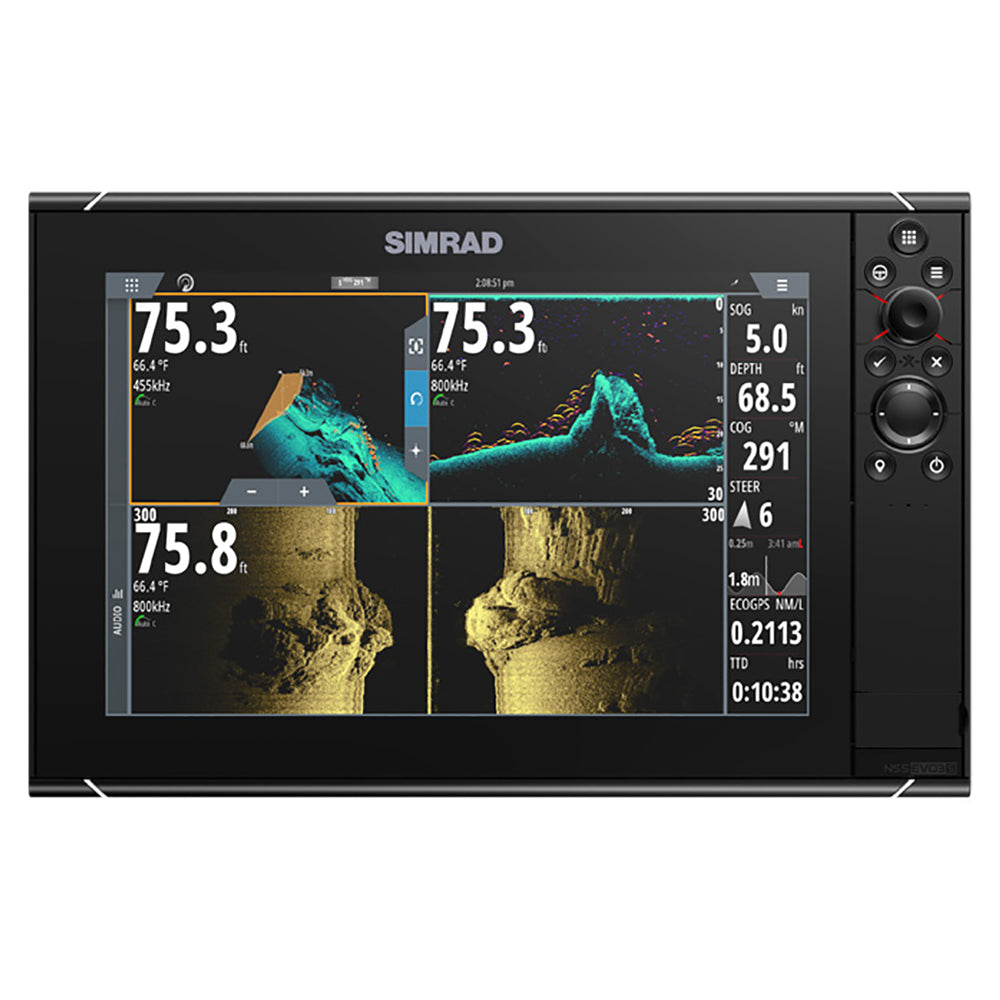

Simrad NSS12 evo3S Chartplotter/Fishfinder MFD
Simrad NSS12 evo3S Chartplotter/Fishfinder MFD — Product description
Unlock Next-Level Navigation with Lightning-Fast Processing
Imagine slicing through split-screen views or flipping between 3D charts and navigation perspectives in half the time. The powerhouse iMX8 processor delivers twice the speed of previous models, making every interaction feel effortless. Preloaded with detailed U.S. charts covering inland waterways and coastlines, plus a specialized C-MAP Reveal layer revealing Florida's ocean floor contours, you'll spot hidden fishing grounds before others even boot up.
This isn't just about charts—it's versatility. Seamlessly integrate with top providers like Navionics, CMOR, or Florida Marine Tracks for customized coverage tailored to your waters. Whether you're chasing offshore pelagics or mapping coastal structures, precision plotting becomes second nature.
Revolutionize Fish-Finding with Crystal-Clear Sonar Insights
Dive deeper into the water column with 1kW CHIRP sonar that tracks bottom detail and reveals fish arches with unmatched clarity. Dual transducer ports mean you can run multiple setups simultaneously—no more compromises on high-speed trolling or precise structure scanning.
Active Imaging paints picture-perfect images of wrecks, reefs, and bait balls, while ForwardScan peers ahead to map uncharted bottoms. In real-world scenarios, anglers report separating individual fish in heavy cover, turning frustrating days into limits. Paired with optional modules like the S5100 or Active Imaging 3-in-1, it handles everything from shallow bays to 3,000-foot depths.
SolarMAX IPS: Visibility That Conquers Any Light
Glare from the summer sun or polarized shades? No problem. SolarMAX IPS technology bonds the glass optically, eliminating fog and delivering 1,200 nits of brightness across ultra-wide angles. The 12-inch high-resolution touchscreen stays sharp from any helm position, even in rough seas.
Low-profile glass dash design blends seamlessly into modern consoles, while all-weather durability shrugs off extreme heat, shocks, and splashes (IPX6/7 rated). It's built for the relentless marine environment, ensuring your display performs when you need it most.
Intuitive Controls for Seamless On-Water Operation
The redesigned UI minimizes distractions with a dark theme that cuts light pollution across multi-screen setups. Expand the audio sidebar to full-page control, toggle chart orientations (North, Heading, Course up) with a single button, or glance at tide graphs without leaving your page.
Hybrid touchscreen and keypad hybrid shines in gloves or waves—precise enough for marking waypoints mid-fight, simple enough for family outings. Next-gen processor smooths every swipe, making complex data overlays feel intuitive.
Stay Connected: Wireless, Networked, and Future-Proof
Mirror your screen to phones or tablets via built-in WiFi and Bluetooth, pulling up radar overlays or sonar history from the comfort of the cabin. The Simrad app stores waypoints and spots for offline access, bridging on-water action with pre-trip planning.
NMEA 2000, dual Ethernet, NMEA 0183, and HDMI ports create expansive networks. Link engines for real-time fuel flow, autopilots for hands-free steering, or HALO radars for bird flocks signaling hot bites. Add FLIR thermal cams for night vision or WM-4 for SiriusXM weather overlays—complete awareness in one hub.
Rugged Build for Demanding Conditions
- Dimensions: Compact 352 x 225 x 98 mm footprint; bracketed for flexible installs.
- Operating Range: -15°C to +55°C; survives 100,000 cycles of 20G vibration.
- Power: Efficient 10-31.2V DC draw (max 28W); 5A fuse.
- GPS: 10Hz internal receiver with GLONASS support; 3m accuracy.
- Sonar Specs: 40-250kHz CHIRP, 455-800kHz imaging; 1kW RMS power.
Every connection—from dual sonar channels to video inputs—empowers customization without clutter.
Frequently Asked Questions
What makes the charting on this display faster than older models?
The iMX8 processor doubles page loading speeds, enabling instant split-screen combos, 3D views, and smooth navigation between perspectives.
Can I use multiple transducers with this unit?
Yes, dual sonar ports support connecting multiple transducers for CHIRP, Active Imaging, ForwardScan, and more on one display.
How does SolarMAX IPS improve visibility on the water?
It provides 1200 nits brightness, wide viewing angles, and optical bonding to eliminate fogging, ensuring clarity through polarized sunglasses or direct sun.
What wireless features does it offer?
Built-in WiFi and Bluetooth for screen mirroring to devices, app integration for waypoints, and wireless software updates via hotspots.
Is it compatible with radar and autopilot systems?
Absolutely—pairs with HALO radars, FLIR cameras, NMEA 2000 autopilots, and engine data for a fully integrated vessel network.
What's the maximum sonar depth capability?
Over 3000 feet with compatible transducers like the B175L, ideal for deep-water fishing.
How rugged is the display for marine use?
IPX6/7 waterproof, -15°C to +55°C operation, and shock/vibration tested to withstand harsh offshore conditions.
NSS12 evo3S Multi-Function Chartplotter/Fishfinder
Improved Charting experience with the iMX8 processor
With a 2X faster page loading time, choosing any split screen combination with views in 3D or Navigation perspective has never been easier. NSSevo3S™ features a preloaded US Chart with high-resolution inland and coastal coverage, plus a C-MAP® Reveal layer of the ocean floor in Florida.
In addition to the preloaded C-MAP chart, NSSevo3S is compatible with a wide range of charting providers, including C-MAP, Navionics®, CMOR and Florida Marine Tracks.
Enhanced Sonar with superior on-water performance
1kW CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance. Dual transducer ports offer the convenience of connecting multiple transducers to a single display.
Better-than-ever processing power ensures Active Imaging™ delivers picture-like views of fish-holding structure, and crystal clear views of the bottom ahead using ForwardScan® sonar.
SolarMAX™ IPS displays for high-definition views
Clear views under any lighting condition with SolarMAX™ IPS technology, and ultra-wide viewing angles to keep everything in sight, even when viewed through polarized sunglasses.
These all-weather screens have been engineered to withstand the heat of the summer sun and are optically bonded to prevent condensation or fogging within the display.
UI improvements
- A new, dark-themed wallpaper for less light pollution from a dash of multiple screens.
- The Audio side bar can now expand into a full page view.
- The addition of a chart orientation button to switch instantly between North up, Heading up and Course up without having to open the menu.
- The addition of a Tide Graph in the instrument bar to monitor tide changes without having to leave the existing page
Wireless connectivity for smartphones and tablets
Displays can be mirrored to compatible iOS and Android devices to access charts, radar, sonar, engine data and more. Wireless connectivity also enables online software upgrades through any internet hotspot, access to the latest features and accessory support.
The Simrad App can also be downloaded for added benefits – from device registration and manual downloads, to saving waypoints and your favorite fishing spots – accessible both on and off the water.
Radar Options
HALO® Pulse Compression radar systems can be added to negotiate crowded harbors, navigate safely in poor visibility, monitor distant weather squalls and even locate flocks of feeding birds in order to locate fishing spots.
FLIR IP Camera Support
Day and night situational awareness can be improved by adding a FLIR M232 thermal imaging camera. The M232 features a resolution of 320x240 and offers the ability to pan and tilt the camera to allow for 360 degree viewing while underway. The M232 distributes video over Ethernet allowing for both display and control from a NSSevo3S™.
WM-4 Receiver
Get up-to-date, detailed weather forecasts, weather radar, lightning, storm warnings, sea surface temperature, insight on favorable areas for particular fish species and more, when you complete your boat’s system with a WM-4 Receiver and a SiriusXM® Marine Satellite Weather subscription. Add audio to your Marine Weather or Fish Mapping* subscription and get access to more than 140 SiriusXM® radio channels at a discount.
Fast & Simple Networking and Connectivity
Industry-standard connectivity to create multi-display systems and link to all on-board electronics, engine and fuel monitoring in real-time, control of on-board sound systems and much more.
Includes system expansion with Simrad modules and accessories, advanced fish-finding tools such as deep water S5100, Active Imaging™ 3-in-1 or TotalScan™, increased situational awareness with legendary HALO® Pulse Compression radar, and automated control with a fully integrated Simrad autopilot.
In The Box:
- Display Unit
- Bezel Trim
- Documentation pack
- Power cable kit
- U-bracket kit
- Panel mounting kit
Connections:
- Ethernet - 2x Ethernet network
- Power - power, power control, and external alarm
- Video- composite video and NMEA0183
- NMEA 2000 - NMEA 2000 data
- Sonar CH1
- Sonar CH2
- HDMI - HDMI video output
NSS12 evo3S has a high-definition 12-inch display that can provide large picture views of charts, radar, sonar, etc. in all situations. Using the new iMX 8 high-performance processor with ultra-fast response time, you can control unprecedented built-in functions, ultra-wide viewing angles, and reliable touch or keyboard operation. Includes pre-loaded C-MAP chart.
SKU: NVN-81395
MPN: 000-15403-001
UPC: 9420064113576
Technical specifications
| Brand | Simrad |
| Model | Simrad NSS12 evo3S Chartplotter/Fishfinder MFD |
| SKU / MFR# | 81395 |
