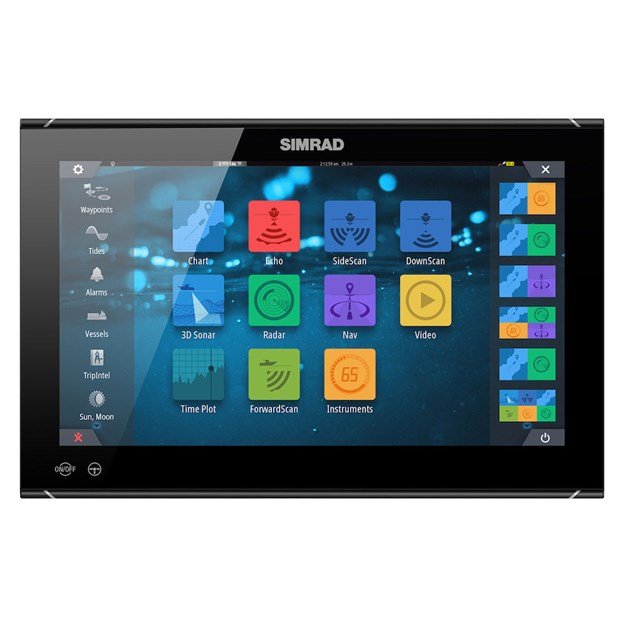

Simrad NSO evo3S 16" MFD Display Only

Transform your vessel's command center with the Simrad NSO evo3S 16-inch multifunction display, a powerhouse designed for serious mariners who demand precision, speed, and seamless integration. Whether you're navigating treacherous coastal waters, plotting long offshore passages, or managing a full suite of onboard systems from a single helm, this display-only unit elevates your boating experience to professional glass bridge standards. Its robust build and cutting-edge tech make it a favorite among yacht owners, fishing charters, and commercial operators seeking reliability without compromise.

Blazing-Fast Performance for Demanding Conditions

At the heart of the NSO evo3S lies an iMX 8 integrated six-core processor, engineered to handle complex tasks effortlessly. Picture this: instantly switching between detailed charts, live sonar scans, and radar overlays while underway in choppy seas—no lag, no hesitation. This processor delivers up to twice the CPU power of previous generations, ensuring smooth transitions even when juggling multiple data feeds. Custom helm layouts let you tailor the interface for fishing runs, cruising, or night watches, adapting on the fly to whatever the day throws at you.

Crystal-Clear Visibility in Any Light

The 16-inch widescreen boasts Full HD resolution (1920 x 1080 pixels) and an impressive 1200 nits of brightness, piercing through direct sunlight or cockpit glare. Wide viewing angles—80 degrees top/bottom and left/right—mean everyone on deck stays informed, and it performs flawlessly with polarized sunglasses. Opt for up to six-panel split-screen views to monitor charts, engine stats, AIS targets, and StructureScan 3D simultaneously, giving you the ultimate situational awareness.

Intuitive Touchscreen Mastery

Glide through menus with multi-touch precision, plotting waypoints, adjusting autopilot courses, or zooming radar sweeps as naturally as scrolling your phone. Pair it with optional keypads for glove-friendly operation in rough weather. This isn't just a screen—it's your direct link to radar, sonar, autopilot, and digital switching systems, streamlining helm operations for solo sailors or busy crews alike.

Sleek Glass Helm Integration

Low-profile glass styling blends into modern or classic helms, concealing powerful internals behind a slim facade. Dimensions of 15.75 x 10.24 x 3.27 inches fit flush-panel mounts or optional brackets, with an IPX6-rated front for spray and washdown resistance. Built tough for -15°C to +55°C environments, it shrugs off vibration and shock, ready for real-world marine abuse.

Unmatched Connectivity Ecosystem

Stay linked with built-in WiFi and Bluetooth for mirroring to tablets or phones, wireless updates, and remote control. Three Ethernet ports, NMEA 2000, NMEA 0183, and J1939 open doors to vessel-wide networks—engine data, Halo radars, Broadband radars, external sonar modules, AIS receivers, and third-party sensors all integrate seamlessly. HDMI in/out and composite video handle PC feeds or camera inputs, while microSD and USB support charts like Navionics or C-MAP, waypoints (up to 6000), and routes.

Note: External GPS is required for positioning, making this modular unit perfect for scalable setups.

Complete Kit for Quick Setup

• 16-inch display unit
• Suncover for glare protection
• Silver and black bezels for custom looks
• Power cable and connector block
• RJ45 to 5-pin Ethernet adapter
• NMEA 0183 and 2000 cables
• Mounting hardware and retention kits
• Documentation pack

Key Specifications at a Glance

Category	Details
Display	16-inch IPS TFT, 1920x1080, 1200 nits, optically bonded
Processor	iMX 8 six-core
Power	10-32 V DC, max 40W
Connectivity	3x Ethernet, NMEA 2000/0183, WiFi, Bluetooth, HDMI, Video I/O
Dimensions (W x H x D)	15.75 x 10.24 x 3.27 inches
Weight	8.6 lbs
Waterproofing	IPX6 (front, panel-mounted)
Operating Temp	-15°C to +55°C (5°F to 131°F)

Frequently Asked Questions

Does the Simrad NSO evo3S 16-inch MFD include built-in GPS?

No, it requires an external GPS receiver for positioning data, allowing flexibility in choosing high-performance antennas for your setup.

Can this display integrate with sonar and radar systems?

Yes, it supports Halo, Broadband, and HD radars via Ethernet/NMEA, plus external sonar modules or networked MFDs for StructureScan 3D and beyond.

Is the screen visible in direct sunlight or with polarized lenses?

Absolutely—1200 nits brightness and wide-angle IPS technology ensure clear views in harsh light and through polarized sunglasses.

What chart formats does it support?

Compatible with Insight, Navionics, C-MAP MAX-N/N+, and NV Digital charts via microSD, plus world basemap included.

How many screens can I network together?

Scale up to multiple displays across your vessel via Ethernet, creating a unified glass bridge with shared data and custom layouts.

Does it support engine monitoring?

Yes, J1939 and NMEA protocols pull real-time data from engines, fuels systems, and more for comprehensive monitoring.

Equip your boat with the NSO evo3S and captain with confidence—where every detail is designed for the sea's toughest challenges.

Every NSO evo3S display features a iMX 8 integrated six-core processor delivering category leading response times for incredibly smooth screen transitions. With up to twice the CPU performance, you have instant access to the information you need, as you need it, no matter the conditions. Create your own custom helm layouts to suit any activity, and switch seamlessly between layouts in an instant. Low-profile glass helm styling conceals and protects NSO evo3’s powerful core, and complements any helm design from ultra-modern to timeless classic. NSO evo3S delivers the ultimate view with an ultra-bright display, available in 16, 19, or 24 Inch widescreen sizes. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarized sunglasses. Experience stunning clarity with Full HD resolution, and the option to combine up to six panels in a split-screen layout. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar at a touch. Built-in wireless connectivity links NSO evo3S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000 ®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, and integration with an extensive range of 3rd party technologies.

Simrad 0015047001 Attributes

• Display Size: 16 Inch
• Resolution: 1920 X 1080 Pixels
• Interface: Touchscreen
• Dimensions: 15.75 Inch Width X 10.24 Inch Height X 3.27 Inch Depth
• Waterproof: IPX6 Rating Waterproof
• Sensor Compatibility: NMEA 2000 Compatible

Simrad 0015047001 Features & Benefits

• IMX 8 Integrated Six-Core Processor For Superior Performance
• Ultra-Sharp, Full HD 16 Inch Display
• Seamless Touchscreen Control Of Your Entire Connected SIMRAD ® System
• Low-Profile Glass Helm Styling
• Extended Visibility With Six-Panel Split Screen Option
• Connect With Smartphones, Tablets, And Internet Hotspots
• Integrate With An Extensive Range Of 3rd Party Technologies
• Limited 2 Year Warranty

Simrad 0015047001 Installation Instructions

• NSO-evo3S-MPU_OM_EN_988-12489-002_w.pdf
• NSO-evo3S_IM_EN_988-12478-001_w.pdf
• NSO-evo3S_OM_EN_988-12465-002_w.pdf
• NSO-evo3S_QG_01_EN_988-12476-001_w.pdf
• NSO-evo3S_MPU_QG_01_EN_988-12500-001_w.pdf
• NSO-evo3S-MPU_IM_EN_988-12502-002_w.pdf

Simrad 0015047001 Warranties

• Simrad-Professional-Global-Warranty-Policy-2016-v2.pdf

Simrad 0015047001 Technical Bulletins

• NSO-evo3_evo3S_Zeus3_Zeus3S-GH_16-MT_EN_988-12008-003_w.pdf

NSO evo3S 16" MFD Display Only

Ultimate Clarity

NSO evo3S delivers the ultimate view with an ultra-bright 16-inch display, ideal for both indoor and outdoor installations. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. See more than ever with Full HD resolution, and the option to combine up to six panels in a split-screen layout.

Intuitive Control

A responsive, multi-touch display places control of your on-board electronics at your fingertips. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar with a touch. A range of optional keypads add classic controls, perfect for fine adjustments or use in rough conditions.

Swift Response

Every NSO evo3S display features an integrated six-core processor for ultimately smooth response, from charting to StructureScan® 3D imaging. Enjoy swift access to the information you need, as you need it, whether you’re cruising the open ocean or carefully navigating a crowded harbour.

Glass Helm Style

NSO evo3S glass helm systems offer the perfect combination of form and function. Create your own custom helm layouts to suit any activity, and switch seamlessly between those layouts in an instant. Low-profile glass helm styling complements any helm design, from ultra-modern to timeless classic.

Fully Connected

Built-in wireless connectivity links NSO evo3S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, engine integration, and much more.

Features:

• Ultra-bright, Full HD 16-inch display
• Easy touchscreen control of your entire Simrad system
• Integrated six-core processor for ultimate performance
• Low-profile glass helm styling
• See more than ever with six-panel split screen option
• Connect with smartphones, tablets, and internet hotspots

In The Box:

• Display unit
• Suncover
• Bezels
• Power cable and connector block
• RJ45 to 5-pin Ethernet adapter cable
• NMEA 0183 connector block
• Documentation pack
• Cable retainer kit
• Panel mounting kit

Connections:

• NMEA 2000 - NMEA 2000 data
• J1939 - J1939 engine data
• USB - mouse, keyboard or mass storage
• NETWORK 1-3 - Ethernet network
• SD - microSD card reader
• HDMI OUT - HDMI video output
• VIDEO IN - composite video input
• HDMI IN - HDMI video input
• NMEA 0183 - NMEA 0183 data
• POWER - 12 - 24 V DC input, external alarm and power control

Simrad NSO evo3S 16" MFD

Display Only

Model: 000-15047-001

• iMX 8 Integrated six-core processor for superior performance
• Ultra-sharp, Full HD 16-inch display
• Seamless touchscreen control of your entire connected SIMRAD® system
• Low-profile glass helm styling
• Extended visibility with six-panel split screen option
• Connect with smartphones, tablets, and internet hotspots

Every NSO evo3S display features the new iMX 8 integrated six-core processor delivering category leading response times for incredibly smooth screen transitions. With up to twice the CPU performance, you have instant access to the information you need, as you need it, no matter the conditions. Create your own custom helm layouts to suit any activity, and switch seamlessly between layouts in an instant. Low-profile glass helm styling conceals and protects NSO evo3’s powerful core, and complements any helm design from ultra-modern to timeless classic.

NSO evo3S delivers the ultimate view with an ultra-bright 16-inch display, ideal for both indoor and outdoor installations. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. Experience stunning clarity with Full HD resolution, and the option to combine up to six panels in a split-screen layout. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar at a touch.

Built-in wireless connectivity links NSO evo3S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, engine integration, and much more.

Specifications

Approvals
Compliance	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Autopilot
Manouevres / Turn Patterns	U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Steering Modes	Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Connectivity
Bluetooth	Internal
Ethernet	3 x 100 Mbits/s ports, RJ 45. (Adapt to 5 pin yellow using adapter cable 000-11246-001)
NMEA 0183	2x NMEA0183 (IEC61162-1)2x NMEA0183-HS (IEC61162-2)
NMEA 2000	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	HDMI Video in from a PC
Video	2x composite video (BNC)1x high definition video (1080p, HDCP 1.4, HDMI-A)1x high definition video output (1080p, no HDCP, HDMI-A)
WiFi	Internal 802.11b/g/n
Display
Backlight Color	White
Resolution	1920x1080
Screen Brightness	1200 nits
Size and Type	IPS 15.6" optically bonded TFT
Viewing Angles	80° top/bottom, 80° left/right
Electrical
Power Consumption, max.	40 W +- 4 W
Recommended Fuse Rating	6 A @ 12 V DC
Supply Voltage	10 - 32 V DC
Environment
Operating Temperature Range	-15°C to +55°C (5° F to 131° F)
Shock and Vibration	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Storage Temperature Range	"-20°C to +60°C (4°F to 140°F)
Waterproof rating	IPX6 on the font (when panel mounted correctly with only the front exposed) Rear not waterproof
MFD
AIS	Receive AIS data over NMEA 2000 Or NMEA 0183 (IAS is not bridged to N2K)
Autopilot	Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
Cartography included	World basemap
Cartography supported	Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Digital Switching	BEP C-Zone, Naviop
External Storage	1 Micro SD slot, or use USB Dashmount Card reader MI10 with 2x Micro SD slots. max. 32GB each. >32 GB format to NTFS
GPS	External GPS required
Internal Storage	16 GB
Multimedia	via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
Radar (inc. compatibility)	Halo, Broadband, HD Radars
Sonar (inc. compatibility)	External echo sounder module or connection to an MFD with built in echo sounder that can share sonar over Ethernet is required.
Weather	SiriusXM via WM-3 (USA only), GRIB
Waypoints, Routes, Tracks	6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Compass Safe Distance - Metric, imperial	50 cm (19.7")
Physical
Dimensions (W x H x D)	400.1 x 260 x 83 mm (15.75 x 10.24 x 3.27")
With bracket	474.9 x 307.5 x 222.5 mm (18.7 x 12.1 x 8.76")
Mounting Type	Panel or Bracket mount (use optional heavy duty bracket 000-13547-001
Weight	3.9 kg (8.6 lbs.)
Other
Warranty Period	2 Years
Interface	Touch screen, OP40 or OP50 controller via NMEA 2000

What's in the Box:

• NSO 16 evo3s Display
• Protective Suncover for Simrad 16" Monitors
• Silver and Black bezels
• RJ45M-5 pin Female
• Rear mount bracket
• Cable Retention bracket
• NMEA2000 Power T
• 6' NMEA2000 Cable
• TR-120-Kit Terminator Kit
• 4- Way NMEA2000 Cable

Build your ultimate navigation system around NSO evo3S. The new iMX 8 high-performance processor ensures quick response to every command you make, while the full HD display provides you with amazing clarity. Connect with GPS, radar, sonar, keyboard controller and other accessories to create an ideal whole ship system.
