Simrad S5100 Module Redefining High-Performance Sonar
Simrad S5100 Module Redefining High-Performance Sonar — Product description
Unlock Crystal-Clear Views Beneath the Waves with Triple-Channel Power
Imagine scanning the ocean depths with unmatched precision, spotting schools of baitfish huddled near thermoclines or individual trophy pelagics cruising at varied levels—all on one screen without compromise. The triple independent CHIRP channels of this sonar module transform your boat's electronics into a relentless fish-tracking powerhouse. Offshore anglers chasing marlin, tuna, or swordfish swear by its ability to maintain bottom lock even in the murkiest conditions, delivering noise-free images that reveal every detail from surface runners to bottom-dwellers over 10,000 feet down.
What sets it apart? Traditional sonar often forces tough choices between depth coverage and resolution. Here, you blend ultra-low frequencies for deep structure with medium and high bands for crisp separation of tightly packed targets. Adjust beams from wide sweeps for quick searches in shallows to narrow probes for pinpoint accuracy, ensuring no fish slips through undetected.
Master Multiple Depths Simultaneously
Run three distinct sonar setups at once: pair a low-frequency channel for probing wrecks at extreme depths, a medium for mid-water columns teeming with squid, and high for shallow bait balls. Split-screen your multifunction display to monitor all in real-time, freeing you to focus on the bite rather than tweaking settings mid-fight.
- Frequency flexibility from 28 kHz ultra-low to 250 kHz high for tailored targeting
- Detect subtle thermoclines that concentrate gamefish
- Separate small or closely grouped fish with superior target resolution
- Wide-angle options expand your search cone, ideal for pelagic hunters in open water
Pro tip for serious offshore runs: Combine with Airmar wide-beam transducers to blanket vast areas, slashing time spent hunting and boosting hookups on pressured grounds.
Seamless Integration and Rugged Reliability
Plug-and-play simplicity meets battle-ready toughness. Three dedicated 9-pin ports accept single or dual-channel transducers effortlessly, while Ethernet networking links to your Simrad ecosystem for fluid data sharing. Built for the harsh marine world, it shrugs off spray with IPX5 waterproofing and thrives from chilly 5°F mornings to sweltering 131°F afternoons.
Power it via 12-24V systems with low draw (as little as 23W idle), and mount it bulkhead or desktop style without fuss. Compatible with NSS evo3/2 series, NSO evo2, and S2000 fishfinders, it elevates any setup without overhauling your helm.
Technical Edge for Competitive Anglers
| Specification | Details |
|---|---|
| Dimensions | 13.4" L x 3.9" W x 9.8" H (340 x 100 x 250 mm, excluding connectors) |
| Frequency Range | 28-250 kHz CHIRP |
| Power Supply | 12-24V DC (10.4-31.2V) |
| Power Consumption | 23W min / 85W max |
| Networking | 1x Ethernet (100 Mbps) |
| Max Depth | 3,000m / 10,000ft (transducer dependent) |
| Operating Temperature | 5°F to 131°F |
| Waterproof Rating | IPX5 |
What's Included for Quick Setup
- Main sonar module
- Power cable (4-pin)
- 15ft Ethernet cable
- 7-pin to 9-pin transducer adapter
Everything you need to get scanning right away—just add your transducers and dive in.
Frequently Asked Questions
Can this sonar module handle three different transducers at once?
Yes, its three independent 9-pin ports support single-channel transducers or a mix with dual-channel ones, letting you customize coverage for shallow, mid, and deep water simultaneously.
What's the benefit of CHIRP over traditional sonar?
CHIRP sweeps frequencies for sharper images, better noise rejection, and clearer fish arches, especially for distinguishing bait from keepers at any depth.
Does it work with older Simrad displays?
It integrates seamlessly via Ethernet with NSS evo2/evo3, NSO evo2, and S2000 series, enhancing legacy setups without major changes.
How deep can it really go?
Up to 10,000 feet or 3,000 meters, depending on your transducer choice and water conditions—perfect for bluewater canyon fishing.
Is installation straightforward for DIY boat owners?
Absolutely—plug-and-play connectors, included cables, and compact size make it a breeze. Secure it bulkhead-style, wire power, network it, and you're live.
Can I use wide-angle transducers with it?
Yes, pairs ideally with Airmar's wide-angle CHIRP series for broader upper-water coverage, speeding up searches for surface-oriented species like mahi-mahi.
Will it track bottom in rough seas?
Advanced processing ensures unwavering bottom lock and clutter-free views, even in choppy conditions common to offshore trolling.

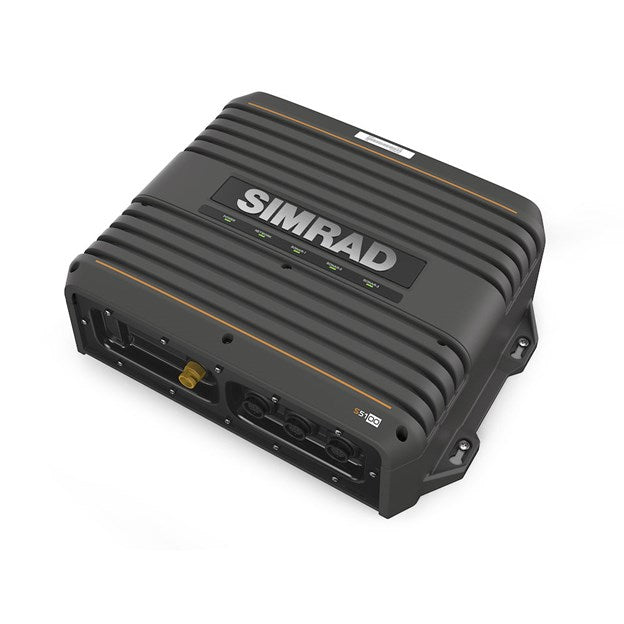

Simrad S5100 Sounder ModuleThree Channel CHIRP Fishfider for NSO and NSS SystemsThe S5100 high-performance CHIRP sonar module features three fully independent channels able to deliver high-resolution sonar coverage across multiple depth ranges, precision-focused for offshore sportfishing anglers. Simultaneous split-screen viewing capability puts you in complete control of the water column, while advanced processing technology allows you to fish with noise-free clarity at all depth ranges without ever losing bottom depth tracking. Mix and match your favourite transducer coverage and transmit power for wide and narrow beam-widths to reveal more fish, detecting small and tightly spaced fish and identifying thermoclines; or adjust specific CHIRP frequencies from 28 to 250 kHz to precisely target specific depths producing big, crisp arches with clear target separation.The S5100 is Simrad's first sounder module to feature three fully independent sonar channels, delivering true simultaneous coverage of up to three different depth ranges with uncompromising performance at every range. Connect three single-channel transducers, or pair one dual-channel and one single-channel, to create the perfect sonar coverage for the areas you fish and the species you target.CHIRP sonar uses frequency-swept pulses to provide improved target resolution and noise rejection compared to traditional single-frequency sonar. With the S5100's advanced CHIRP technology, you'll see clear to the bottom with no mid-water noise or clutter.The Simrad S5100 is compatible with Airmar's wide-angle CHIRP series of transducers. These are a perfect fit for targeting pelagic species, with enhanced coverage of the upper water column. Wide-angle transducers are also useful in shallow water, where traditional narrow beam angles can provide limited bottom coverage. A wider coverage area not only speeds your search but means individual fish targets are easier to see.
Simrad 0013260001 Attributes
- Size: 13.4 Inch Length X 3.9 Inch Width X 9.8 Inch Height
- Frequency: 28/250 kHz
- Input Voltage: 12 To 24 Volt
- Temperature Range: 5 Degree Fahrenheit To 131 Degree Fahrenheit
- Waterproof: IPX5 Rating Waterproof
- Includes: 15 Feet Ethernet Cable/ 4-Pin Power Cable/ 7-Pin Transducer To 9-Pin Sonar Adapter
Simrad 0013260001 Features & Benefits
- Combine any three frequency ranges to target multiple depths, including Ultra-Low, Low, Medium, or High CHIRP
- Compatible with wide-angle CHIRP transducers for greater coverage of the water column
- Simultaneous split-screen viewing of multiple depth ranges on your display
- Maximum depth of 3,000 metres / 10,000 feet (transducer dependent)
- Easy to install with three plug-and-play 9-pin transducer connectors
- Compatible with Simrad NSS evo3 and NSS evo2 multifunction displays, NSO evo2 systems, and S2000-series fish finders
- Limited 2 Year Warranty
Simrad 0013260001 Installation Instructions
Simrad 0013260001 Warranties
S5100 Module Redefining High-Performance Sonar
The S5100 high-performance CHIRP sonar module delivers true simultaneous coverage of up to three different depth ranges, at high resolution, making it the perfect sonar solution for offshore sportfishing anglers.
Simultaneous split-screen viewing capability puts you in complete control of the water column; while advanced processing technology allows you to fish with noise-free clarity at all depth ranges without ever losing bottom depth tracking.
Mix and match your favorite transducer coverage and transmit power for wide and narrow beam-widths to reveal more fish, detecting small and tightly spaced fish and identifying thermoclines - or adjust specific CHIRP frequencies from 28 to 250 kHz to precisely target specific depths producing big, crisp arches with clear target separation.
Features:
- 3 fully independent sonar channels deliver high-resolution coverage
- Noise-free clarity at all depth ranges
- Combine any three frequency ranges to target multiple depths, including Ultra-Low, Low, Medium, or High CHIRP
- Compatible with wide-angle CHRIP transducers for greater coverage of the water column
- Simultaneous split-screen viewing of multiple depth ranges on your display
- Maximum depth of 3,000 meters/10,000 feet (transducer dependent)
- Easy to install with three plug-and-play 9-pin transducer connectors
- Compatible with Simrad NSS evo3 and NSS evo2 multifunction displays, NSO evo2 systems and S2000-series fishfinders
High-performance CHIRP sonar Simrad S5100 high-performance CHIRP module provides three independent sonar channels in three different depth ranges, each with unparalleled performance. Just connect three single-frequency transducers, or pair dual-channel and single-channel transducers, you can get the best coverage and clearer target interval, and easily determine the fish species. The use of CHIRP wide-angle sensor provides users with greater coverage of the water column, ensuring that you see the most accurate details below. To view the split-screen sonar at the same time, each user can customize the configuration of the split-screen sonar to suit your sounder needs. Since all three sonar channels are different, you can view different frequency ranges in real time on one display, allowing you to observe the contours of the seafloor and schools of fish excellently. Depending on the sensor you choose to use, you can reach a depth of 10,000 feet. (3,000 meters) make it an ideal CHIRP module choice for inshore and offshore fishermen. Now, it is easier than ever to spot, identify and spot smaller fish in narrow areas, and see the ever-changing hotbed. Your Simrad S5100 CHIRP module can take fish discovery to a whole new level. Compatible with Simrad NSS evo3, NSS evo2, NSO evo2 and S2000 series fish finder, this module provides plug-and-play connectivity and is faster than before.
SKU: NVN-65342
MPN: 000-13260-001
UPC: 9420024154595
Technical specifications
| Brand | Simrad |
| Model | Simrad S5100 Module Redefining High-Performance Sonar |
| SKU / MFR# | 65342 |
Set product metafields under specs.* to populate this table.
