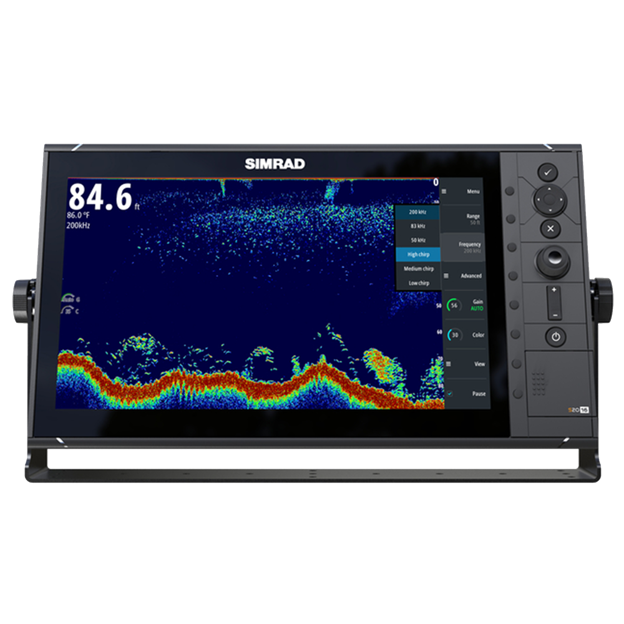

Simrad S2016 16" Fishfinder w/Broadband Sounder™ Module & CHIRP Technology - Wide Screen
Simrad S2016 16" Fishfinder w/Broadband Sounder™ Module & CHIRP Technology - Wide Screen — Product description
Unlock Crystal-Clear Underwater Insights with Advanced Sonar Tech
Imagine scanning vast ocean depths with precision that turns guesswork into guaranteed catches. The Simrad S2016 fishfinder equips serious anglers and commercial operators with integrated CHIRP technology and a Broadband Sounder module, delivering sonar images that reveal fish schools, structure, and bottom contours like never before. Unlike basic single-frequency sonars, CHIRP sweeps across frequencies for sharper arches, better separation between targets, and noise-free clarity—even in challenging deep water or cluttered environments.
This dedicated 16-inch widescreen powerhouse thrives on coastal runs or offshore adventures, helping you pinpoint bait balls amid thermoclines or track wrecks teeming with trophy species. Its plug-and-play transducer compatibility means you can upgrade without ripping out old gear, saving time and hassle during installs.
CHIRP and Broadband Sounder: The Game-Changers for Target Detection
At the heart of the S2016 lies Simrad's single-channel Broadband Sounder with CHIRP capability, supporting frequencies from 28-38 kHz up to 130-210 kHz. This isn't just hype—CHIRP pulses transmit across a broad spectrum, creating vivid, high-resolution returns that traditional 50/200 kHz setups can't match. You'll see individual fish in tight schools, distinguish bait from keepers, and map subtle bottom changes that hold lunkers.
- Superior Depth Penetration: Reach up to 3,000 meters (transducer-dependent) with 1 kW RMS power, ideal for bluewater pursuits.
- Retrofit Ready: Works seamlessly with Simrad/Airmar blue 7-pin transducers or adapters for legacy setups—add CHIRP without new hardware.
- Ping Speed Excellence: Rapid refresh rates keep up with fast boat speeds, ensuring no targets slip by.
Pair it with vertical heave compensation (via NMEA 2000 satellite compass like HS60/HS70), and rough seas become a non-issue. Wave motion won't skew your bottom lock, letting you maintain accurate depth readings when others are bouncing.
Expansive 16-Inch Display for Unrivaled Situational Awareness
The 16-inch LED-backlit TFT LCD (1366 x 768 pixels) in widescreen format gives you a massive vertical view of the water column—perfect for scrolling through hours of sonar history without constant zooming. At 400 cd/m² brightness, it punches through direct sunlight, while wide viewing angles (160° x 110°) let crewmates chime in from any angle.
Operation feels instinctive with eight direct-access keys and a rotary knob. Gloved hands? No sweat. Rough conditions? Tactile buttons deliver reliable feedback. Customize views on the fly:
- White Line: Sharp bottom separation for quick structure ID.
- White Marker: Highlight key echoes in white for instant focus on fish.
- Color Erase: Wipe out clutter to spotlight what's important.
HDMI mirroring extends the view to secondary screens, like a helm monitor or external TV, without extra units.
Built Tough for Marine Realities
IPX7 waterproofing seals it from all sides, standing up to spray, rain, or the occasional rogue wave. Operating from 5°F to 131°F, it's ready for any climate. Choose flush mounting for sleek new builds or the included gimbal bracket for exposed pilothouse spots. Compact dimensions (19.9" W x 2.4" D x 10.2" H, 8.8 lbs) fit tight consoles without compromise.
Power it reliably with 12-24V DC (10.8-31.2V range), drawing just 20W—efficient for battery-conscious setups. Compass-safe to 25.6 inches.
Seamless Integration into Your Vessel's Electronics Suite
Ethernet shares sonar data with Simrad multifunction displays like NSO/NSS evo2, turning the S2016 into a sonar hub. NMEA 0183/2000 ports enable waypoint sharing, alarms, and more. Record logs to full-size SD cards for post-trip analysis via Insight Genesis custom charts or BioBase vegetation maps—boost your next outing with historical intel.
Expand power with optional S5100 modules for dual-channel or high-wattage transducers, scaling as your needs grow.
Technical Specifications at a Glance
| Category | Details |
|---|---|
| Display | 16" Widescreen LED-backlit Color TFT LCD, 1366x768, 400 cd/m² |
| Sonar | CHIRP/Broadband, Max Depth 3,000m, Frequencies: 28-210 kHz ranges, 1kW RMS |
| Connectivity | Ethernet, NMEA0183 (2x), NMEA2000, HDMI Out, SD Slot |
| Environmental | IPX7 Waterproof, -15°C to 55°C Operating |
| Power | 10.8-31.2V DC, 20W Consumption, 3A Fuse |
Ready-to-Install Kit
- S2016 16" Echosounder Unit
- Gimbal Bracket Mounting Kit
- Flush Mount Dash Kit
- 4-Pin Power Cable
- Sun Cover
- Edge Bezels
Frequently Asked Questions
What transducers work with the Simrad S2016 fishfinder?
It supports Simrad and Airmar transducers with blue 7-pin connectors out of the box, plus adapters for many third-party and legacy models. CHIRP works with both dedicated and single-frequency types for versatile compatibility.
Does the S2016 support vertical heave compensation?
Yes, when connected to a compatible NMEA 2000 satellite compass like the HS60 or HS70, it corrects for boat motion in waves, improving bottom tracking accuracy.
Can I network the S2016 with other Simrad displays?
Absolutely—Ethernet shares sonar data with NSO evo2 and NSS evo2 systems, while NMEA ports enable waypoint sharing and more across your network.
Is the display suitable for outdoor use in bright sunlight?
Yes, with 400 cd/m² brightness and anti-glare properties, it performs well in direct sun. The included sun cover adds extra protection.
How do I record sonar logs for custom charts?
Insert a full-size SD card via the front hatch to capture sonar history. Upload to services like Insight Genesis for personalized contour maps.
What mounting options are available?
Both bracket (gimbal included) and flush mounting kits are provided, suiting pilothouse, helm, or open installations.
Is the S2016 waterproof and durable for rough seas?
IPX7 rated from all sides with watertight connectors, tactile keys for gloved/wet use, and rugged build for marine environments.
integrated CHIRP Echosounder: S2000 series displays feature a built-in echosounder module with CHIRP technology to deliver higher resolution, improved target separation, and greater image clarity than traditional sonar. Simrad technology makes CHIRP available not only for special-purpose CHIRP transducers, but also for traditional single-frequency transducers. This offers a cost-effective upgrade to CHIRP technology by installing an S2000 series fish finder for use with your existing transducer. Installation is simple thanks to a plug-and-play port for Simrad and Airmar transducers with blue seven-pin connectors, and a range of optional adapters to enable easy retrofit to other transducer types. 16 Inch Widescreen Display: The S2016 offers a combination of excellent vertical detail and a lengthy on-screen echosounder history, with a high-definition 16 Inch widescreen display. This reduces your need to zoom or scroll, while making it easy to backtrack to promising areas. Direct-access menu keys beside the display provide intuitive control of on-screen menu options, enabling one-button access to key settings and features. With reliable, long-life operation and clear tactile feedback, the S2016’s large buttons are suitable for use in rough seas, while travelling at speed, and with wet or gloved hands. An HDMI output lets you mirror the built-in screen on a secondary display, delivering echosounder visibility at a second station without a second fish finder.
Simrad 12187001 Attributes
- Display Size: 16 Inch LCD
- Display Resolution: 1366 X 768 Pixels
- Overall Dimensions: 19.9 Inch Width X 2.4 Inch Depth X 10.2 Inch Height
- Sonar Compatibility: CHIRP Transducer
- Mount Type: Bracket Mount/ Flush Mount
- Used To: Dedicated Displays And Marking Waypoint Chart Plotter
- Interface: Keypad/ Rotary Knob
- Waterproof: IPX7 Rating Waterproof
- Power Supply Voltage: 12 To 24 Volt
- Weight: 8.8 Pound
- Screen Brightness: 400 cd/m2
- Viewing Angle: 160 X 110 Degree
- Fuse Rating: 3 Amp
- Operating Temperature Range: 5 To 131 Degree Fahrenheit
- Compass Safe: 25.6 Inch
- Cartography Included: No
Simrad 12187001 Features & Benefits
- Integrated 16 Inch Portrait Display
- High Brightness Ideal For Outside Installation
- High Depth Penetration And Ping Speed
- Simple Operation With 8 Direct-Access Menu Keys
- Customize Your View To Highlight Targets Of Interest
- Bracket Or Flush-Mount Installation
- Limited 2 Year Warranty
Simrad 12187001 Warranties
S2016 16" Fishfinder w/Broadband Sounder™ Module & CHIRP Technology - Wide Screen
The Simrad S2016 Fish Finder combines the Broadband Sounder™ module with CHIRP technology, 16" widescreen display for an extensive on-screen history, and intuitive keypad-driven operation. Robust and offering both bracket and flush-mount installation options, the S2016 was designed to meet the need for a dedicated fish finder display aboard coastal and offshore fishing vessels.
Key features:
- Dedicated fish-finder with integrated Broadband Sounder™ module and CHIRP technology
- High depth penetration and ping speed
- Vertical heave compensation
- 16" 1366 x 768-pixel high-definition widescreen LCD
- HDMI output for mirrored secondary display
- See clearly with White Line, White Marker, and Color Erase features
- Simple operation with 8 direct-access menu keys
- Bracket and flush mounting options (bracket included)
- Full-sized SD card slot for logs and software updates
- Ethernet, NMEA0183 & NMEA2000 connectivity
Integrated Single-Channel Broadband Sounder™ Module
The S2009 includes a Broadband Sounder™ module with plug-and-play transducer port, compatible with Simrad and Airmar transducers equipped with blue 7-pin connectors. Adapters are available to allow easy and cost-effective retrofit of existing Simrad, Airmar, and other third-party transducers.
CHIRP Technology
The S2009 includes CHIRP technology, which utilizes frequency-swept sonar pulses to deliver higher resolution, improved target separation, and greater image clarity than traditional sonar at all depth ranges. Simrad technology makes CHIRP available not only on special-purpose CHIRP transducers, but also via traditional single-frequency transducers. Vessels with a suitable transducer already installed can add CHIRP technology simply by installing an S2000-series Fish Finder, offering an extremely cost-effective upgrade.
Vertical Heave Compensation
Heave compensation eliminates the vertical effects of wave action from sonar depth measurements, enhancing the accuracy and consistency of bottom tracking in rough conditions. This feature requires a compatible NMEA 2000®-connected satellite compass such as the Simrad HS60 or HS70 to provide real-time heave data.
16" Widescreen Display
With a compact 9" LCD in portrait orientation, the S2009 maximises screen size where limited mounting space is available. Its portrait orientation is well suited to fishing applications, displaying the water column with a high level of vertical detail.
White Line, White Marker and Colour Erase
The S2009 Fish Finder offers a range of features to quickly and easily adjust the on-screen image to suit the task at hand.
-White Line clearly separates the water column from the bottom with a high-contrast white line, for enhanced bottom visibility.
-White Marker allows any user-selected colour from the fish finder image to be replaced with high-contrast white, highlighting specific sonar echoes corresponding to fish or other targets of interest.
-Colour Erase allows any selected colour to be blended into the background, eliminating unwanted noise or unimportant features from the display.
Keypad Operation with Direct-Access Menu Keys
The S2009 is operated by an integrated keypad and rotary dial. Direct-access menu keys beside the display provide intuitive control of on-screen menu options, for one-button access to key settings and features. With reliable, long-life operation and clear tactile feedback, the S2009's large buttons are suitable for use in rough seas, while travelling at speed, and with wet or gloved hands.
Rugged Design with Flexible Mounting Options
The S2009 may be flush-mounted, ideal for installation aboard new vessels. Alternatively, the included gimbal bracket is well suited to outside installations or pilothouse refits. With watertight rear connectors, the S2009 is IPX7 water-resistant from all sides, in either flush- or bracket-mount installation.
Networking & Expansion
The S2009 includes Ethernet connectivity to share sonar data with other Simrad systems including NSO evo2 and NSS evo2 multifunction displays. The S2009 may also be used as a dedicated fish finder display for NSS evo2 systems, receiving sonar data from an NSS evo2 display's built-in Broadband Sounder™ module. Other devices may be networked via the S2009's NMEA 2000® and NMEA 0183® ports, enabling additional functionality such as waypoint marking and sharing with compatible devices.
HDMI Output for Display Mirroring
An HDMI output gives the option of a secondary monitor mirroring the S2016's primary display, allowing fish finder data to be made visible at two separate stations or duplicated on a larger bulkhead-mounted screen. The S2016 is compatible with Simrad MO-series marine monitors, and other standard HDMI-capable displays.
Sonar Log Recording - ciBioBase and Insight Genesis Compatible
The S2009 is capable of recording sonar history to a full-sized SD memory card, which may be easily inserted and removed via a waterproof access hatch on the front panel. Recorded sonar logs may be used with the cloud-based Insight Genesis™ service to create custom fishing charts, or BioBase GIS software to create detailed aquatic bathymetric and vegetation maps for survey and research purposes.
Specifications:
- Languages: 40 languages
- Screen Brightness: 400 cd/m2
- Echosounder Max Depths: 3,000M / 10,000' (transducer-dependent)
- Echosounder Transducers: Standard Broadband and single-channel CHIRP Transducers
- Echosounder Frequencies: CHIRP 28-38 kHz, 40-60 kHz, 85-145 kHz, 130-210kHz, Broadband 28kHz, 38kHz, 50kHz, 83kHz, 200kHz
- Display Size: 16" Widescreen
- Display Resolution: 1366 x 768
- Display Type: 16" LED-backlit Color TFT LCD
- Connectors: 1x NMEA0183, 1x NMEA2000, 1x Ethernet, 1xHDMI output
- Waterproof Standard/rating: IPx7
- Product Width: 455.5mm / 17.93"
- Product Depth:82.3mm / 3.24"
- Product Height: 260.1mm / 10.24"
- Power Supply (Supply Voltage): 10.8-31.2 V DC
"It uses intuitive keypad-driven operation for reliable control in all conditions. The fishfinder features dedicated echosounder that integrates seamlessly with multifunction display and Simrad glass bridge systems. The S2009 fishfinder supports either bracket or flush-mount installation for an easy fit aboard any vessel."
SKU: NVN-60195
MPN: 000-12187-001
UPC: 9420024136836
