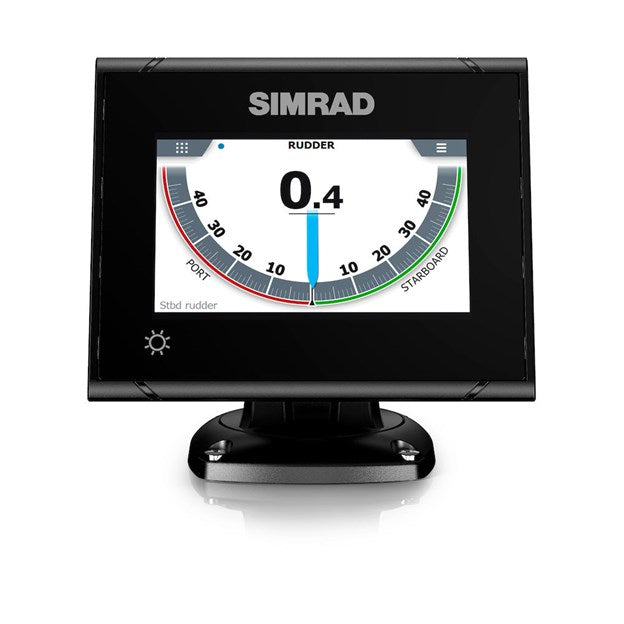

I3005 Commercial Instrument Display, 5
I3005 Commercial Instrument Display, 5 — Product description
Discover the power of precision in your vessel's wheelhouse with a compact yet versatile display designed for demanding commercial marine environments. This 5-inch color touchscreen instrument brings critical navigation and propulsion data to life, allowing captains and crew to monitor multiple essential functions at a glance. Whether you're navigating busy shipping lanes or managing complex thruster operations, its IMO and SOLAS approvals ensure compliance while delivering reliable performance where it matters most.
Why Choose This Multi-Function Display for Commercial Vessels
Imagine a single screen handling up to eight vital readouts simultaneously—heading, rudder angle, propeller RPM, wind data, and more—without cluttering your console. Its intuitive touchscreen interface lets you switch layouts effortlessly, customizing views for different operational phases like docking or open-sea transit. Built tough with an IPX6 waterproof rating, it withstands harsh saltwater exposure, vibrations, and long shifts on the bridge.
- Superior visibility from afar, even in bright sunlight or low light, thanks to high-resolution color graphics.
- Seamless integration across NMEA 2000, NMEA 0183, and analog signals, bridging legacy systems with modern networks.
- Configurable scales for engine RPM (up to 10,000), propeller revolution, and rate of turn, tailored to your vessel's specs.
- Wind monitoring covers true/apparent speeds, angles, and Beaufort scale, oriented to bow or north as needed.
Unlock Advanced Monitoring Capabilities
This display excels as a hub for propulsion and navigation data. Pair it with compatible sensors for IMO-approved heading repeaters using GPS compasses or gyros, or turn it into a rudder indicator within autopilot setups. For thrusters and props, configure pitch angles precisely (sensors from third parties integrate smoothly). Rate of turn visuals help with tight maneuvers, while propeller shaft RPM tracks efficiency in real-time.
Engine telemeters display RPM with customizable ranges, keeping mechanical health in check. Wind instruments provide actionable insights for sail-assisted vessels or stability assessments, enhancing overall situational awareness without needing separate dedicated units.
Effortless Setup for Any Vessel Size
Flexible mounting options and compact dimensions (roughly 6 x 2.3 x 4.7 inches) fit wheelhouses on workboats, ferries, or superyachts. Support for high-speed NMEA 0183 ports (up to 38,000 baud) and Ethernet compatibility means it acts as a data gateway, simplifying retrofits on older fleets. Analog inputs handle common industry signals, reducing wiring headaches and downtime.
Operators appreciate the plug-and-play graphic layouts—pre-configured for quick deployment yet fully customizable for unique needs. Long-distance readability ensures safe operation from the helm or engineering stations.
Robust Specs Built for the Sea
- Screen: 5-inch LCD touchscreen, 800 x 480 pixel resolution for sharp, detailed visuals.
- Durability: IPX6-rated for spray and heavy seas.
- Connectivity: Dual NMEA 0183 ports, NMEA 2000 backbone, Ethernet bridging.
- Power: Efficient draw suits continuous professional use.
Every detail prioritizes reliability, from anti-glare coatings to responsive touch controls that work with gloves or wet hands.
Real-World Applications on Board
For tug operators, monitor rudder feedback and thruster pitch during precision berthing. Cargo ship bridges benefit from multi-function repeators reducing panel clutter. Offshore supply vessels track wind and RPM for safe transits. Its versatility shines in mixed fleets, where one display serves multiple roles without compromising accuracy.
Frequently Asked Questions
What IMO-approved functions does this display support?
It supports IMO-approved Rudder Angle Indicator, Heading Repeater, Propeller Pitch Indicator, and Propeller Revolution Indicator, among others, when paired with compatible sensors.
Can it display multiple functions at once?
Yes, enable up to eight functions simultaneously with customizable graphic layouts for comprehensive monitoring.
Is it suitable for SOLAS vessels?
Absolutely, it holds full IMO/SOLAS approvals for commercial use on regulated vessels.
What connectivity options are available?
NMEA 2000, NMEA 0183 (high baud rates), Ethernet, and analog inputs for flexible integration.
Does it work with third-party sensors?
Yes, compatible with NMEA 0183 feedbacks and common analog signals from various manufacturers.
How waterproof is the display?
It features an IPX6 rating, protecting against powerful water jets and marine conditions.
Can I customize the display scales?
Scales are fully configurable for RPM, ROT, wind, and propeller data to match your vessel's requirements.
Simrad I3005 Commercial Instrument Display With 5" Color Touchscreen and IMO/SOLAS Approval The Simrad I3005 Instrument Series offers a 5-inch superior colour display with easy touch control, and a variety of graphic layouts with the capability to enable up to eight different functions simultaneously. I3005 is IMO approved as a Rudder Angle Indicator, Heading Repeater, Propeller Pitch Indicator, Propeller Revolution Indicator, plus monitor other functions like Engine RPM, Wind Instruments, Digital Data Thruster Propeller Pitch Angle and Boat Speed. Offering a flexible installation that supports a wide variety of I/O signal types, the I3005 is approved for SOLAS vessels. The I3005 Series has the capability to enable the following simultaneously: Heading Repeater -- IMO approved when paired with NMEA 2000, NMEA 0183, or LWE heading sensor, such as Simrad GPS and Gyro compasses. Rudder Indicator -- IMO approved when connected in an Autopilot System that has the optional display of rudder demand. Reading rudder positions from all Simrad rudder feedbacks or is compatible with NMEA 0183 feedbacks from other third-party systems. Rate of Turn Indicator --non-IMO ROT Indicator with a configurable scale range and is compatible with Simrad GPS Compasses, HS60/70/80, Simrad Gyros GS80/85, and Simrad Magenetic Compasses Precision-9, RC-42 Propeller Pitch Indicator configurable for use with Propulsion and Thruster. (Note: Transducer/sensor not offered by Navico) Propeller Shaft RPM -- IMO compliant with a selectable Scale Range. (Note: Transducer/sensor not offered by Navico) Engine RPM Indicator with a Selectable Scale Range from 200 up to 10,000. (Note: Transducer/sensor not offered by Navico) Wind Instrument -- measuring True Wind Speed and Angle, Apparent Wind Speed and Angle, Beaufort Wind Speed Indicator with Selectable Orientations (relative to North or the Ships' Bow).
Simrad 0014125001 Attributes
- Display Size: 5 Inch
- Display Type: LCD
- Resolution: 800 X 480 Pixels
- Interface: Touchscreen
- Dimensions: 6 Inch Length X 2.3 Inch Width X 4.7 Inch Height
- Waterproof: IPX6 Rating Waterproof
- Sensor Compatibility: NMEA 0183 Compatible
Simrad 0014125001 Features & Benefits
- Multiple instrument functions in one display
- Enable up to eight different functions
- Configurable for single or multi-purpose
- Switch easily between multiple functions
- Long distance viewing
- All common analog signal types supported
- Bridges data between NMEA 2000, serial, Ethernet for more flexible & advanced installation requirements
- 2 x NMEA 0183 ports with up to a 38000 baud rate
- Suitable for all vessel sizes
- Limited 2 Year Warranty
Simrad 0014125001 Installation Instructions
Simrad 0014125001 Warranties
Simrad 0014125001 Technical Bulletins
- Simrad Professional Instrument Series I3005_I3007 Cutsheet_37390.pdf
- VULCAN5-GO5-I3005-P2005_MT_988-11090-002_w.pdf
I3005 Instrument Display, MFG# 000-14125-001, with 5-inch color touchscreen display, and a variety of graphic layouts with the capability to enable up to eight different functions simultaneously.
I3005 instrument display, MFG#000-14125-001, has a 5-inch color touch screen display, and various graphic layouts, which can enable up to eight different functions at the same time. ...
SKU: NVN-2001069
MPN: 000-14125-001
UPC: 9420024167748
