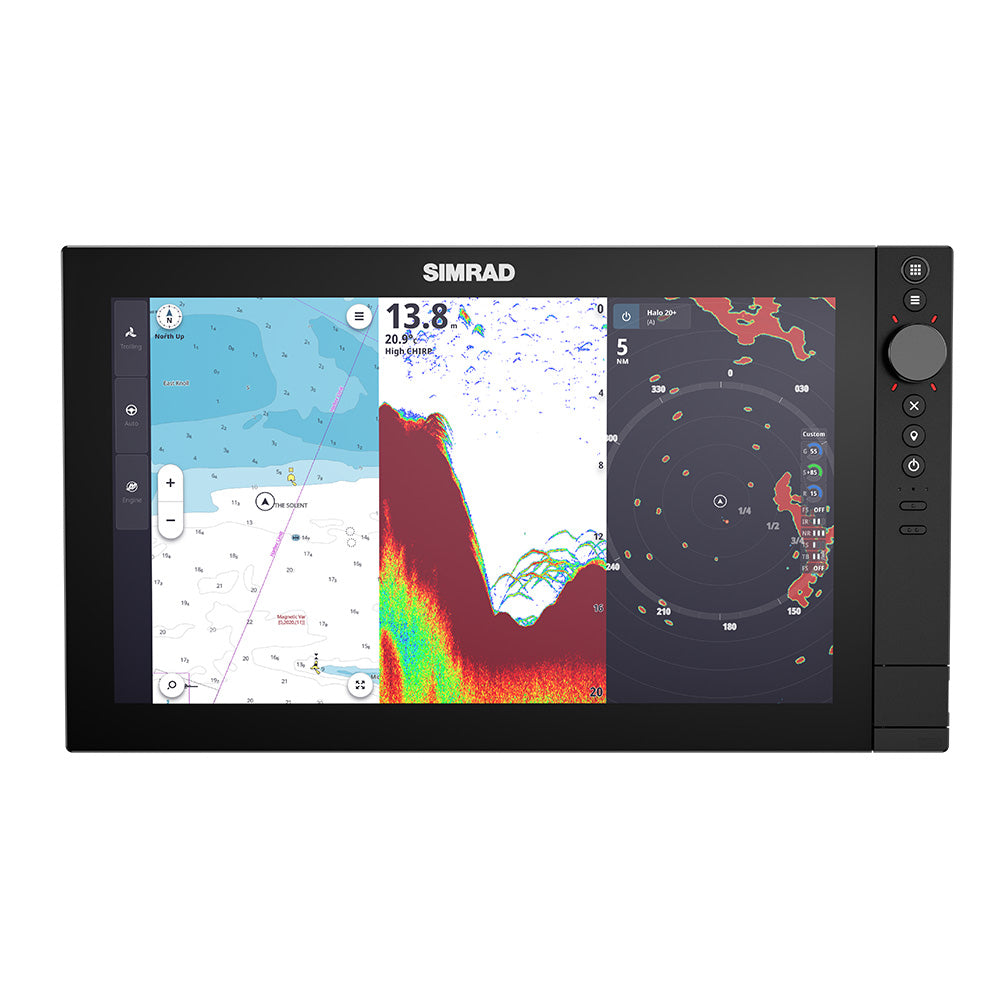

Simrad NSS 4-16 16" Combo w/U.S. C-MAP

Discover Unmatched Performance on the Water

Imagine commanding your vessel with a display that anticipates your every move—sleek, responsive, and packed with cutting-edge tech tailored for serious anglers and cruisers. The Simrad NSS 4-16 redefines marine electronics, blending a massive 16-inch SolarMax IPS touchscreen with hybrid controls that shine in rough seas or calm waters. Whether you're chasing trophy fish in deep offshore runs or navigating coastal inlets, this all-in-one chartplotter and fishfinder delivers crystal-clear visuals and pinpoint accuracy, powered by a blazing-fast processor that keeps pace with dynamic conditions.

Hybrid Controls for Total Command

No more fumbling with wet gloves or fighting glare—this unit's intuitive trio of touch, rotary dial, and keypad lets you switch seamlessly between chart exploration, sonar tweaks, and quick menu scrolls. Pinch to zoom on intricate bathymetric contours, dial in settings during a bite, or hit dedicated keys for instant access to waypoints. It's like having a co-pilot built into your helm, reducing distraction so you stay locked on the action.

Superior Sonar That Reveals Hidden Secrets

Dive deeper into fishfinding prowess with built-in dual-channel 1kW CHIRP sonar, offering exceptional target separation across low, medium, and high frequencies. Pair it with Active Imaging HD transducers for jaw-dropping detail on structure, bait balls, and wrecks—fish arches pop against hyper-realistic side and downscan imagery up to 1200 kHz CHIRP. Anglers report marking schools in 1000+ feet of water with ease, turning speculative drifts into productive hookups.

Lightning-Fast Processing for Effortless Navigation

At its core, a Qualcomm 8-core processor crushes lag, rendering high-res C-MAP Discover X charts of U.S. waters in seconds. Auto-routing calculates optimal paths around no-go zones, while smooth app switching—from radar overlays to engine data—keeps your focus on the horizon. Customize dashboards to mirror your setup, stacking sonar splits, gauges, and video feeds exactly how you need them.

Seamless Ecosystem Integration

Built for expandability, it syncs effortlessly with HALO radars for horizon-scanning dome or array options, RECON trolling motors for precision station-keeping, and third-party heavyweights like Mercury SmartCraft for vessel vitals. NMEA 2000 connectivity pulls in AIS, autopilot commands (NAC-series compatible), and digital switching via CZone. Wi-Fi and Ethernet ports enable wireless app mirroring, IP camera feeds, and networked sonar modules like S5100 for even more power.

Rugged Reliability in Harsh Conditions

Engineered for the elements, its IPX6/IPX7 waterproofing shrugs off spray and submersion, while 1200+ nit brightness cuts through polarized sunglasses in blinding sun. Wide 80-degree viewing angles ensure crewmates see the same vivid 1920x1080 display from any angle. Operating from -15°C to 55°C, it's ready for northern freezes or tropical heat.

Key Technical Highlights

Category	Details
Display	16" SolarMax IPS, 1920x1080, >1200 nits, 80° viewing angles
Sonar	Dual 1kW CHIRP (Low/Med/High), Active Imaging HD, Sidescan/Downscan
Connectivity	Ethernet (GbE + 5-pin), NMEA 2000, Wi-Fi 5, HDMI Video In, microSD/USB
GPS	10Hz GNSS (GPS/GLONASS/Galileo/BeiDou), WAAS
Power & Environment	12/24V DC, 43.5W max, IPX6/7, -15°C to 55°C
Dimensions & Weight	423.5 x 241.6 x 88.6 mm (display), 3.8 kg

Real-World Edge for Anglers and Cruisers

Sportfishermen love how it overlays CHIRP sonar with C-MAP's high-res bathy and custom Strikelines for proven honey holes. Cruisers appreciate radar fusion for collision avoidance and SiriusXM weather (via module) for storm tracking. Trolling pros pair it with Motorguide or Rhodan motors for spot-on-hold in current. Unlike smaller units, the 16-inch canvas lets you run quad-splits without squinting, ideal for center consoles or sport yachts.

Frequently Asked Questions

What makes the Simrad NSS 4-16's hybrid controls unique?

The hybrid system combines a responsive touchscreen for chart panning and zooming, a rotary dial for rapid menu navigation and data scrolling, and a keypad for quick-access functions—perfect for gloved hands or bumpy rides.

Does the NSS 4-16 support advanced sonar transducers?

Yes, it handles dual-channel 1kW CHIRP across multiple frequencies, plus Active Imaging HD for high-definition side/downscan imaging, revealing fine details on fish and structure.

Is this unit compatible with trolling motors?

Absolutely—it integrates with Simrad RECON, Rhodan, and Motorguide trolling motors for precise positioning and control directly from the display.

What chart options come pre-loaded and what else is supported?

Includes U.S. C-MAP Discover X charts for detailed coastal and inland navigation. Supports upgrades to Reveal X, plus third-party like CMOR and Strikelines.

How does the NSS 4-16 handle network expansion?

Gigabit Ethernet, NMEA 2000, and Wi-Fi enable sharing data with radars, sonar modules (S3100/S5100), AIS, autopilots, and IP cameras across your vessel.

Can I view it in direct sunlight with polarized lenses?

Yes, the SolarMax IPS display exceeds 1200 nits brightness with anti-glare tech optimized for polarized sunglasses, maintaining clarity in harsh light.

What's the power draw and voltage range?

Max 43.5W consumption on 12/24V DC systems (10-31.2V tolerant), with a 5A fuse recommendation for reliable performance.

NSS 4-16 16" Combo with U.S. C-MAP

Redesigned inside and out, NSS® 4 is SLEEKER, FASTER and SMARTER. The touchscreen, rotary dial, and keypad all work in harmony for superior control. Inside, our most powerful 8-core processor delivers smoother transitions and faster updates. Advanced fishfinding capabilities such as dual channel 1kW CHIRP sonar, Active Imaging™ HD support, and enhanced customization complete the package for our premium, all-in-one sports chartplotter and fishfinder. Perfect for sportfishing enthusiasts and cruisers.

SLEEKER - Next-gen design, inside & out

NSS® 4 looks stunning from the moment you lay eyes on it. A trio of hybrid control options revolutionizes the way you interact with your display, and an updated glass-to-edge design delivers a more premium look to the helm, revolutionizing dashboards instantly.

FASTER - Lightning-quick user experience

At the heart of NSS® 4 lies our most powerful Qualcomm® 8-core processor, delivering smoother page transitions, faster auto-routing, and ultimately, faster boating. Speed is also built into the latest operating system, which is quicker at every touchpoint with a streamlined UI.

SMARTER - Advanced angling

A dual channel 1kW CHIRP echosounder provides enhanced target separation and a clearer and more complete picture of the waters below, and support for the stunning Active Imaging™ HD means images of underwater structure and fish are clearer than ever.

Integrated for the future

Our latest OS has integration at its core. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...

NSS® 4 also boasts extensive (and always expanding) support for third-party techs such as Mercury® SmartCraft Connect, SiriusXM®*, CZone® digital switching, and much more.

Features:

• A trio of hybrid controls: touch, rotary, and keypad
• Premium glass-to-edge design
• Lightning fast Qualcomm® 8-core processor
• Redesigned operating system
• Built-in dual channel 1kW CHIRP echosounder
• Support for Active Imaging™ & Active Imaging™ HD
• Support for C-MAP® X-gen charts and others
• Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible
• Compatible with Simrad suite: S3100H & S5100 sonar modules, radar, and more...
• Support for Mercury®, CZone®, SiriusXM®, and more...

Specifications:

• Ethernet: 1 port (X-Coded M12 GbE)1 port (yellow, 5-pin)
• NMEA 0183: No
• NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN
• PC Connectivity: No
• Video: HDMI Video In, IPCAM-1, FLIR 232/300 series. ONVIF IP Camera
• WiFi: Wi-Fi 5 (IEEE 802.11ax)
• Backlight Color: White
• Resolution: 1920 x 1080
• Screen Brightness: >1200 nits
• Size and Type: 16" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses
• Viewing Angles: 80° top/bottom, 80° left/right
• Power Consumption, max.: 43.5 W
• Recommended Fuse Rating: 5 A
• Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max)
• Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
• Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
• Waterproof rating: IPX6 and IPX7
• AIS: Receive AIS data over NMEA 2000
• Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible
• Cartography included: Discover X chart card of North America
• Cartography supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content)
• Digital Switching: Czone / DDS
• External Storage: 2x (microSD®, SDHC®)
• GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS SBAS (WAAS)
• Radar (inc. compatibility): Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars
• Sonar (inc. compatibility): Two 9-pin Xsonic 1 kW Sonar ports. Sonar port: Low, Medium, and High Chirp up to 1kW RMS: Downscan: 455 kHz, 800 kHz, 700 kHz CHIRP, 1200 kHz CHIRP. Imaging port: Sonar: Low, Medium, and High Chirp up to 1kW RMS. Downscan: 455 kHz, 800 kHz, 700 kHz CHIRP, 1200 kHz CHIRP. Sidescan: 455 kHz, 800 kHz, 455 kHz CHIRP, 1200 kHz CHIRPNetwork Sonar modules S3100, S5100
• Weather: Sirius XM via WM4 module (USA only) *Subscription required, sold through SiriusXM
• Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network
• Compass Safe Distance - Metric, imperial: 35 cm (1.15 ft)
• Dimensions (W x H x D): Display only: 423.5 mm x 241.6 mm x 88.6 mm (16.67″ x 9.51″ x 3.49″)With bracket: 453.4 mm x 266.4 mm x 88.6 mm (17.85″ x 10.49″ x 3.49″)
• Mounting Type: Bracket mount (bracket supplied). Rear mount (brackets supplied)
• Weight: 3.8 kg (8.38 lb)
• Warranty Period: 2 Years
• Interface: Hybrid multi-touch screen, buttons, and rotary knob

SKU: NVN-107359
MPN: 000-16018-001
