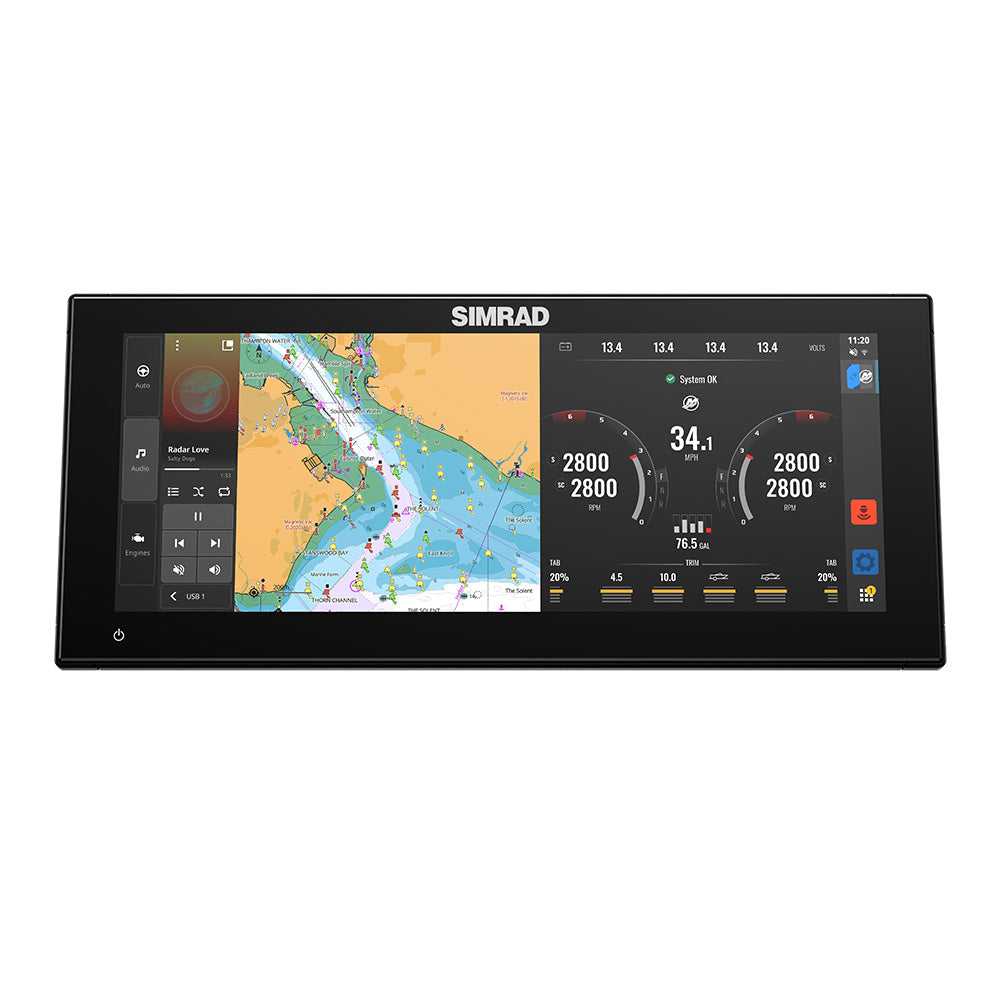

Simrad NSX 3012UW Combo w/Active Imaging™ 3-in-1 Transducer
Simrad NSX 3012UW Combo w/Active Imaging™ 3-in-1 Transducer — Product description
Transform Your Boating Dashboard with Ultrawide Innovation
Imagine consolidating the power of dual screens into a single, sleek unit that fits seamlessly into your boat's helm. The Simrad NSX 3012UW Combo redefines marine multifunction displays (MFDs) with its groundbreaking ultrawide format, delivering an unmatched panoramic view perfect for serious boaters and avid anglers. Paired with the Active Imaging 3-in-1 Transducer, this setup turns your vessel into a high-tech command center, blending crystal-clear charting, sonar insights, and vessel controls like never before.
Crafted for those who demand more from their electronics, this 12-inch powerhouse eliminates clutter while maximizing visibility. Whether you're navigating crowded waterways, hunting trophy fish, or managing onboard systems, the NSX 3012UW provides the immersive edge that standard square displays simply can't match.
Unrivaled Visibility and Design Flexibility
The heart of this system is its SolarMAX IPS HD touchscreen, boasting a 1920 x 720 resolution and over 1000 nits of brightness. Extreme viewing angles—85 degrees in every direction—ensure you see every detail, even from the side or in harsh sunlight, all while wearing polarized sunglasses. This ultrawide aspect ratio mimics luxury automotive dashboards, allowing for low-profile installations that enhance your boat's modern aesthetic.
- Panoramic screen real estate for split-screen multitasking without bezels.
- Compact footprint: Just one cutout and fewer cables compared to multi-display setups.
- Customizable panels to prioritize speed, fuel, sonar, or charts at a glance.
Boat builders and owners alike appreciate how it streamlines production—less wiring, quicker setup, and a premium look that stands out on the water.
Intuitive Controls for Effortless Operation
Powered by Simrad's latest operating system, navigating this display feels natural from the first touch. The activity bar lets you pin essential apps for one-tap access, while the simplified menus cut through complexity. Auto-routing now computes paths three times faster, giving you confidence on unfamiliar routes.
Real-world tip: Customize your home screen with engine data, radar overlays, and fish arches upfront. Spend less time fiddling with settings and more time enjoying the journey.
Seamless Vessel and Engine Integration
Connectivity defines modern boating, and the NSX 3012UW excels here. Superior Mercury integration via SmartCraft Connect delivers real-time engine stats, vessel position, and joystick control. It also pairs effortlessly with Honda, Suzuki, and other propulsion leaders.
Extend control bow-to-stern: Manage CZone digital switching, RGBW lights, IP cameras, and audio zones through an intuitive setup wizard. NMEA 2000, Ethernet, Wi-Fi, and Bluetooth keep everything synced across your network.
Elite Fishing Performance with Active Imaging
For anglers, this combo shines with FishReveal technology that overlays fish targets on detailed structure scans. The included Active Imaging 3-in-1 Transducer combines CHIRP sonar, SideScan, and DownScan Imaging, revealing structure up to 300 feet to each side and below your hull.
- Supports 1kW transducers for deep-water prowess (with sonar module).
- Sonar sharing across multiple NSX units for fleet-wide awareness.
- High-res images help distinguish bait schools from game fish effortlessly.
Pro anglers note: Pair it with HALO radars for bird mode spotting or S5100 modules for total sonar dominance in any conditions.
Precision Navigation and Charting
Optimized for C-MAP Discover X and Reveal X charts (North America included), enjoy hyper-detailed coastal views, custom depth shading, and up to 28,000 marine points of interest. Internal 10Hz GPS with WAAS/MSAS/EGNOS/GLONOSS support ensures pinpoint accuracy—down to 3 meters.
Waypoint management via the Simrad App allows offline planning, making trip prep a breeze before you leave the dock.
Built to Withstand the Marine Environment
Rated IPX6/IPX7 waterproof, this unit thrives from -15°C to 55°C (-5°F to 131°F). Vibration-tested to 100,000 cycles of 20G, it's ready for rough seas. At just 1.5 kg, installation is straightforward with rear or optional gimbal mounting.
Kit Essentials for Quick Setup
Everything you need arrives ready to go: The NSX 3012UW display, Active Imaging 3-in-1 Transducer with 25ft cable, Discover X North America chart, power cable, fuse kit, and suncover. Bracket sold separately for custom fits.
Frequently Asked Questions
What sets the Simrad NSX 3012UW's ultrawide display apart from traditional marine screens?
Unlike square displays that waste space on split screens, the 12-inch ultrawide format offers dual-screen functionality in one unit. This provides more immersive charting, better multitasking, and a sleek, automotive-inspired dash design with superior visibility from any angle.
How does the Active Imaging 3-in-1 Transducer enhance fishing?
It delivers CHIRP sonar for target separation, SideScan for 300ft-wide structure views, and DownScan for photo-like bottom details. FishReveal overlays make spotting fish amid weeds or rocks intuitive, ideal for both casual and tournament fishing.
Which engines and systems integrate best with this MFD?
It excels with Mercury SmartCraft Connect for full engine data and autopilot steering. Compatible with Honda, Suzuki, CZone switching, Lumishore lights, Dometic coolers, multiple audio brands, and IP cameras via NMEA 2000 and Ethernet.
Is installation complicated for the NSX 3012UW Combo?
No—the intuitive setup wizard guides connections. Single cutout, minimal cabling, and included transducer cable simplify the process. Rear mount is standard; add a gimbal bracket for surface installs.
Can this display handle deep-water fishing or radar?
Yes—1kW sonar port supports deep transducers (with module). Full compatibility with HALO radars (3G/4G), providing long-range detection and bird mode for finding feeding fish.
What charts come preloaded, and can I add more?
Discover X North America is included, with X-Gen detail for navigation. Easily add Reveal X or third-party charts via MicroSD/USB for global coverage and custom planning.
NSX 3012UW Combo with Active Imaging™ 3-in-1 Transducer
Expand your horizons with the world's first fully-featured ultrawide marine display. NSX® ULTRAWIDE brings all the benefits of dual screens to a single display for our most immersive experience yet. Get a truly unique, eye-catching dash, see apps as they were meant to be seen, and experience C-MAP®'s X-Gen charts in more detail than ever.
Get a Fresh Perspective
NSX ULTRAWIDE offers a new perspective on boating. Discover an all-new aspect ratio for our most immersive on-the-water experience yet.
Simpler Boating with Simrad's Latest Operating System
NSX ULTRAWIDE also delivers game-changing simplicity. Use the intuitive activity bar to pin your favorite apps and switch between them with a single touch. The fully customizable instruments panel lets users make the NSX their own by ensuring users always have the right data at hand and nothing more.
The simplified interface means users spend less time navigating menus and more time navigating water. Even that is quicker considering Simrad's fastest-ever auto-routing calculates routes in one-third of the time.
Superior Engine Control
Connectivity is at the heart of NSX ULTRAWIDE. The display feeds more information than ever to the helm, giving superior control over the full suite of on-board technology.
It all begins with superior engine control. Nobody integrates better with Mercury® than Simrad does, and NSX ULTRAWIDE also offers superior integration with other leading propulsion brands such as Honda and Suzuki.
Bow-To-Stern Integration
Control with NSX ULTRAWIDE extends across the entire vessel, with support for CZone® digital switching, RGBW lighting, IP cameras, and audio—with an intuitive Setup Wizard to help you get it all connected.
A Fishing Superpower
Anglers benefit from leading sonar tech like FishReveal™ and Active Imaging®, which provide high-res images 300 feet to the sides and below the boat. Compatibility includes a wide range of 1kW transducers, meaning users can fish even in the deepest waters.
*Requires additional sonar module and a minimum 1.7 software update.
Features
Simrad® Suite Integration:
- See near and far with full support for 3G, 4G, and HALO® radars
- Easy autopilot integration with NAC-1, NAC-2, NAC-3 and NAC-D pilots
- Simrad® App integration for waypoint management and offline trip planning
Third-Party Integration:
- Best-in-class Mercury® Integration, inc. SmartCraft® Connect
- Integration with leading propulsion brands such as Honda and Suzuki
- CZone® digital switching
- OmniSense
- Dometic
- Lumishore lighting
- Multiple audio partners
- IP cameras
- HTML5 app compatible
- Much, much more...
Charts & Navigation:
- Optimized for C-MAP® DISCOVER™ X AND REVEAL™ X charts
- X-Chart Manager
- 3x faster autorouting*
- *vs SIMRAD® GO
Fishfinding & Sonar Capabilities:
- Sonar sharing between NSX® devices
- Compatible with Active Imaging™, featuring CHIRP, SideScan, and DownScan Imaging™, as well as the S3100 & S5100 sonar modules*
- *Requires minimum 1.7 software update
Network Connectivity:
- Wireless
- Ethernet
- USB
- NMEA 2000®
Additional Features:
- The latest Simrad® operating system, for game-changing ease of use
- Ultrawide SolarMAX™ IPS HD touchscreen with extreme viewing angles
- Intuitive setup wizard
- Bracket mount sold separately
Specifications:
Display:
- Backlight Color: White
- Display Resolution: 1920 x 720 px
- Display Size: 12 inches
- Screen Brightness: >1000 nits
- Viewing Angles: 85° (top, bottom, left, and right)
Physical:
- Compass Safe: 50 cm (1.7 ft)
- Dimensions (W x H x D): No Bracket, no suncover W: 337.0 mm (13.30") x H: 147.9 mm (5.82") x D: 88.5 mm (3.48"). With gimbal bracket| H: 157.9 mm (6.22") D:96.5 mm (3.80")
- Mounting Type: Rear mount (bracket supplied), bracket mount (bracket optional)
- Weight: 1.5 kg (3.3 lbs)
Electrical:
- Power Consumption Max: 19.8 W (1434 mA at 13.8 V)
- Recommended Fuse Rating: 3A
- Supply Voltage: 12 V DC (10 - 17 V DC min-max)
Environment:
- Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
- Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
- Shock Vibration: 100,000 cycles of 20 G
- Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
- Waterproof Rating: IPx6 and IPx7
Connectivity:
- Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic
- Ethernet Ports: 1 port (5-pin connector)
- Connectivity Wi-Fi: IEEE 802.11b/g/n
- NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
- PC Connectivity: No
- SD Card Storage: 1 MicroSD slot, 1 x USB
- Video: IP Camera support
MFD:
- Cartography Included: Discover X chart card of North America
- Digital Switching: Czone / Simrad DDS
- GPS: Internal, 10Hz
- Sonar Compatibility: One 9-pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 kHz, HDI, Active Imaging
- Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
- Weather: No
GPS:
- GPS Receiver Channels: 32 Channels
- Position Accuracy: Horizontal Accuracy 3 m (9.8 ft)
- Update rate: 10 Hz high-speed update (internal)WASS, MSAS, EGNOS, GLONASS
Other:
- Interface: Multi-touch screen
- Languages: German -English -Dutch -Danish -Spanish-French-Italian -Norwegian -Portuguese -Finnish -Swedish -Icelandic -Greek -Chinese-Turkish -Estonian -Croatian -Lithuanian -Latvian -Polish -Chinese Simplified -Japanese -Korean -Ukrainian
- Warranty Period: 2 Years
SKU: NVN-102516
MPN: 000-16216-001
UPC:
