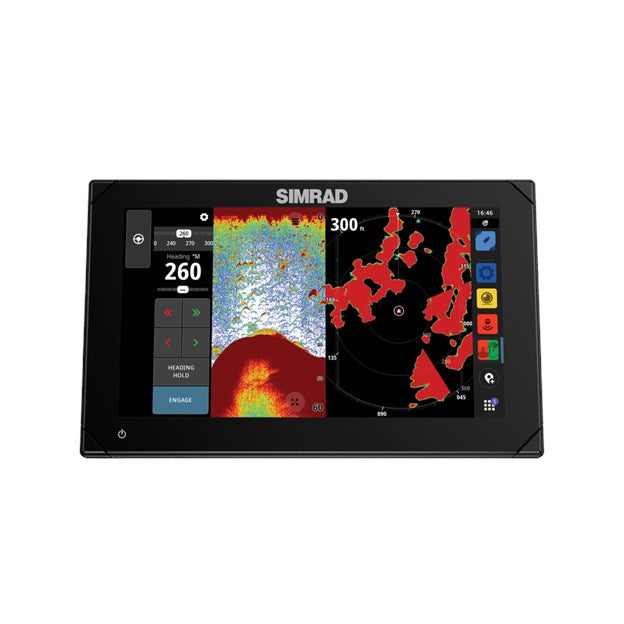

Simrad NSX™ 3009 9" Combo Chartplotter & Fishfinder w/HDI Transducer
Simrad NSX™ 3009 9" Combo Chartplotter & Fishfinder w/HDI Transducer — Product description
Discover the Ultimate On-Water Companion for Anglers and Boaters
Imagine heading out at dawn, the water glassy calm, and your display lighting up with razor-sharp charts and sonar returns that reveal every hidden structure below. The Simrad NSX 3009 transforms those moments into reality, blending cutting-edge marine tech with an interface so intuitive, it feels like an extension of your instincts. Whether you're chasing trophy bass in shallow bays or tracking pelagic species offshore, this 9-inch powerhouse delivers the precision and reliability serious boaters demand.
What sets it apart? It's not just about specs—it's the seamless fusion of high-res imaging, responsive touch controls, and expandable capabilities that adapt to your evolving needs. From weekend warriors to seasoned captains, users rave about how it simplifies complex tasks, letting you focus on the thrill of the catch.
Brilliant Visibility in Any Condition
Say goodbye to squinting at washed-out screens. The SolarMAX IPS touchscreen shines with 1280 x 720 pixel clarity, maintaining vivid colors and sharp details even under blazing sun or through polarized sunglasses. Wide viewing angles mean your crew can glance over without missing a beat, while the rugged IPX6/IPX7 build shrugs off spray, rain, and splashes.
Customize your view effortlessly: drag-and-drop panels, tweak instrument bars, and switch between day and night modes for fatigue-free operation during long hauls. It's like having a marine command center that's as tough as your boat and twice as smart.
Next-Level Navigation That Keeps You Ahead
Dive into marine-optimized charts that update dynamically, highlighting hazards, contours, and prime fishing zones with stunning realism. Accelerated autorouting calculates optimal paths in seconds, factoring in no-go areas and your vessel's profile for safer, faster trips.
Pair it with the companion app to pre-plan routes from your couch, sync waypoints, and review track logs post-trip. No more guesswork— just confident command of the waterways, from coastal inlets to open bluewater runs.
Pinpoint Fish and Structure Like Never Before
The included HDI transducer unleashes CHIRP sonar for exceptional target separation, DownScan Imaging for photo-like bottom views, and compatibility with Active Imaging for side/down scans up to impressive ranges. Add FishReveal to instantly differentiate fish from structure, saving precious time when bites are on.
Support for 1kW transducers extends your reach to deeper waters, capturing subtle arches and bait schools with unmatched resolution. Anglers report marking fish holding tight to wrecks or drop-offs that older units simply missed, turning good days into limits.
Expand and Integrate Without Limits
NMEA 2000 and Ethernet networking open the door to a full ecosystem: overlay HALO radar for 360-degree awareness up to 48nm with pulse-compression speed, or hook up autopilot for hands-free steering through crowded marinas.
IP camera inputs let you monitor live wells or engine bays, while wireless connectivity keeps software current and data flowing. It's future-proof design means your setup grows with you, without starting from scratch.
Setup Simplicity Meets Pro Performance
Unbox, power up, and the guided Setup Wizard walks you through sonar calibration, network config, and chart loading with plain-English prompts—no manuals required. Simpler sonar tuning auto-detects conditions, dialing in optimal settings for murky rivers or clear lakes.
Pro tip: Mount it flush for a clean helm look, ensuring cables route neatly behind panels for a pro install. Regular firmware checks via app keep it peaking, and its compact footprint (9.4" W x 5.85" H x 3.17" D) fits most consoles without drama.
Real Boaters Share Their Wins
Offshore tuna hunters love the radar-son ar fusion for spotting birds over boils from afar. Kayak anglers appreciate the responsive touch for tight spaces, while family cruisers value the autopilot integration for relaxed sunset cruises. It's versatile enough for tournament pros yet approachable for newcomers, consistently earning praise for reliability in rough seas.
Frequently Asked Questions
Does the Simrad NSX 3009 work with polarized sunglasses?
Yes, the high-definition IPS SolarMAX touchscreen is fully compatible with polarized lenses, ensuring clear visibility and full touch functionality in bright conditions.
What types of transducers does it support?
It includes an HDI transducer for CHIRP and DownScan, plus compatibility with Active Imaging 3-in-1 and a broad range of 1kW options for deeper water performance.
Is networking easy to set up?
Absolutely—NMEA 2000 and Ethernet make integration straightforward, with the Setup Wizard guiding you through connections for radar, autopilot, and more.
Can I customize the screen layout?
Yes, smart drag-and-drop lets you personalize panels, instruments, and modes for charts, sonar, or hybrid views tailored to your style.
How does FishReveal help with fishing?
FishReveal overlays CHIRP and DownScan to highlight fish in bold color against structure, making it easier to spot and target species quickly.
What's the benefit of the Setup Wizard?
It provides step-by-step guidance for initial setup and adjustments, including sonar optimization, getting you on the water faster without technical headaches.
Does it support radar overlays?
Yes, HALO radar compatibility offers simultaneous short- and long-range views up to 48nm with ultra-fast updates for enhanced situational awareness.
Take your experience to a whole new level?with the Simrad (R) NSX ™ smart?chartplotter?and?fishfinder.?With an innovative, modern interface featuring powerful navigation capability with C-MAP (R) DISCOVER X charts, you’ll see everything like?never before, our IPS touch screens capturing every detail. The NSX comes fully equipped with integrated Sonar, Radar and Autopilot systems, and with our handy Setup Wizard tool you’ll be up and running in no time. All you need to do now is choose your next on-the-water adventure. With an innovative, modern interface featuring powerful navigation capability with C-MAP (R) support, you’ll see everything like never before. The NSX features integrated Sonar, full Radar and Autopilot systems compatibility, and with our handy Setup Wizard tool, you’ll be up and running in no time. All you need to do now is choose your next on-the-water adventure. Experience modern simplicity in rich detail. NSX pairs a clean and straightforward interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including smart drag-and-drop screen customization, fully editable instruments bar and enhanced day and night modes. Get crystal clear views of chart detail, structure and bottom contours with the vibrant SolarMAX ™ IPS touch screen. The high definition display is viewable from any angle, in direct sunlight, and through polarized lenses with complete touch screen operation.
Simrad 0015372001 Attributes
- Display Size: 9 Inch
- Resolution: 1280 x 720 pixels
- Interface: Multi-Touchscreen
- Dimensions: 9.4 Inch Width X 3.17 Inch Depth X 5.85 Inch Height
- Waterproof: IPX6/ IPX7 Rating Waterproof
- Sensor Compatibility: NMEA 2000 Compatible
Simrad 0015372001 Features & Benefits
- Features A Marine-Optimized C-MAP (R) DISCOVER ™ X Chart With A Fresh, Intuitive Chart Presentation And Daily Updates – Plus Support For C-MAP REVEAL ™ X Charts
- High Definition IPS Touch Screen With Extreme Viewing Angles, Even Viewable Through Polarized Lenses
- Support For High Resolution Views Of Fish And Structure With Active Imaging ™ Featuring CHIRP, SideScan And DownScan Imaging ™, Plus 1 Kilowatt Transducer Capability To Reach Greater Depths
- Setup Wizard To Get You Up And Running Quickly, Plus Simpler Sonar Setup
- Full Integration With Capability To Expand System With Simrad ® Sonar, Autopilot, Radar, And More
- Faster Autorouting With Seamless Accessibility
- See Near And Far Simultaneously (Up To 42nm), With HALO ® Radar Support And Get Ultra-Fast Updates Every Second
- Stay On Course With Full Simrad ® Autopilot Integration
- Modern And Straightforward Interface
- Limited 2 Year Warranty
Simrad 0015372001 Installation Instructions
Simrad 0015372001 Warranties
Simrad 0015372001 Technical Bulletins
NSX™ 3009 9" Chartplotter & Fishfinder with HDI Transducer
Everything about NSX™ is designed to bring your fishing adventures closer. Enjoy our fastest-ever Autorouting and next-gen C-MAP® charts. Experience intuitive touch screens and a simple sonar setup with hints to assist you when you need it. Count on high-resolution imagery from state-of-the-art sonar technology, like FishReveal™, DownScan Imaging™, and SideScan.
Add compatibility with a wide range of 1 kW transducers for even more target resolution, and there is nothing between you and your next adventure but open water.
An Intuitive Touchscreen Experience
Easily access all NSX™ features via a modern and simple interface, including drag-and-drop screen customization and enhanced day and night modes. Get crystal clear views of chart detail with the vibrant SolarMAX™ IPS touchscreen - viewable from any angle, in direct sunlight, and even through polarized lenses.
Bring Navigation to Life with NSX™
See map details in a different way with next-generation C-MAP® DISCOVER™ X and REVEAL™ X marine-optimized charts for day and night. Experience our fastest-ever Autorouting and with the Simrad® Companion App plan trips, review Tracks, plot Waypoints, and sync directly.
Full Suite of Simrad® Technology at Your Fingertips
Expand your system with advanced Simrad® technology. Experience high-resolution imagery rom state-of-the-art sonar technology, like Active Imaging™, as well as compatibility with a wide range of 1 kW transducers. Identify hazards immediately and see near and far simultaneously with award-winning pulse compression HALO® radars, and stay on course with legendary Simrad® Autopilots.
Simple to Set Up, Easy to Manage
Get up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the Simrad® App allows access to the best planning tools and hassle-free software updates and data transfer.
Features:
- Features a marine-optimized C-MAP® DISCOVER™ X chart with a fresh, intuitive chart presentation and daily updates – plus support for C-MAP REVEAL™ X charts
- High definition IPS touch screen with extreme viewing angles, viewable through polarized lenses
- Includes HDI transducer with CHIRP Sonar and DownScan Imaging™, plus support for Active Imaging™ 3-in-1 and a wide range of compatible 1kW transducers to reach even greater depths
- Quickly identify fish with FishReveal™
- Setup Wizard to get you up and running quickly, plus a simpler sonar setup
- Full integration with the capability to expand the system with Simrad® sonar, autopilot, radar, and more
- Faster Autorouting with seamless accessibility
- See near and far simultaneously (up to 48nm), with HALO® Radar support and get ultra-fast updates every second
- Stay on course with full Simrad® autopilot integration
- Clean and simple interface
- Simrad® App integration – keep your chart data at your fingertips, both on and off the water
- Third-party app integration
- Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability
- IP Video Support
SKU: NVN-93530
MPN: 000-15372-001
UPC: 9420064111978
Technical specifications
| Brand | Simrad |
| Model | Simrad NSX™ 3009 9" Combo Chartplotter & Fishfinder w/HDI Transducer |
| SKU / MFR# | 93530 |
