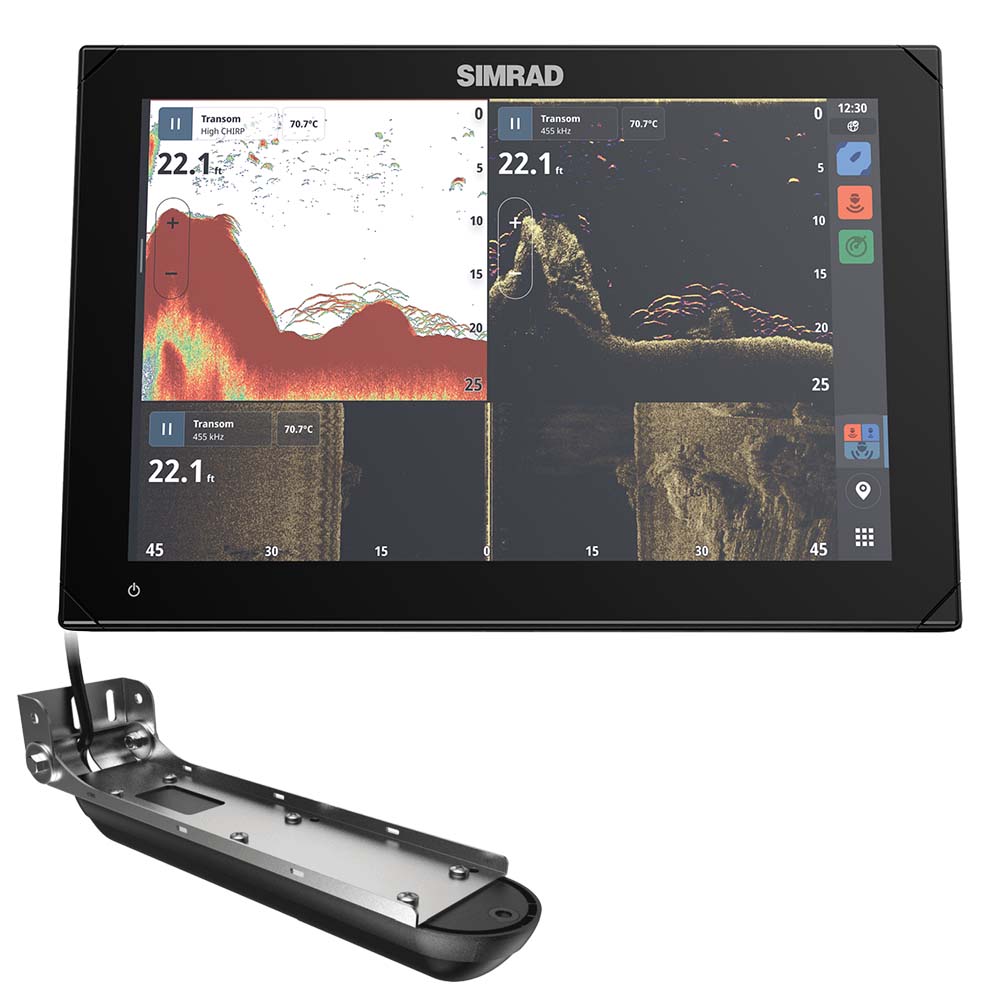

Simrad NSX™ 3012 12" Combo Chartplotter & Fishfinder w/Active Imaging™ 3-in-1 Transducer
Simrad NSX™ 3012 12" Combo Chartplotter & Fishfinder w/Active Imaging™ 3-in-1 Transducer — Product description
Discover the Power of Seamless Navigation and Fishfinding
Imagine heading out on the water with confidence, knowing every twist in the river, every hidden structure below, and every school of fish waiting to be found. The Simrad NSX 3012 transforms your boating experience by blending cutting-edge chartplotting with advanced fishfinding in one stunning 12-inch display. This combo unit isn't just gear—it's your edge on the water, delivering crystal-clear sonar images and effortless route planning that keeps you focused on the thrill of the catch.
Whether you're chasing bass in shallow bays or trolling deep offshore, the included Active Imaging 3-in-1 transducer paints a vivid picture of the underwater world. Pair that with intuitive controls and high-res charts, and you'll wonder how you ever navigated without it. Boaters rave about how it simplifies complex setups, letting novices feel like pros and veterans push their limits further.
Crystal-Clear Display That Performs in Any Conditions
The SolarMAX IPS touchscreen shines with over 1200 nits of brightness, ensuring readability even under the harshest sun or through polarized sunglasses. Wide viewing angles mean everyone on deck gets the full view without crowding around. Customize your screens with drag-and-drop ease—stack sonar overlays, charts, and instruments exactly how you like them. Day and night modes adapt seamlessly, reducing eye strain during long outings.
Real-world tip: Anglers often pair this display with multiple data overlays during tournaments, spotting subtle bottom changes that make all the difference in competitive fishing.
Next-Level Charting with C-MAP Integration
Dive into marine-optimized C-MAP DISCOVER X charts right out of the box, complete with daily updates for the freshest data on depths, hazards, and points of interest. High-resolution bathymetry reveals contours down to one-foot accuracy, while custom depth shading highlights safe passages. Autorouting has never been quicker—plot complex routes in seconds and sync them via the Simrad app for pre-trip planning.
Unlock even more with REVEAL X support: shaded relief views of coastlines and seafloors turn abstract maps into lifelike visuals. Tides, currents, and one-touch info on channels keep you safe and efficient, whether exploring new waters or revisiting favorites.
Superior Sonar for Unmatched Fish Detection
Active Imaging 3-in-1 brings CHIRP sonar, SideScan, and DownScan Imaging together for jaw-dropping clarity. See fish separated from structure with FishReveal, which overlays targets in bold color—no more guessing games. Upgrade to 1kW transducers for deeper scans, ideal for offshore adventures where big game lurks hundreds of feet down.
Fishermen love how it reveals bait balls and wrecks with side-to-side coverage up to 300 feet, helping you position baits precisely. Pro advice: Adjust sensitivity hints during setup to fine-tune for murky water or heavy cover, maximizing your strike rate.
Expand Your System Effortlessly
NSX 3012 grows with you. Ethernet and NMEA 2000 ports link to HALO radars for 360-degree awareness—spot weather cells or birds from afar with pulse compression tech. Integrate Simrad autopilots to hold patterns hands-free while jigging or drifting. Add IP cameras for docking views or AIS for traffic avoidance.
Wireless WiFi and Bluetooth keep you connected, streaming third-party apps or updating firmware dockside. It's built for modularity, turning a solo unit into a full-bridge command center.
Effortless Setup and App-Powered Control
Forget frustrating installs—the Setup Wizard guides you step-by-step, from transducer placement to network config. Sonar prompts explain adjustments in plain English, so you're scanning in minutes. The Simrad Companion App mirrors your display, letting you review trips, plot waypoints ashore, and transfer data wirelessly.
Users highlight the hassle-free updates and consistent interface across devices, making it a favorite for multi-boat owners or guides managing fleets.
Detailed Specifications
| Specification | Details |
|---|---|
| Display Size and Type | 12" SolarMAX IPS Touchscreen |
| Resolution | 1280 x 800 |
| Screen Brightness | >1200 nits |
| Power Consumption (max) | 29.7 W |
| Dimensions (W x H x D with bracket) | 319.5 mm x 215.1 mm x 86.0 mm |
| Waterproof Rating | IPX6 and IPX7 |
| Sonar Port | 9-pin Xsonic 1 kW (CHIRP, HDI, Active Imaging) |
| Networking | 1 Ethernet, 1 NMEA 2000 Micro-C |
| GPS Update Rate | 10 Hz |
| Connectivity | WiFi, Bluetooth 4.0 |
What's Included for Quick Adventures
- NSX 3012 Display Unit
- C-MAP DISCOVER X North America Chart
- Gimbal Bracket and Knobs
- Sun Cover
- Dash Mount Kit
- Power Cable and Fuse Kit
- Active Imaging 3-in-1 Transducer
- Corner Bezel Clips
Frequently Asked Questions
What type of charts come preloaded on the Simrad NSX 3012?
It includes a marine-optimized C-MAP DISCOVER X chart for North America with daily updates, high-res bathymetry, and support for REVEAL X charts featuring shaded relief.
How does the Active Imaging 3-in-1 transducer enhance fishfinding?
It combines CHIRP sonar for depth, SideScan for wide-area structure, and DownScan for detailed bottom images, with FishReveal overlaying fish targets clearly on sonar returns.
Is the display visible in direct sunlight?
Yes, the SolarMAX IPS screen exceeds 1200 nits brightness and works perfectly through polarized sunglasses with wide viewing angles.
Can I connect radar or autopilot to the NSX 3012?
Absolutely—Ethernet and NMEA 2000 support HALO radars for instant target acquisition and Simrad autopilots for hands-free navigation.
How easy is the initial setup?
The Setup Wizard provides step-by-step guidance, sonar hints simplify adjustments, and app integration handles updates and planning effortlessly.
What networking options are available?
Includes Ethernet port, NMEA 2000 Micro-C, WiFi, Bluetooth, USB, and MicroSD for full system expansion and data sharing.
Does it support deeper water scanning?
Yes, with 1kW transducer compatibility via the Xsonic port, it handles greater depths beyond the included Active Imaging unit.
NSX™ 3012 12" Chartplotter & Fishfinder with Active Imaging™ 3-in-1 Transducer
Everything about NSX™ is designed to bring your fishing adventures closer. Enjoy our fastest-ever Autorouting and next-gen C-MAP® charts. Experience intuitive touch screens and a simple sonar setup with hints to assist you when you need it. Count on high-resolution imagery from state-of-the-art sonar technology, like FishReveal™, DownScan Imaging™, and SideScan.
Add compatibility with a wide range of 1 kW transducers for even more target resolution, and there is nothing between you and your next adventure but open water.
An Intuitive Touchscreen Experience
Easily access all NSX™ features via a modern and simple interface, including drag-and-drop screen customization and enhanced day and night modes. Get crystal clear views of chart detail with the vibrant SolarMAX™ IPS touchscreen - viewable from any angle, in direct sunlight, and even through polarized lenses.
Bring Navigation to Life with NSX™.
See map details in a different way with next-generation C-MAP® DISCOVER™ X and REVEAL™ X marine-optimized charts for day and night. Experience our fastest-ever Autorouting and with the Simrad® Companion App plan trips, review Tracks, plot Waypoints, and sync directly.
Full Suite of Simrad® Technology at Your Fingertips.
Expand your system with advanced Simrad® technology. Experience high-resolution imagery rom state-of-the-art sonar technology, like Active Imaging™, as well as compatibility with a wide range of 1 kW transducers. Identify hazards immediately and see near and far simultaneously with award-winning pulse compression HALO® radars, and stay on course with legendary Simrad® Autopilots.
Simple to Set Up, Easy to Manage.
Get up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the Simrad® App allows access to the best planning tools and hassle-free software updates and data transfer.
Features:
- Features a marine-optimized C-MAP® DISCOVER™ X chart with a fresh, intuitive chart presentation and daily updates – plus support for C-MAP REVEAL™ X charts
- High definition IPS touch screen with extreme viewing angles, viewable through polarized lenses
- Active Imaging™ 3-in-1 transducer featuring CHIRP, SideScan, and DownScan Imaging™, plus support for 1kW transducer capability to reach greater depths
- Quickly identify fish with FishReveal™
- Setup Wizard to get you up and running quickly, plus a simpler sonar setup
- Full integration with the capability to expand the system with Simrad® sonar, autopilot, radar, and more
- Faster Autorouting with seamless accessibility
- See near and far simultaneously (up to 48nm), with HALO® Radar support and get ultra-fast updates every second
- Stay on course with full Simrad® autopilot integration
- Clean and simple interface
- Simrad® App integration – keep your chart data at your fingertips, both on and off the water
- Third-party app integration
- Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability
- IP Video Support
SKU: NVN-93528
MPN: 000-15367-001
UPC: 9420064111923
Technical specifications
| Brand | Simrad |
| Model | Simrad NSX™ 3012 12" Combo Chartplotter & Fishfinder w/Active Imaging™ 3-in-1 Transducer |
| SKU / MFR# | 93528 |
