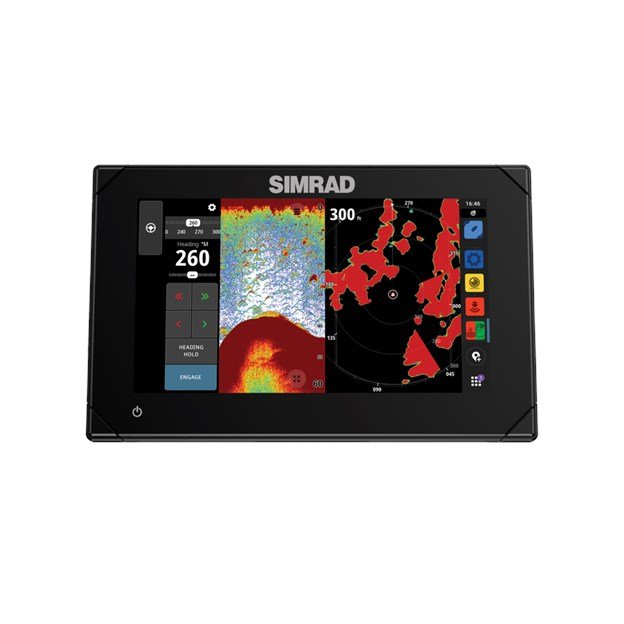

Simrad NSX™ 3007 7" Combo Chartplotter & Fishfinder w/Active Imaging™ 3-in-1 Transducer
Simrad NSX™ 3007 7" Combo Chartplotter & Fishfinder w/Active Imaging™ 3-in-1 Transducer — Product description
Transform Your Boating Adventures with Advanced Marine Electronics
Imagine heading out on the water with a device that not only plots your course flawlessly but also reveals hidden fish structures beneath the waves in stunning clarity. The Simrad NSX 3007 delivers exactly that, blending cutting-edge chartplotting, sonar imaging, and intuitive controls into a compact 7-inch powerhouse. Perfect for weekend anglers or serious offshore explorers, this combo unit simplifies complex tasks, letting you focus on the thrill of the catch or the serenity of navigation.
What sets it apart? Its SolarMAX IPS touchscreen shines even under the harshest sun, maintaining sharp 1024x600 resolution visibility from any angle—crucial when wearing polarized sunglasses. Drag-and-drop screen layouts mean you customize views on the fly, whether prioritizing sonar returns during a trolling session or radar overlays for foggy approaches.
Superior Sonar Imaging for Spot-On Fishfinding
At the heart of the NSX 3007 is the Active Imaging 3-in-1 transducer, fusing CHIRP sonar, SideScan, and DownScan Imaging. This trio paints a vivid picture of the underwater world: CHIRP probes deep for distant schools, SideScan sweeps wide to map drop-offs and wrecks up to 300 feet away, and DownScan delivers photo-like bottom details. Pair it with FishReveal technology, and fish pop out in bold color against subtle structure—say goodbye to guesswork on structure-heavy bottoms like reefs or timberlines.
For deeper pursuits, its 1kW transducer compatibility unlocks targets in over 3,000 feet of water, ideal for big-game hunters chasing tuna or snapper. Pro tip: Adjust CHIRP frequency bands (low for depth, high for separation) based on water column conditions to maximize target resolution on murky days.
Next-Level Navigation with C-MAP Precision
Powered by C-MAP DISCOVER X charts (with REVEAL X support), you'll navigate with confidence thanks to high-res bathymetry, custom depth shading, and daily updates. Shaded relief views make seafloor contours leap off the screen, helping you hug productive ledges or avoid shallows. Autorouting just got smarter—input a destination, and it calculates the optimal path accounting for tides, currents, and no-go zones in seconds.
Sync with the Simrad app for pre-trip planning: Plot waypoints onshore, review past tracks, and transfer seamlessly via Wi-Fi. This integration turns your smartphone into a virtual chart table, perfect for scouting hotspots before launch.
Seamless System Expansion for Full-Boat Control
The NSX 3007 isn't a standalone—it's the hub of a smart marine network. NMEA 2000 and Ethernet ports connect to HALO radars for instant bird flocks or storm cells (up to 48nm range with pulse compression), Simrad autopilots for hands-free tracking, and even IP cameras for dockside monitoring. Wireless Bluetooth keeps sensors like heading or fuel flow in sync without cable clutter.
Anglers love how it overlays radar echoes on charts for real-time hazard avoidance, while offshore crews appreciate autopilot integration that holds patterns like contour trolling effortlessly. Build incrementally: Start with sonar, add radar later, without compatibility headaches.
Effortless Setup and Rugged Reliability
No more poring over manuals—the Setup Wizard guides you step-by-step, from transducer mounting to network pairing. Sonar hints pop up during tweaks, explaining impacts like gain or sensitivity in plain English. IPX6/7 waterproofing shrugs off spray, and a 50cm compass-safe distance keeps your heading true.
Built for real-world abuse: Operating from -15°C to 55°C, it thrives in tropical heat or chilly northerns. Power draw stays low at 11.5W max, sipping from your house bank without drama.
Detailed Specifications at a Glance
| Category | Details |
|---|---|
| Display | 7" SolarMAX IPS, 1024x600, >1200 nits, 85° viewing angles |
| Sonar | Active Imaging 3-in-1 (CHIRP/SideScan/DownScan), 1kW support |
| Networking | NMEA 2000, Ethernet, Wi-Fi, Bluetooth |
| Dimensions (W x H x D, no bracket) | 7.68" x 4.84" x 3.13" |
| Power | 12V DC (10-17V), 11.5W max, 2A fuse |
| Environmental | IPX6/7, -15°C to 55°C operating |
| GPS | 10Hz internal, WAAS/MSAS/EGNOS |
What's Included for Quick Deployment
- NSX 3007 display unit
- Active Imaging 3-in-1 transducer with 25ft cable
- C-MAP DISCOVER X North America chart card
- Mounting bracket, corner clips, and dash kit
- Power cable and fuse kit
- Sun cover for protection
Frequently Asked Questions
How does Active Imaging improve fishfinding compared to traditional sonar?
Active Imaging combines CHIRP for deep precision, SideScan for wide-area mapping, and DownScan for detailed bottom images, revealing fish-holding structures with photo-like clarity that basic 2D sonar often misses.
Is the touchscreen usable in direct sunlight or with polarized glasses?
Yes, the SolarMAX IPS display exceeds 1200 nits brightness and supports wide-angle viewing, ensuring full touch functionality even in blazing sun or through polarized lenses.
Can I connect this to radar or autopilot systems?
Absolutely—NMEA 2000, Ethernet, and compatibility with HALO radars and Simrad autopilots allow seamless expansion for full vessel integration.
What's the easiest way to set up the sonar transducer?
Follow the Setup Wizard's prompts, which include sonar hints and step-by-step guidance for mounting, wiring, and calibration—most users are operational in under an hour.
Does it support wireless chart updates and planning?
Wi-Fi and the Simrad app enable daily C-MAP updates, onshore trip planning, waypoint syncing, and track reviews for effortless data management.
How rugged is this unit for offshore use?
IPX6/7 rated for water resistance, shock/vibration tested to 20G, and temperature-hardened from -15°C to 55°C, it's built to handle rough seas and extreme weather.
Take your experience to a whole new level?with the Simrad (R) NSX ™ smart?chartplotter?and?fishfinder.?With an innovative, modern interface featuring powerful navigation capability with C-MAP (R) DISCOVER X charts, you’ll see everything like?never before, our IPS touch screens capturing every detail. The NSX comes fully equipped with integrated Sonar, Radar and Autopilot systems, and with our handy Setup Wizard tool you’ll be up and running in no time. All you need to do now is choose your next on-the-water adventure. With an innovative, modern interface featuring powerful navigation capability with C-MAP (R) support, you’ll see everything like never before. The NSX features integrated Sonar, full Radar and Autopilot systems compatibility, and with our handy Setup Wizard tool, you’ll be up and running in no time. All you need to do now is choose your next on-the-water adventure. Experience modern simplicity in rich detail. NSX pairs a clean and straightforward interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including smart drag-and-drop screen customization, fully editable instruments bar and enhanced day and night modes. Get crystal clear views of chart detail, structure and bottom contours with the vibrant SolarMAX ™ IPS touch screen. The high definition display is viewable from any angle, in direct sunlight, and through polarized lenses with complete touch screen operation.
Simrad 0015365001 Attributes
- Display Size: 7 Inch
- Resolution: 1024 X 600 Pixels
- Interface: Multi-Touchscreen
- Dimensions: 7.68 Inch Width X 3.13 Inch Depth X 4.84 Inch Height
- Waterproof: IPX6/ IPX7 Rating Waterproof
- Sensor Compatibility: NMEA 2000 Compatible
Simrad 0015365001 Features & Benefits
- Features A Marine-Optimized C-MAP (R) DISCOVER ™ X Chart With A Fresh, Intuitive Chart Presentation And Daily Updates – Plus Support For C-MAP REVEAL ™ X Charts
- High Definition IPS Touch Screen With Extreme Viewing Angles, Even Viewable Through Polarized Lenses
- Support For High Resolution Views Of Fish And Structure With Active Imaging ™ Featuring CHIRP, SideScan And DownScan Imaging ™, Plus 1 Kilowatt Transducer Capability To Reach Greater Depths
- Setup Wizard To Get You Up And Running Quickly, Plus Simpler Sonar Setup
- Full Integration With Capability To Expand System With Simrad ® Sonar, Autopilot, Radar, And More
- Faster Autorouting With Seamless Accessibility
- See Near And Far Simultaneously (Up To 42nm), With HALO ® Radar Support And Get Ultra-Fast Updates Every Second
- Stay On Course With Full Simrad ® Autopilot Integration
- Modern And Straightforward Interface
- Limited 2 Year Warranty
Simrad 0015365001 Installation Instructions
Simrad 0015365001 Warranties
Simrad 0015365001 Technical Bulletins
NSX™ 3007 7" Chartplotter & Fishfinder with Active Imaging™ 3-in-1 Transducer
Everything about NSX™ is designed to bring your fishing adventures closer. Enjoy our fastest-ever Autorouting and next-gen C-MAP® charts. Experience intuitive touch screens and a simple sonar setup with hints to assist you when you need it. Count on high-resolution imagery from state-of-the-art sonar technology, like FishReveal™, DownScan Imaging™, and SideScan.
Add compatibility with a wide range of 1 kW transducers for even more target resolution, and there is nothing between you and your next adventure but open water.
An Intuitive Touchscreen Experience
Easily access all NSX™ features via a modern and simple interface, including drag-and-drop screen customization and enhanced day and night modes. Get crystal clear views of chart detail with the vibrant SolarMAX™ IPS touchscreen - viewable from any angle, in direct sunlight, and even through polarized lenses.
Bring Navigation to Life with NSX™
See map details in a different way with next-generation C-MAP® DISCOVER™ X and REVEAL™ X marine-optimized charts for day and night. Experience our fastest-ever Autorouting and with the Simrad® Companion App plan trips, review Tracks, plot Waypoints, and sync directly.
Full Suite of Simrad® Technology at Your Fingertips
Expand your system with advanced Simrad® technology. Experience high-resolution imagery rom state-of-the-art sonar technology, like Active Imaging™, as well as compatibility with a wide range of 1 kW transducers. Identify hazards immediately and see near and far simultaneously with award-winning pulse compression HALO® radars, and stay on course with legendary Simrad® Autopilots.
Simple to Set Up, Easy to Manage
Get up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the Simrad® App allows access to the best planning tools and hassle-free software updates and data transfer.
Features:
- Features a marine-optimized C-MAP® DISCOVER™ X chart with a fresh, intuitive chart presentation and daily updates – plus support for C-MAP REVEAL™ X charts
- High definition IPS touch screen with extreme viewing angles, viewable through polarized lenses
- Active Imaging™ 3-in-1 transducer featuring CHIRP, SideScan, and DownScan Imaging™, plus support for 1kW transducer capability to reach greater depths
- Quickly identify fish with FishReveal™
- Setup Wizard to get you up and running quickly, plus a simpler sonar setup
- Full integration with the capability to expand the system with Simrad® sonar, autopilot, radar, and more
- Faster Autorouting with seamless accessibility
- See near and far simultaneously (up to 48nm), with HALO® Radar support and get ultra-fast updates every second
- Stay on course with full Simrad® autopilot integration
- Clean and simple interface
- Simrad® App integration – keep your chart data at your fingertips, both on and off the water
- Third-party app integration
- Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability
- IP Video Support
SKU: NVN-93526
MPN: 000-15365-001
UPC: 9420064111909
Technical specifications
| Brand | Simrad |
| Model | Simrad NSX™ 3007 7" Combo Chartplotter & Fishfinder w/Active Imaging™ 3-in-1 Transducer |
| SKU / MFR# | 93526 |
