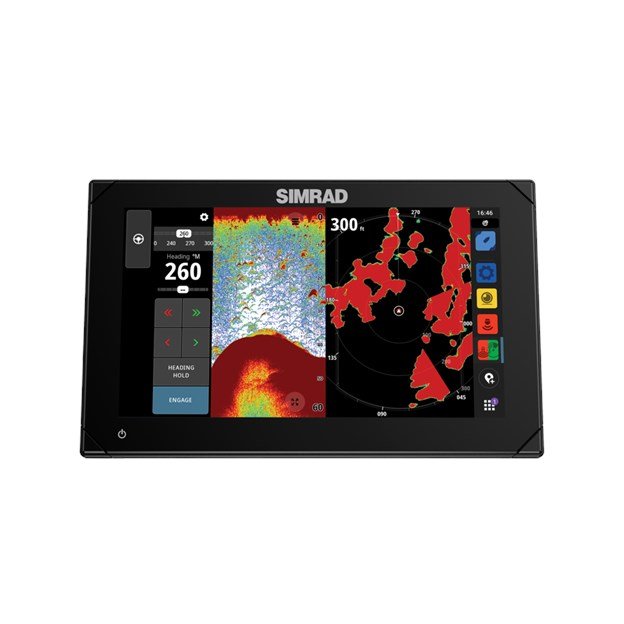

Simrad NSX™ 3009 9" Combo Chartplotter & Fishfinder - Display Only - No Transducer
Simrad NSX™ 3009 9" Combo Chartplotter & Fishfinder - Display Only - No Transducer — Product description
Discover Seamless Navigation and Fishfinding with the NSX 3009
Imagine gliding across open waters with crystal-clear charts at your fingertips, spotting fish structures in stunning detail, and effortlessly plotting your course—all from a single, intuitive 9-inch display. The Simrad NSX 3009 elevates everyday boating and serious fishing by blending cutting-edge marine technology with a user-focused design that feels refreshingly simple. Whether you're chasing trophy bass in shallow bays or navigating coastal routes, this display-only combo unit delivers pro-level performance without the complexity.
What sets it apart? It's built for real-world reliability, from blinding sun glare to polarized sunglasses, ensuring you never miss a beat. Pair it with your preferred transducer, and unlock high-res imaging that reveals hidden spots others overlook. Boaters rave about how it transforms chaotic trips into smooth adventures, saving time on setup and maximizing time on the water.
Superior Display Technology for Any Condition
The heart of the NSX 3009 is its SolarMAX IPS touchscreen, optimized for marine environments. With a 1280 x 720 resolution and viewing angles up to 85 degrees all around, every detail—from subtle bottom contours to distant waypoints—pops vividly. Direct sunlight? No problem. Polarized lenses? Fully functional touch response. Drag-and-drop screen layouts let you customize dashboards on the fly, while enhanced day and night modes reduce eye strain during long outings.
This isn't just a screen; it's your command center, blending high-definition visuals with responsive multi-touch controls for intuitive operation even with wet hands or gloves.
Next-Level Charting with C-MAP Integration
Dive into marine-optimized C-MAP DISCOVER X charts, complete with daily updates, custom depth shading, and high-res bathymetry down to 1-foot contours. Spot tides, currents, and POIs with one-touch map inspection. Autorouting has never been faster—seamlessly calculate routes while syncing plans via the Simrad Companion App.
Support for REVEAL X adds shaded relief for coastal and inland waters, making it ideal for versatile adventurers. Plan offshore runs or inland explorations effortlessly, with tracks, waypoints, and routes transferring wirelessly between app and display.
Advanced Sonar Capabilities for Precision Fishing
Unlock the full potential with compatibility for Active Imaging, featuring CHIRP, SideScan, and DownScan Imaging. FishReveal smartens up targets, distinguishing species amid clutter. Go deeper with 1kW transducer support, scanning structures and schools at greater depths for those hard-to-find hotspots.
Simpler sonar setup guides you through adjustments with on-screen hints, so even newcomers quickly dial in perfect views. Anglers report marking more fish and structures than ever, turning average days into limits.
Expand Your System with Seamless Integrations
The NSX 3009 shines in expandability. Connect HALO radars for simultaneous short- and long-range views up to 48nm with pulse compression tech—ultra-fast updates every second highlight weather, birds, and hazards. Full autopilot integration keeps you on course during trolling or cruising.
NMEA 2000, Ethernet, WiFi, Bluetooth, and IP video support create a networked ecosystem. Add AIS for traffic awareness, third-party apps for extras, or digital switching. It's future-proofed for whatever your boating evolves into.
Effortless Setup and Everyday Reliability
The Setup Wizard walks you through initial configuration step-by-step, while app integration handles updates and data syncs onshore. Rugged IPX6/IPX7 waterproofing withstands sprays and submersion, with a -15°C to 55°C operating range for all-season use.
Compact dimensions (9.4" W x 5.85" H x 3.17" D with bracket) fit tight consoles, powered by 12V DC with low draw. NMEA 2000 compatibility ensures it plays nice with existing gear.
Key Specifications at a Glance
| Category | Details |
|---|---|
| Display | 9" SolarMAX IPS, 1280x720, >1200 nits, 85° viewing angles |
| Power | 12V DC (10-17V), 18.8W max, 3A fuse |
| Connections | 1x Sonar port (1kW), Ethernet, NMEA 2000, WiFi, Bluetooth, USB, MicroSD |
| Environmental | IPX6/IPX7, -15°C to 55°C operating |
| GPS | Internal 10Hz, 32 channels, 3m accuracy |
What's Included for Quick Start
- NSX 3009 Display
- C-MAP DISCOVER X North America chart card
- Gimbal bracket with knobs
- Sun cover
- Dash mount kit
- Power cable and fuse kit
- Corner bezel clips
Is the Simrad NSX 3009 suitable for both fishing and navigation?
Absolutely. It combines advanced chartplotting with C-MAP charts and high-res sonar imaging, perfect for anglers needing precise fish targeting alongside reliable route planning.
Does this unit come with a transducer?
This is a display-only model, so no transducer is included. Choose from compatible Active Imaging or 1kW options to match your boat and water depth.
Can I use it with polarized sunglasses?
Yes, the SolarMAX IPS screen maintains full visibility and touch functionality through polarized lenses, even in bright sunlight.
What radar options work with the NSX 3009?
It supports HALO dome and open-array radars, offering pulse compression for near/far simultaneous scanning up to 48nm with rapid updates.
How easy is the initial setup?
Very straightforward thanks to the Setup Wizard, which provides guided steps. Sonar hints and app integration further simplify configuration.
Is it compatible with my existing NMEA network?
Yes, with NMEA 2000 Micro-C port, Ethernet, and wireless options, it integrates seamlessly into most marine setups.
What app features does it offer?
The Simrad Companion App enables trip planning, waypoint syncing, track reviews, software updates, and consistent chart views on or off the water.
Take your experience to a whole new level?with the Simrad (R) NSX ™ smart?chartplotter?and?fishfinder.?With an innovative, modern interface featuring powerful navigation capability with C-MAP (R) DISCOVER X charts, you’ll see everything like?never before, our IPS touch screens capturing every detail. The NSX comes fully equipped with integrated Sonar, Radar and Autopilot systems, and with our handy Setup Wizard tool you’ll be up and running in no time. All you need to do now is choose your next on-the-water adventure. With an innovative, modern interface featuring powerful navigation capability with C-MAP (R) support, you’ll see everything like never before. The NSX features integrated Sonar, full Radar and Autopilot systems compatibility, and with our handy Setup Wizard tool, you’ll be up and running in no time. All you need to do now is choose your next on-the-water adventure. Experience modern simplicity in rich detail. NSX pairs a clean and straightforward interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including smart drag-and-drop screen customization, fully editable instruments bar and enhanced day and night modes. Get crystal clear views of chart detail, structure and bottom contours with the vibrant SolarMAX ™ IPS touch screen. The high definition display is viewable from any angle, in direct sunlight, and through polarized lenses with complete touch screen operation.
Simrad 0015218001 Attributes
- Display Size: 9 Inch
- Resolution: 1280 x 720 pixels
- Interface: Multi-Touchscreen
- Dimensions: 9.4 Inch Width X 3.17 Inch Depth X 5.85 Inch Height
- Waterproof: IPX6/ IPX7 Rating Waterproof
- Sensor Compatibility: NMEA 2000 Compatible
Simrad 0015218001 Features & Benefits
- Features A Marine-Optimized C-MAP (R) DISCOVER ™ X Chart With A Fresh, Intuitive Chart Presentation And Daily Updates – Plus Support For C-MAP REVEAL ™ X Charts
- High Definition IPS Touch Screen With Extreme Viewing Angles, Even Viewable Through Polarized Lenses
- Support For High Resolution Views Of Fish And Structure With Active Imaging ™ Featuring CHIRP, SideScan And DownScan Imaging ™, Plus 1 Kilowatt Transducer Capability To Reach Greater Depths
- Setup Wizard To Get You Up And Running Quickly, Plus Simpler Sonar Setup
- Full Integration With Capability To Expand System With Simrad ® Sonar, Autopilot, Radar, And More
- Faster Autorouting With Seamless Accessibility
- See Near And Far Simultaneously (Up To 42nm), With HALO ® Radar Support And Get Ultra-Fast Updates Every Second
- Stay On Course With Full Simrad ® Autopilot Integration
- Modern And Straightforward Interface
- Limited 2 Year Warranty
Simrad 0015218001 Installation Instructions
Simrad 0015218001 Warranties
Simrad 0015218001 Technical Bulletins
NSX™ 3009 9" Chartplotter & Fishfinder - Display Only - No Transducer
Everything about NSX™ is designed to bring your fishing adventures closer. Enjoy our fastest-ever Autorouting and next-gen C-MAP® charts. Experience intuitive touch screens and a simple sonar setup with hints to assist you when you need it. Count on high-resolution imagery from state-of-the-art sonar technology, like FishReveal™, DownScan Imaging™, and SideScan.
Add compatibility with a wide range of 1 kW transducers for even more target resolution, and there is nothing between you and your next adventure but open water.
An Intuitive Touchscreen Experience
Easily access all NSX™ features via a modern and simple interface, including drag-and-drop screen customization and enhanced day and night modes. Get crystal clear views of chart detail with the vibrant SolarMAX™ IPS touchscreen - viewable from any angle, in direct sunlight, and even through polarized lenses.
Bring Navigation to Life with NSX™
See map details in a different way with next-generation C-MAP® DISCOVER™ X and REVEAL™ X marine-optimized charts for day and night. Experience our fastest-ever Autorouting and with the Simrad® Companion App plan trips, review Tracks, plot Waypoints, and sync directly.
Full Suite of Simrad® Technology at Your Fingertips
Expand your system with advanced Simrad® technology. Experience high-resolution imagery from state-of-the-art sonar technology, like Active Imaging™, as well as compatibility with a wide range of 1 kW transducers. Identify hazards immediately and see near and far simultaneously with award-winning pulse compression HALO® radars, and stay on course with legendary Simrad® Autopilots.
Simple to Set Up, Easy to Manage
Get up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the Simrad® App allows access to the best planning tools and hassle-free software updates and data transfer.
Features:
- Features a marine-optimized C-MAP® DISCOVER™ X chart with a fresh, intuitive chart presentation and daily updates – plus support for C-MAP REVEAL™ X charts
- High definition IPS touch screen with extreme viewing angles, viewable through polarized lenses
- Support for high-resolution views of fish and structure with Active Imaging™ featuring CHIRP, SideScan, and DownScan Imaging™, plus 1kW transducer capability to reach greater depths
- Setup Wizard to get you up and running quickly, plus a simpler sonar setup
- Full integration with the capability to expand the system with Simrad® sonar, autopilot, radar, and more
- Faster Autorouting with seamless accessibility
- See near and far simultaneously (up to 48nm), with HALO® Radar support and get ultra-fast updates every second
- Stay on course with full Simrad® autopilot integration
- Clean and simple interface
- Simrad® App integration – keep your chart data at your fingertips, both on and off the water
- Third-party app integration
- Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability
- IP Video Support
SKU: NVN-93523
MPN: 000-15218-001
UPC: 9420064110056
Technical specifications
| Brand | Simrad |
| Model | Simrad NSX™ 3009 9" Combo Chartplotter & Fishfinder - Display Only - No Transducer |
| SKU / MFR# | 93523 |
