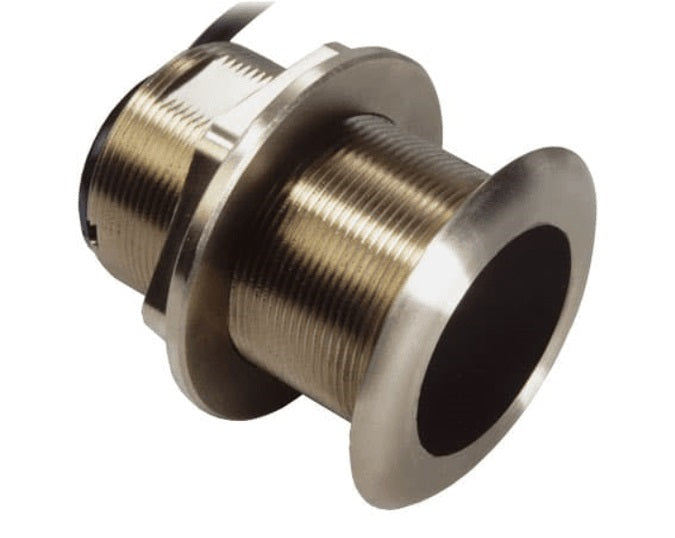

Simrad B60 12 Deg 50/200KHZ Black 9-Pin Thru Hull with 10m Cable
Simrad B60 12 Deg 50/200KHZ Black 9-Pin Thru Hull with 10m Cable — Product description
Why Choose the Simrad B60 Thru-Hull Transducer for Your Boat?
Equipped with dual-frequency technology, this bronze thru-hull transducer delivers reliable depth and water temperature readings, making it a go-to choice for anglers and boaters navigating coastal waters or inland lakes. Its 12-degree tilted element design ensures optimal beam projection even on hulls with moderate deadrise angles, providing crystal-clear sonar returns without compromising your vessel's hydrodynamics.
Ideal for smaller center-console or trailered boats up to 25 feet, the low-profile housing protrudes just 3/16 inch beyond the hull, minimizing drag and allowing you to push your boat to top speeds without interference. Whether you're tracking fish in shallow bays with the wide 45-degree beam at 50 kHz or pinpointing structure in deeper water using the focused 12-degree beam at 200 kHz, this sensor excels in delivering precise data for safer, more productive outings.
Standout Features for Superior Performance
- Dual-Frequency Powerhouse: 50 kHz reaches depths up to 1,200 feet with a broad coverage beam, while 200 kHz offers high-resolution imaging down to 700 feet—perfect for switching modes based on your fishing depth.
- Rugged Bronze Construction: Built to withstand harsh marine environments, the urethane acoustic window protects the ceramic element for consistent echo returns season after season.
- Seamless Integration: 9-pin connector and 10-meter cable length simplify wiring into your existing Simrad ecosystem, supporting displays that handle 600W power output.
- Temperature Sensing: Accurate water temp data helps you locate thermoclines where baitfish school, giving you an edge in competitive fishing scenarios.
- Boat-Friendly Design: Suited for fiberglass or wood hulls with 8-15 degree deadrise; the tilted element aligns perfectly to avoid air bubbles and signal loss.
Understanding Beam Widths and Depth Capabilities
The magic of this transducer lies in its beam versatility. At 50 kHz, the generous 45-degree beam sweeps a wide swath beneath your boat, ideal for bottom contour mapping and spotting large schools over vast areas. Switch to 200 kHz for that narrow 12-degree pencil beam, and you'll get detailed separation of individual fish or wrecks, even in cluttered waters.
With a total power handling of 600W, it punches through thermoclines and soft bottoms better than entry-level sensors, ensuring you rarely miss a strike zone. Boaters report enhanced target definition compared to flush-mount alternatives, especially on planing hulls where speed matters.
Effortless Installation for DIY Enthusiasts
Installing a thru-hull transducer doesn't have to be a headache. Start by selecting a spot forward of the propeller and keel line, at least 1/3 of the hull length from the stern, to avoid turbulence. Drill a clean 2-3/8 inch hole (60mm) in fiberglass or wood hulls—use a marine sealant like 3M 4200 around the edges for a watertight fit.
The 12-degree tilt compensates for hull angle, so bed the unit fair to the waterline using the included template. Route the 10m cable through existing conduits, securing it away from engines and bilge pumps. Fairing blocks can further optimize performance on stepped hulls. Full install takes under two hours for most setups, and its lightweight 3 lb design keeps things manageable.
"Pro tip: Clean the hull interior thoroughly before mounting to prevent trapped air pockets that could degrade signals at speed."
Long-Lasting Reliability with Simple Care
To keep your B60 performing like new, inspect the face annually for marine growth—polyurethane windows resist fouling but benefit from a gentle wipe-down with a soft brush and boat soap. Avoid high-pressure washes that could damage the element. In saltwater, flush the thru-hull fitting seasonally to ward off corrosion on the bronze body.
Store trailered boats with the transducer raised or protected during off-seasons. With proper upkeep, expect years of trouble-free service, outperforming plastic housings in durability tests.
Frequently Asked Questions
What boats is the Simrad B60 best suited for?
It's optimized for center-console and trailered boats up to 25 feet (8m) with fiberglass or wood hulls and 8-15 degree deadrise, offering minimal drag for planing hulls.
Does this transducer support both depth and temperature sensing?
Yes, it provides accurate depth readings across dual frequencies plus reliable water temperature data for locating fish-holding zones.
What's the difference between 50 kHz and 200 kHz on this model?
50 kHz uses a wide 45° beam for maximum coverage up to 1,200 feet, while 200 kHz's narrow 12° beam delivers high-detail resolution to 700 feet.
How much does it protrude from the hull?
Only 5 mm (3/16 inch), ensuring negligible impact on boat speed or fuel efficiency.
Can I install it on a hull with deadrise?
Absolutely—the 12-degree tilted element is designed for hulls with 8-15 degree deadrise, aligning the beam parallel to the water surface.
What cable length is included?
A 10-meter cable provides ample reach for routing to your chartplotter or fishfinder console.
Is the housing suitable for saltwater use?
Yes, the bronze housing offers excellent corrosion resistance in saltwater, paired with a tough urethane window.
Simrad B60 Xsonic 50/200kHz Bronze Thru-hull 12 Degree Tilted Element
Model: 000-16186-001- Depth and water temperature
- 600 W
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Perfect for center-console or trailered boats
- Low-profile protrusion extends only 5 mm (3/16"") outside the hull
- No effect on your boat’s running performance
- Bronze housing
The B60 is a Bronze, thru-hull, dual-frequency, depth and temperature transducer. The ceramic element gives excellent echo returns for more accurate depth readings.
Specifications| Weight | 1.4 kg (3 lb.) |
| Recommended Boat Length | Up to 8 m (25') |
| Hull Material | Fiberglass or wood |
| Hull Deadrise | 8°-15° |
| Acoustic Window | Urethane |
| Hole Diameter | 60 mm (2-3/8"") (fiberglass or wood hull) |
SKU: NVN-1004022
MPN: 000-16186-001
UPC: 9420064132126
Technical specifications
| Brand | Simrad |
| Model | Simrad B60 12 Deg 50/200KHZ Black 9-Pin Thru Hull with 10m Cable |
| SKU / MFR# | 1004022 |
