Simrad SS175M 0D Tilt 80-130KHZ Stainless Steel
Simrad SS175M 0D Tilt 80-130KHZ Stainless Steel — Product description

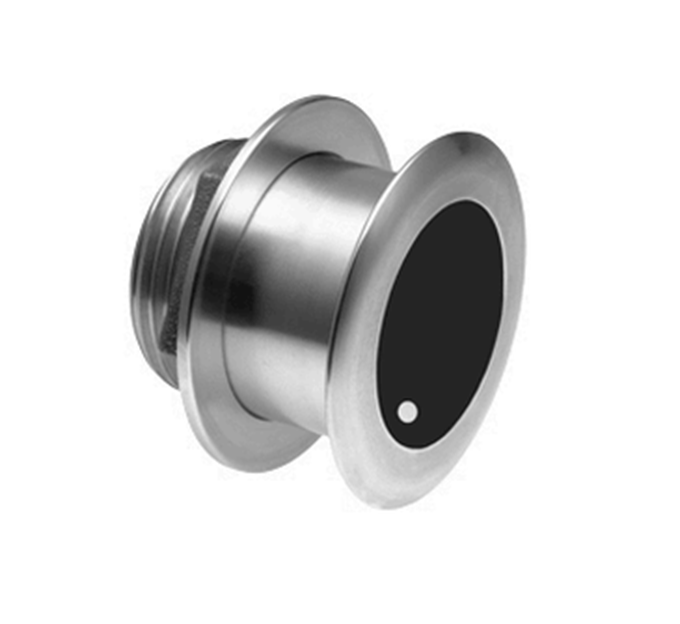

Simrad SS175M 0° Tilt CHIRP Transducer - Stainless Steel Thru-Hull (80-130kHz)
Professional-Grade CHIRP Sonar Performance for Sport Fishing and Commercial Vessels
The Simrad SS175M stainless steel thru-hull CHIRP transducer delivers exceptional fish finding capabilities and bottom mapping precision for vessels up to 25 feet. Engineered with medium CHIRP technology (80-130kHz), this professional-grade transducer strikes the perfect balance between deep water penetration and superior target resolution that serious anglers and commercial operators demand.
Advanced xSonic CHIRP Technology
Built on Airmar's proven CHIRP architecture, the SS175M transmits across the complete 80-130kHz frequency spectrum simultaneously, providing dramatically improved fish detection and bottom discrimination compared to traditional single-frequency transducers. The medium frequency range offers optimal performance in depths up to 1,500 feet while maintaining exceptional target separation in shallow and mid-depth waters.
Professional Marine Construction
- Premium 316L stainless steel housing for maximum corrosion resistance
- 0° tilted ceramic element optimized for flat-bottom hulls
- Flush-mount design minimizes hull turbulence and drag
- Integrated water temperature sensor for precise readings
- 1kW power handling for deep water performance
- 33-foot marine-grade cable with 9-pin xSonic connector
- Compatible with fiberglass, wood, and aluminum hulls
Technical Specifications
- Frequency Range: 80-130kHz Medium CHIRP
- Power Rating: 1kW
- Beam Angle: 0° tilted element
- Maximum Depth: 1,500 feet (457m)
- Cable Length: 33 feet (10m)
- Connector Type: 9-pin xSonic black
- Housing Material: 316L Stainless Steel
- Temperature Sensor: Integrated fast-response
- Recommended Vessel Size: Up to 25 feet (8m)
- Hull Compatibility: Fiberglass, wood, aluminum
Installation and Compatibility
The SS175M's 0° tilted element configuration makes it ideal for flat-bottom hull installations or vessels with minimal deadrise angles. The low-profile stainless steel housing mounts flush with the hull bottom, reducing drag while maintaining optimal acoustic performance. Compatible with all Simrad, Lowrance, and B&G fishfinders and chartplotters equipped with xSonic CHIRP technology.
Superior CHIRP Performance Benefits
Medium CHIRP technology provides the optimal balance between depth penetration and target resolution. Unlike traditional single-frequency transducers, CHIRP delivers continuous frequency sweeps that create detailed fish arches, precise bottom tracking, and superior noise rejection. The result is exceptional fish detection capabilities in both shallow structure fishing and deep water trolling applications.
Marine Professional Standards
Engineered to NMEA and Simrad's rigorous marine standards, the SS175M includes a comprehensive 2-year limited warranty. The professional-grade construction and materials ensure reliable performance in demanding commercial and recreational marine environments.
Frequently Asked Questions
What hull types are compatible with the SS175M 0° transducer?
How does CHIRP technology improve fish finding performance?
What fishfinders are compatible with this transducer?
What is the maximum depth capability of this transducer?
Does this transducer include water temperature sensing?
The SS175M is a stainless steel, thru-hull CHIRP transducer, ideal for sport fishing and commercial vessels up to 8 Meter in length. This single-channel transducer offers Medium CHIRP for a balance between the great depth penetration of Low CHIRP, and the superior target resolution of High CHIRP.
Simrad 0013777001 Attributes
- Mounting Location: Thru-Hull Mount
- Number Of Pins: 9 Pin
- Frequency Range: 85-135 kHz Medium Frequency Single Channel CHIRP Transducer
- Supported Angle: 0 Degree Tilt
- Cable Length: 33 Feet
Simrad 0013777001 Features & Benefits
- Through Hull Flush Mount Transducer
- Black 9 Pin Connector
- Constructed From Stainless Steel
- 85 Kilohertz To 135 Kilohertz Medium CHIRP
- Limited 2 Year Warranty
Simrad 0013777001 Warranties
Simrad SS175M Stainless steel CHIRP Thru Hull with 0 Degree Tilted Element
Model: 000-13777-001- 80-130 kHz Medium CHIRP frequencies
- Suitable for fiberglass and wood hulls
- 1 internal broadband ceramic
- Thru-hull with stainless steel housing
The SS175M is a stainless steel, thru-hull CHIRP transducer, ideal for sportfishing and commercial vessels up to 8 m (25 ft) in size.
"Rely on Simrad's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 10,000' (3,000 meter) with 5 to 10 time's greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. This transducer is designed for smaller boats up to 36' (11 meters). M Model has a medium frequency of 85-135 kHz and is a 0 tilt version. 50 kHz of total bandwidth from one transducer, covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth. Depth & fast-response water-temperature sensor. The SS175M Transducer has a stainless steel housing and is designed for boats with steel or aluminum hulls. The transducer has a power rating of 1 kW at 1% duty cycle 2.5\" (65 mm) PZT with an active area of 5.1 sq. in. (33 sq.cm.). The transducers radiating surface is a urethane design with a Q equaling 2. The cable is a C335 type and measures 33' (10 meters) in length. The transducer comes with mounting hardware and an owner's manual. Notes: (1) dB re 1 Pa per volt at 3' (1 meter) (2) dB re 1 volt per Pa (3) sum of transmitting voltage response and receiving voltage response (4) CW Power ratings is for 68 F (20 C) seawater temperature."
SKU: NVN-1001436
MPN: 000-13777-001
UPC: 9420024161883
Technical specifications
| Brand | Simrad |
| Model | Simrad SS175M 0D Tilt 80-130KHZ Stainless Steel |
| SKU / MFR# | 1001436 |
