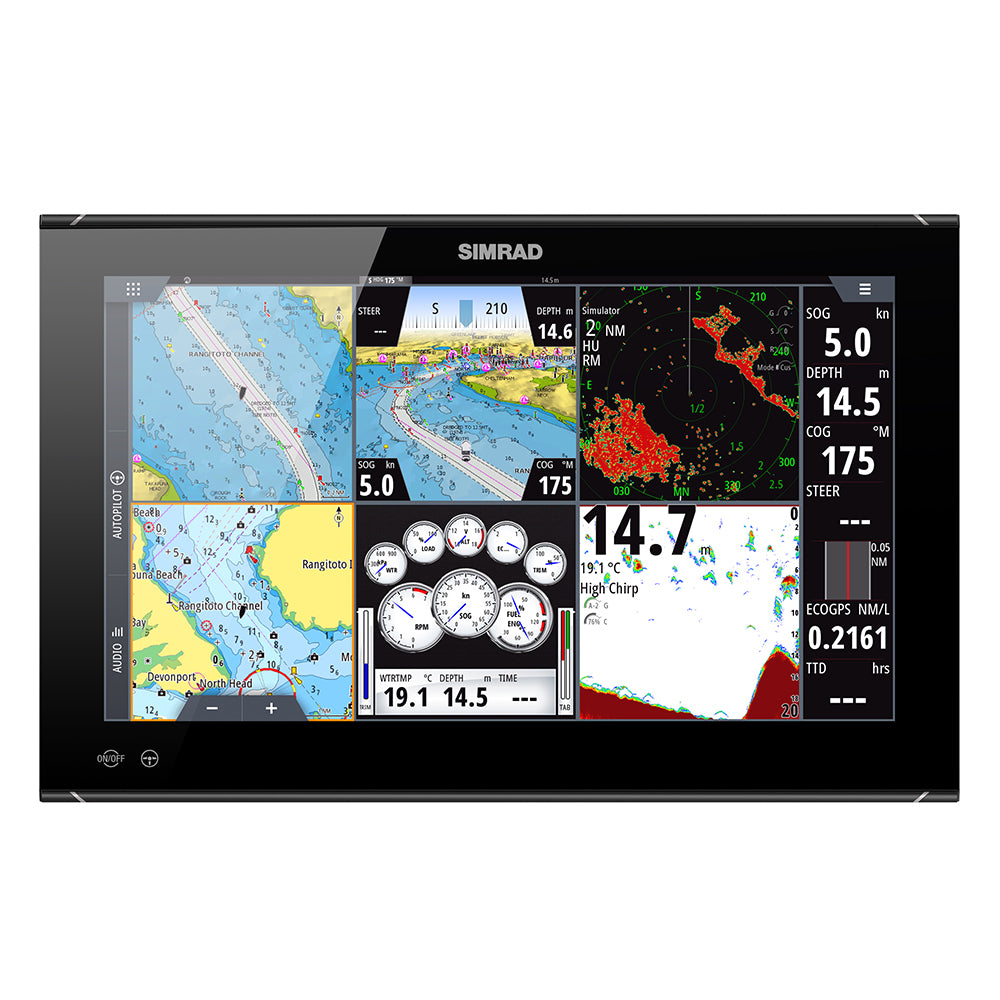

Simrad NSO evo3S 19" MFD Display Only
Simrad NSO evo3S 19" MFD Display Only — Product description
Transform Your Helm with Professional-Grade Visibility
Imagine commanding your vessel with crystal-clear visuals that cut through glare and deliver every detail, no matter the conditions. The Simrad NSO evo3S 19-inch MFD stands out in glass helm setups, offering an ultra-bright display that's readable from any angle—even through polarized lenses. Boaters rave about its Full HD resolution, which brings charts, sonar images, and radar sweeps to life with stunning precision. Whether you're plotting a course across open waters or dodging obstacles in a busy marina, this display ensures you never miss a beat.
Why It Excels in Real-World Boating
- Handles harsh marine environments with ease, from pounding waves to blazing sun.
- Supports custom multi-panel views, letting you monitor up to six feeds simultaneously—like radar overlay on charts plus engine data.
- Boosts safety and efficiency, helping skippers make faster, smarter decisions on the water.
Effortless Navigation at Your Fingertips
Glove-friendly multi-touch interface means pinch-to-zoom on charts or swipe through menus feels natural, even in rough seas. Pair it with optional keypads for those moments when tactile feedback trumps touch. Connect autopilot, radar, or sonar effortlessly, and watch your boat respond instantly to commands. It's like having a professional bridge officer's console tailored for recreational or commercial use.
Lightning-Fast Processing for Demanding Tasks
Powered by a robust integrated processor, this MFD delivers lag-free performance across complex functions—from rendering high-detail StructureScan 3D imagery to real-time radar processing. Cruising enthusiasts appreciate how it juggles multiple data streams without skipping, ensuring you're always one step ahead of changing conditions.
Sleek, Customizable Glass Helm Integration
Craft a helm that matches your vessel's style, from sleek modern yachts to classic cruisers. Flush-mount the low-profile unit for a seamless look, and switch between personalized layouts on the fly—fishing mode with sonar dominance, or passage planning with full chart coverage. It's the backbone of modular systems that grow with your boating needs.
Seamless System-Wide Connectivity
Wireless links to phones and tablets let you monitor from the flybridge or cabin, while Ethernet, NMEA 2000, and J1939 open doors to engine monitoring, digital switching, and more. Update software over Wi-Fi hotspots without downtime, keeping your setup cutting-edge.
Key Connections Overview
- Ethernet ports for high-speed networking
- NMEA 2000 and 0183 for legacy and modern sensors
- HDMI and composite video inputs/outputs for cameras or PC mirroring
- USB and microSD for peripherals and charts
- Bluetooth/Wi-Fi for mobile integration
Complete Kit for Quick Installation
Everything you need to get started ships in one box: the display unit, protective suncover, versatile bezels, power cable setup, Ethernet adapter, NMEA connectors, documentation, cable retainers, and panel mount hardware. Note: This is display-only—add external GPS, transducers, or charts separately to unlock full potential.
Detailed Specifications at a Glance
| Category | Details |
|---|---|
| Display | 19-inch AHVA TFT, 1920x1080 Full HD, 1200 nits brightness, 80° viewing angles |
| Processor & Storage | Quad-core processor, 16GB internal, microSD slot (up to 32GB) |
| Power | 10-32V DC, max 55W, 7A fuse recommended |
| Environmental | -15°C to +55°C operating, IPX6 front (panel mounted) |
| Dimensions & Weight | 478x305x83mm, 4.8kg |
| Networking | 3x Ethernet, NMEA 2000/0183, Wi-Fi, Bluetooth |
Pro Tips for Maximizing Your Setup
Integrate with Halo radars for collision avoidance or StructureScan for fish-finding prowess. Customize pages for night cruising with dimmable backlighting. For larger vessels, daisy-chain multiple units into a unified glass bridge that rivals superyacht tech—without the complexity.
Frequently Asked Questions
Does the Simrad NSO evo3S 19-inch MFD include built-in GPS?
No, this is a display-only unit. An external GPS antenna, such as a GS25, is required for positioning data.
Can I use this MFD with polarized sunglasses?
Yes, its wide viewing angles and anti-glare technology ensure readability even with polarized lenses, from multiple helm positions.
What types of charts does it support?
It comes with a world basemap and supports Insight, Navionics, C-MAP, and NV Digital charts via microSD.
Is sonar built-in, or do I need extra modules?
Sonar requires an external echo sounder module or sharing from another networked MFD.
How many displays can I network together?
Network up to six NSO evo3S units via Ethernet for expansive glass helm configurations.
What autopilot features are available?
Full support for modes like Auto, Nav, No Drift, and various turn patterns when connected to compatible Simrad autopilots.
Can I control it with a keypad?
Yes, optional OP40 or OP50 keypads connect via NMEA 2000 for precise control in gloves or wet conditions.
NSO evo3S 19" MFD Display Only
Ultimate Clarity
NSO evo3S delivers the ultimate view with an ultra-bright 19-inch display, ideal for both indoor and outdoor installations. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. See more than ever with Full HD resolution, and the option to combine up to six panels in a split-screen layout.
Intuitive Control
A responsive, multi-touch display places control of your on-board electronics at your fingertips. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar with a touch. A range of optional keypads add classic controls, perfect for fine adjustments or use in rough conditions.
Swift Response
Every NSO evo3S display features an integrated six-core processor for ultimately smooth response, from charting to StructureScan® 3D imaging. Enjoy swift access to the information you need, as you need it, whether you’re cruising the open ocean or carefully navigating a crowded harbour.
Glass Helm Style
NSO evo3S glass helm systems offer the perfect combination of form and function. Create your own custom helm layouts to suit any activity, and switch seamlessly between those layouts in an instant. Low-profile glass helm styling complements any helm design, from ultra-modern to timeless classic.
Fully Connected
Built-in wireless connectivity links NSO evo3S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, engine integration, and much more.
Features:
- Ultra-bright, Full HD 19-inch display
- Easy touchscreen control of your entire Simrad system
- Integrated six-core processor for ultimate performance
- Low-profile glass helm styling
- See more than ever with six-panel split screen option
- Connect with smartphones, tablets, and internet hotspots
In The Box:
- Display unit
- Suncover
- Bezels
- Power cable and connector block
- RJ45 to 5-pin Ethernet adapter cable
- NMEA 0183 connector block
- Documentation pack
- Cable retainer kit
- Panel mounting kit
Connections:
- NMEA 2000 - NMEA 2000 data
- J1939 - J1939 engine data
- USB - mouse, keyboard or mass storage
- NETWORK 1-3 - Ethernet network
- SD - microSD card reader
- HDMI OUT - HDMI video output
- VIDEO IN - composite video input
- HDMI IN - HDMI video input
- NMEA 0183 - NMEA 0183 data
- POWER - 12 - 24 V DC input, external alarm and power control
Simrad NSO evo3S 19" MFD
Display Only
Model: 000-15049-001- Ultra-bright, Full HD 19-inch display
- Easy touchscreen control of your entire Simrad system
- Integrated quad-core processor for ultimate performance
- Low-profile glass helm styling
- See more than ever with six-panel split screen option
- Connect with smartphones, tablets, and internet hotspots
NSO evo3S delivers the ultimate view with an ultra-bright 16-inch display, ideal for both indoor and outdoor installations. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. See more than ever with Full HD resolution, and the option to combine up to six panels in a split-screen layout.
A responsive, multi-touch display places control of your on-board electronics at your fingertips. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar with a touch. A range of optional keypads add classic controls, perfect for fine adjustments or use in rough conditions.
Every NSO evo3S display features an integrated quad-core processor for ultimately smooth response, from charting to StructureScan® 3D imaging. Enjoy swift access to the information you need, as you need it, whether you’re cruising the open ocean or carefully navigating a crowded harbour.
NSO evo3S glass helm systems offer the perfect combination of form and function. Create your own custom helm layouts to suit any activity, and switch seamlessly between those layouts in an instant. Low-profile glass helm styling complements any helm design, from ultra-modern to timeless classic.
Built-in wireless connectivity links NSO evo3S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, engine integration, and much more.
Specifications| Approvals | |
| Compliance | CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1 |
| Autopilot | |
| Manouevres / Turn Patterns | U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking |
| Steering Modes | Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail) |
| Connectivity | |
| Bluetooth | Internal |
| Ethernet | 3 x 100 Mbits/s ports, RJ 45. (Adapt to 5 pin yellow using adapter cable 000-11246-001) |
| NMEA 0183 | 2x NMEA0183 (IEC61162-1)2x NMEA0183-HS (IEC61162-2) |
| NMEA 2000 | 1 x NMEA 2000 Micro-C port, 1 LEN |
| PC Connectivity | HDMI Video in from a PC |
| Video | 2x composite video (BNC)1x high definition video (1080p, HDCP 1.4, HDMI-A)1x high definition video output (1080p, no HDCP, HDMI-A) |
| WiFi | Internal 802.11b/g/n |
| Display | |
| Backlight Color | White |
| Resolution | 1920x1080 |
| Screen Brightness | 1200 nits |
| Size and Type | AHVA 18.5" optically bonded TFT |
| Viewing Angles | 80° top/bottom, 80° left/right |
| Electrical | |
| Power Consumption, max. | 55 W +- 4 W |
| Recommended Fuse Rating | 7 A @ 12 V DC |
| Supply Voltage | 10 - 32 V DC |
| Environment | |
| Operating Temperature Range | -15°C to +55°C (5° F to 131° F) |
| Shock and Vibration | CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1 |
| Storage Temperature Range | "-20°C to +60°C (4°F to 140°F) |
| Waterproof rating | IPX6 on the font (when panel mounted correctly with only the front exposed) Rear not waterproof |
| MFD | |
| AIS | Receive AIS data over NMEA 2000 Or NMEA 0183 (IAS is not bridged to N2K) |
| Autopilot | Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission |
| Cartography included | World basemap |
| Cartography supported | Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts) |
| Digital Switching | BEP C-Zone, Naviop |
| External Storage | 1 Micro SD slot, or use USB Dashmount Card reader MI10 with 2x Micro SD slots. max. 32GB each. >32 GB format to NTFS |
| GPS | External GPS required |
| Internal Storage | 16 GB |
| Multimedia | via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only) |
| Radar (inc. compatibility) | Halo, Broadband, HD Radars |
| Sonar (inc. compatibility) | External echo sounder module or connection to an MFD with built in echo sounder that can share sonar over Ethernet is required. |
| Weather | SiriusXM via WM-3 (USA only), GRIB |
| Waypoints, Routes, Tracks | 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points. |
| Compass Safe Distance - Metric, imperial | 50 cm (19.7") |
| Physical | |
| Dimensions (W x H x D) | 478.1 x 305 x 83 mm (18.82 x 12.01 x 3.27") |
| With bracket | 509.9 x 348 x 214.6 mm (20.08 x 13.7 x 8.45") |
| Mounting Type | Panel or Bracket mount (use optional heavy duty bracket 000-13547-001 |
| Weight | 4.8 kg (10.5 lbs.) |
| Other | |
| Warranty Period | 2 Years |
| Interface | Touch screen, OP40 or OP50 controller via NMEA 2000 |
What's in the Box:
- OP50 keypad
- GS25 GPS antenna
- two slot micro-SD chart card reader
Build your ultimate navigation system around NSO evo3S. The new iMX 8 high-performance processor ensures quick response to every command you make, while the full HD display provides you with amazing clarity. Connect with GPS, radar, sonar, keyboard controller and other accessories to create an ideal whole ship system.
SKU: NVN-80898
MPN: 000-15049-001
UPC: 9420064105038
