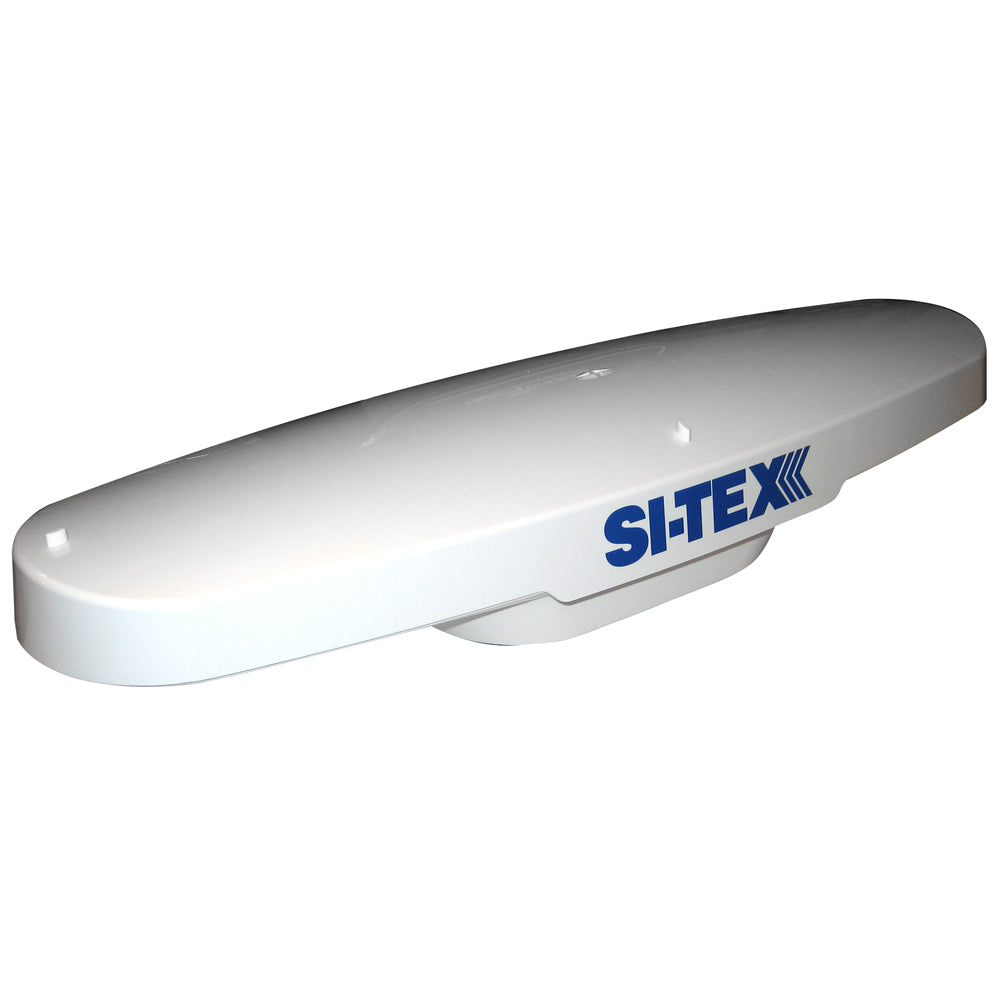

SI-TEX Vector Pro G2 (15) Gyro Compass

Vector Pro GPS Compass

The Vector Pro G2 GPS Compass is a state-of-the-art electronic navigation data device. It is capable of providing highly accurate, high-precision position and heading data to a wide variety of marine Navigation equipment, such as autopilots, sonar, radar, chartplotters, AIS receivers & transponders, and many other types of marine devices & systems.

The Vector Pro G2 features fast start-up and signal re-acquisition times, heading & position updates at up to 20 times per second, and can operate at sustained turn rates up to 90 degrees per second.

The Vector Pro G2 is a complete GPS Compass in a single rugged, marine-grade enclosure.

Precise 2D heading and positioning data

Heading accuracy of better than 0.5 degrees

Rate of turn tracking rates up to 90'/sec

Provides Heave, Pitch & Roll information

Pitch and roll accuracy of better than 1 degree

Fully compatible with Autopilot, Radar, AIS, PC, Sonar

Better than 1 meter differential position accuracy (DGPS/G2B)

Differential Correction source options include SBAS (WAAS, EGNOSand MSAS) and RTCM SC-104 data (External Source)

G2B can also use terrestrial DGPS Radio beacon signals

Integrated Gyro & Tilt sensors provide heading during momentary lossof satellite signals and speed up GPS signal reacquisition

Heading Position Updates up to 20 Hz

Multiple BAUD rate selections: 4800/9600/19200/38400

Pre-programmed default settings for Heading, Rate of TurnCourse over Ground, Lat/Long Geographic position, Time & Date

Heading solution for steel vessels

Waterproof-commercial grade IP67 standards

CE certified for EMI and RFI immunity

Optional 15m or 30m cable

IMO Compliant

Worldwide Service

Single power/data cable, which greatly simplifies installation.

Power Input 9 to 36 VDC

<360 mA@ 12 VDC, <5 w

Dimensions 23.6"L x 6.3"W x 7.1"H

Weight 3.3lbs

Whether you are a professional or a person who likes to cruise, you can make the most of your boat and time on the water! Based on the premise of considering the highest quality standards and reliability, each...
SKU: NVN-28875
MPN: VECTORG2
UPC: 010407510422
