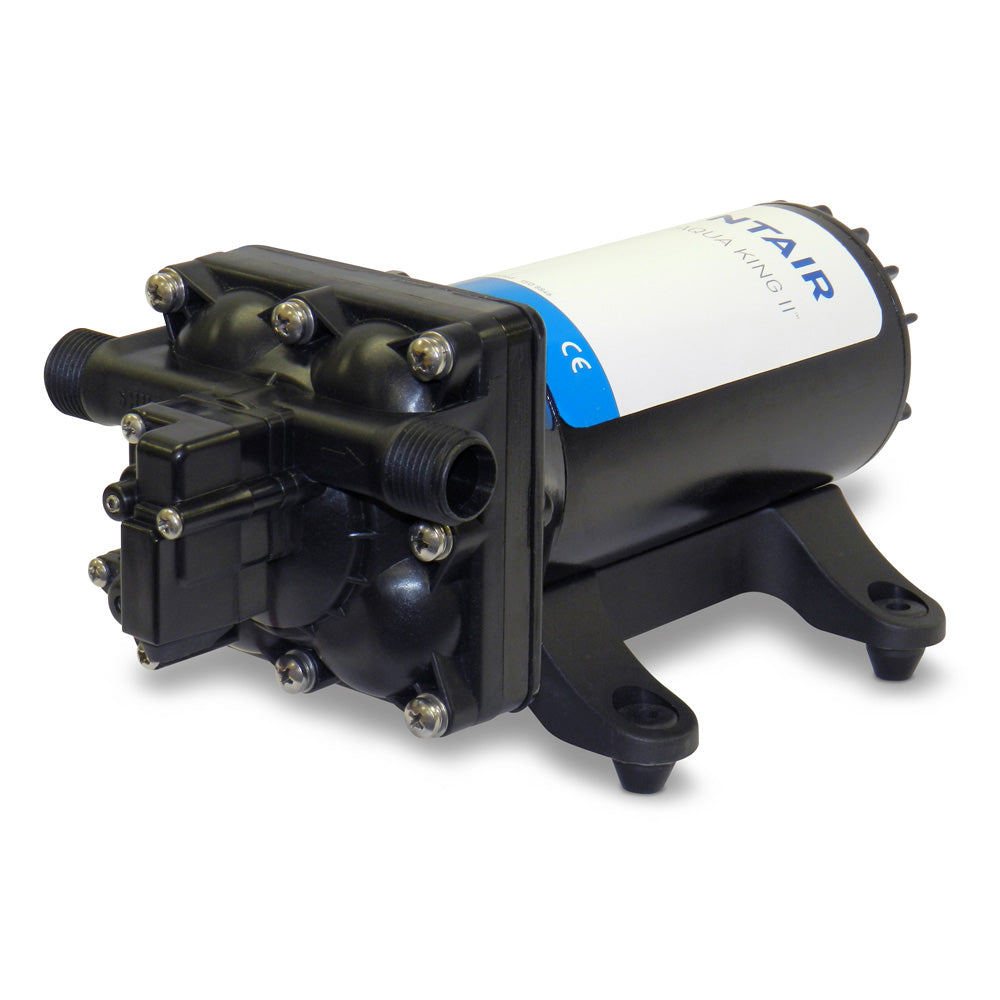

Shurflo by Pentair AQUA KING™ II Premium Fresh Water Pump - 12VDC, 4.0 GPM

The Shurflo Aqua King II Premium Fresh Water Pumps are designed for boats with multi-fixtures providing "just like home" pressure. A built in mechanical bypass function enables these pumps to operate at lower flow conditions with minimal cycling. Featuring heavy duty, seamless shell electro coated motors built to withstand the tough marine environment with O-ring sealed end bells and completely sealed wired entries.

SHURflo 4148153E75 Attributes

• Pump Operation: 12 Volt DC
• Flow Rate: 4 Gallon Per Minute
• Type: Diaphragm
• Pressure Rating (PSI): 55 Pound Per Square Inch
• Length (IN): 10 Inch
• Width (IN): 5 Inch
• Height (IN): 4-3/4 Inch
• Material: Polypropylene
• With Thermal Overload Protection: Yes
• With Pressure Switch: No

SHURflo 4148153E75 Features & Benefits

• Sealed Switch
• Ignition Protected
• Thermally Protected
• Features Inlet Strainer And 2 Each 1/2 Inch Hose Barb Fittings Are
• Limited 3 Year Warranty

SHURflo 4148153E75 Technical Bulletins

• 911-1026.pdf

AQUA KING™ II Premium Fresh Water Pump - 12VDC - 4.0 GPM

SHURFLOr's AQUA KING II fresh water pump is designed for boats with multi-fixtures providing "Just like home" shower pressure, and can operate at lower flow conditions with low cycling. A built in mechanical bypass function enables these pumps to vary the flow rate for any on demand condition, without the need for an accumulator. With a heavy duty motor built to withstand the tough marine environment, this motor features an electro-coated seamless shell motor, O-ring sealed end bells, and complete sealed wire entries on the motor shell and pressure switch. The AQUA KING II fresh water pump can run dry without damage. Inlet strainer and 1/2" hose barb fittings are included (aftermarket models only). Ignition protected. Thermally protected.

Features:

• 4901 Replacement

• Sealed Switch

• Sealed Motor

• Corrosion Resistant Electro

• Coated Motor

• Independent Chambers

• Built-In Check Valve

• Co-Molded Diaphragm

• Adjustable Switch & By-Pass

• Self-Priming up to 6 Feet

• Dry Run Capability

• Thermally Protected

• Ignition Protected, CE

Shurflo Aqua King II fresh water pump 12V is specially designed for boats with multiple fixed devices, can provide "just like home" shower pressure, and can operate under lower flow conditions, and has the following functions:
SKU: NVN-56056
MPN: 4148-153-E75
UPC: 752324011858
