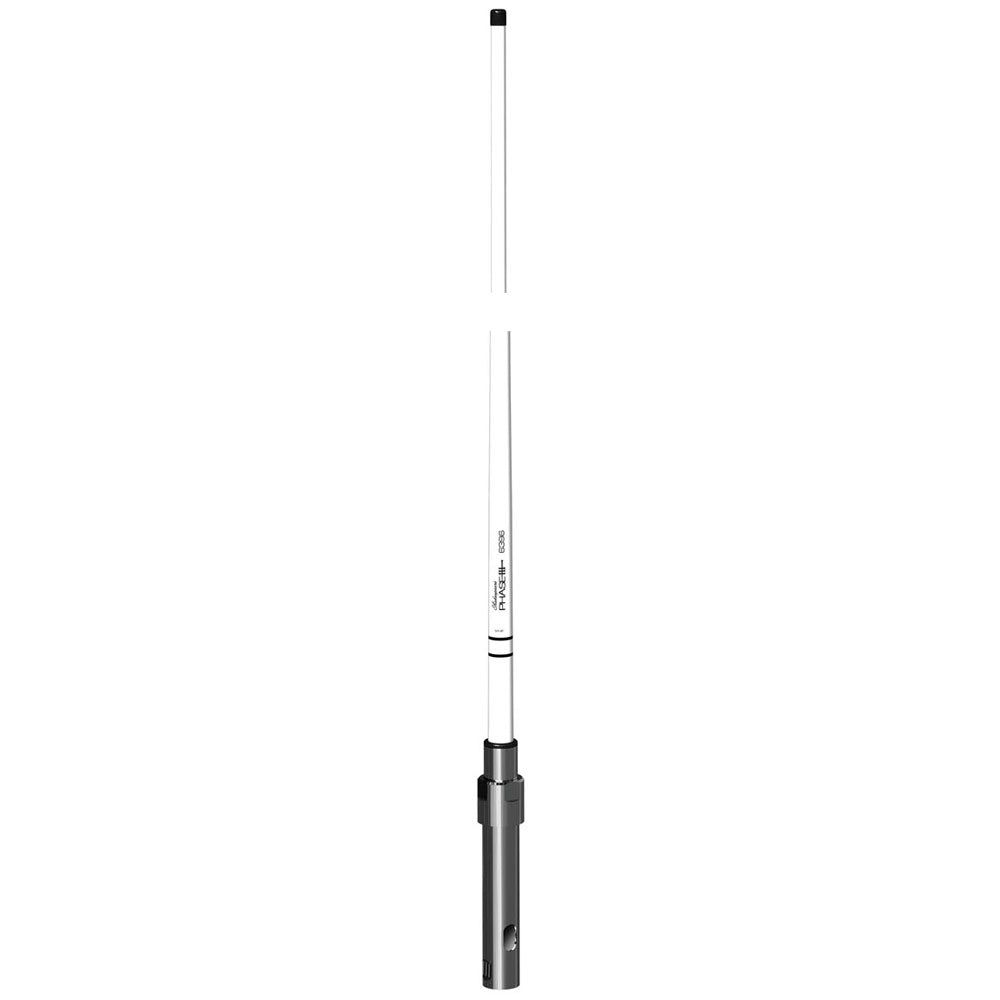

Shakespeare AIS 4ft Phase III Antenna

Specially engineered and tuned to match AIS transceivers, this Phase III™ antenna enable reliable communication over marine AIS frequencies. Ethafoam spacers, thick radome, and silver-plated elements enhance the antenna’s technical performance and long

Shakespeare 6396AISR Attributes

• Bandwidth: 5 Mega Hertz With 2.0:1 VSWR
• Color: White
• Compatibility: AIS Transceivers
• Connection Type: S0-239 Connector
• Gain: 3 dB
• Length: 4 Feet
• Material: Fiberglass
• Mounting Type: Ratchet Mount
• Power: 50 Watt

Shakespeare 6396AISR Features & Benefits

• Silver-Plated Elements Provide Maximum Range, Clarity, And Efficiency
• Stainless Steel Mounting Sleeve Provides Greater Durability And Rust Prevention
• SO-239 Quick Connect Allows For Removal Or Installation Of The Antenna Without Twisting Or Reinstalling The Coax Cable
• 12-Sided Facet Indexes And Prevents The Antenna From Rotating During Installation
• Ethafoam Spacer System Isolates The Radiators From Vibration For Long, Dependable Service
• Thick Fiberglass Radome Finish Is A Durable High-Gloss, White Polyurethane Finish To Prevent Yellowing
• Limited 8 Year Warranty

PHASE III 6396-AIS-R 4' AIS Antenna 3dB Gain

Specially engineered for the extra bandwidth required by AIS transceivers, this Phase IIIT antenna enables reliable communication over marine VHF frequencies.

• Silver-plated outer conductor, copper inner conductor

• Stainless steel mounting sleeve

• SO-239/PL-259 connector

Specifications

• Max. Power Input: 50 watts

• SWR: Less than 1.5:1 at 162 MHz

• Bandwidth: 5 MHz within 2.0:1 VSWR

• Frequency: VHF AIS Marine Band

• DC Grounding: Yes

• Pattern: Omnidirectional

• Polarization: Vertical

This Phase III antenna is specifically designed for the additional bandwidth required by AIS transceivers, enabling reliable communication on the marine VHF frequency. Insecticidal foam...
SKU: NVN-62623
MPN: 6396-AIS-R
UPC: 719441200688
