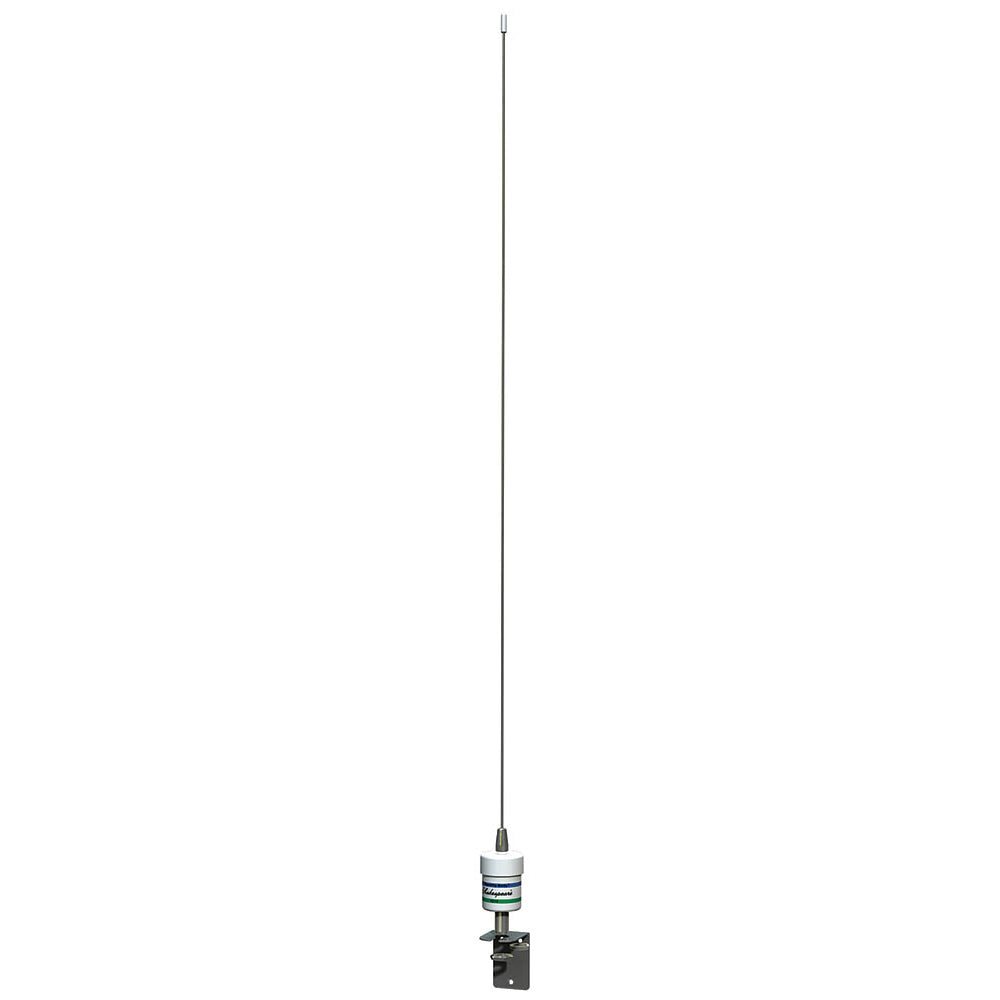

Shakespeare AIS 5215-AIS 36" Squatty Body® Antenna f/Sailboats

Built for value without compromising performance or durability, the Classic Series covers the widest variety of vessels in the Shakespeare® family. These antennas keep you connected and meet essential communication needs while offshore.

Shakespeare 5215AIS Attributes

• Bandwidth: 7 Mega Hertz With 2.0:1 VSWR
• Compatibility: AIS Transceivers
• Connection Type: S0-239 Connector
• Gain: 3 dB
• Length: 3 Feet
• Material: Stainless Steel
• Mounting Type: UL-Bracket Mount
• Power: 50 Watt

Shakespeare 5215AIS Features & Benefits

• Brass And Copper Elements Provide Standard Range And Reception
• Chrome-Plated Brass Or Nylon Ferrule With Standard 1: -14 Thread Provides For Basic Install
• Smooth, Durable, High-Gloss White/Fiberglass Finish Prevents Yellowing
• Single Section Antennas With 3 Decibel Gain And 50 Watt Max Input Power
• Does Not Contain A Built-In DC Ground Connection
• Limited 2 Year Warranty

Shakespeare Squatty Body®
Style 5215-AIS
3' (0.9m) VHF Marine Band 3dB

End-fed 1/2-wave stainless steel whip

Sailboat owners will love this version of their longtime favorite, our Style 5215. Its the same light weight, low-profile, stainless steel antenna, specially designed for masthead mounting and built with extra bandwidth for all popular AIS transceivers.

• Sealed, tin-plated copper wire coil

• Designed specifically for AIS transceivers

• SO-239 connector

• Stainless steel L-shaped bracket supplied for mounting

• One section

• For AIS applications

Best applications include: Sailboats

Shakespeare 5215-AIS Squatty Body® Specifications

• Band: VHF Marine Band

• Antenna Gain: 3dB

• Max. Input Power: 50 watts

• SWR: nominally 1.5:1 at 162 MHz

• Bandwidth: 7 MHz within 2.0:1 VSWR

• Ferrule: L-bracket and retaining nut, SO-239 connector

• Polarity: Vertical

• Impedance: 50 Ohms

• DC Ground: No DC Ground - The antenna will read open on continuity test.

• Shakespeare Limited Warranty: 2 years

Shakespeare’s chunky body type 5215-ais 3ft'0. 9m VHF nautical band 3db end fed with 1/2 wave stainless steel whip sailboat, ship owners will love this version they have long liked,...
SKU: NVN-44846
MPN: 5215-AIS
UPC: 719441100810
