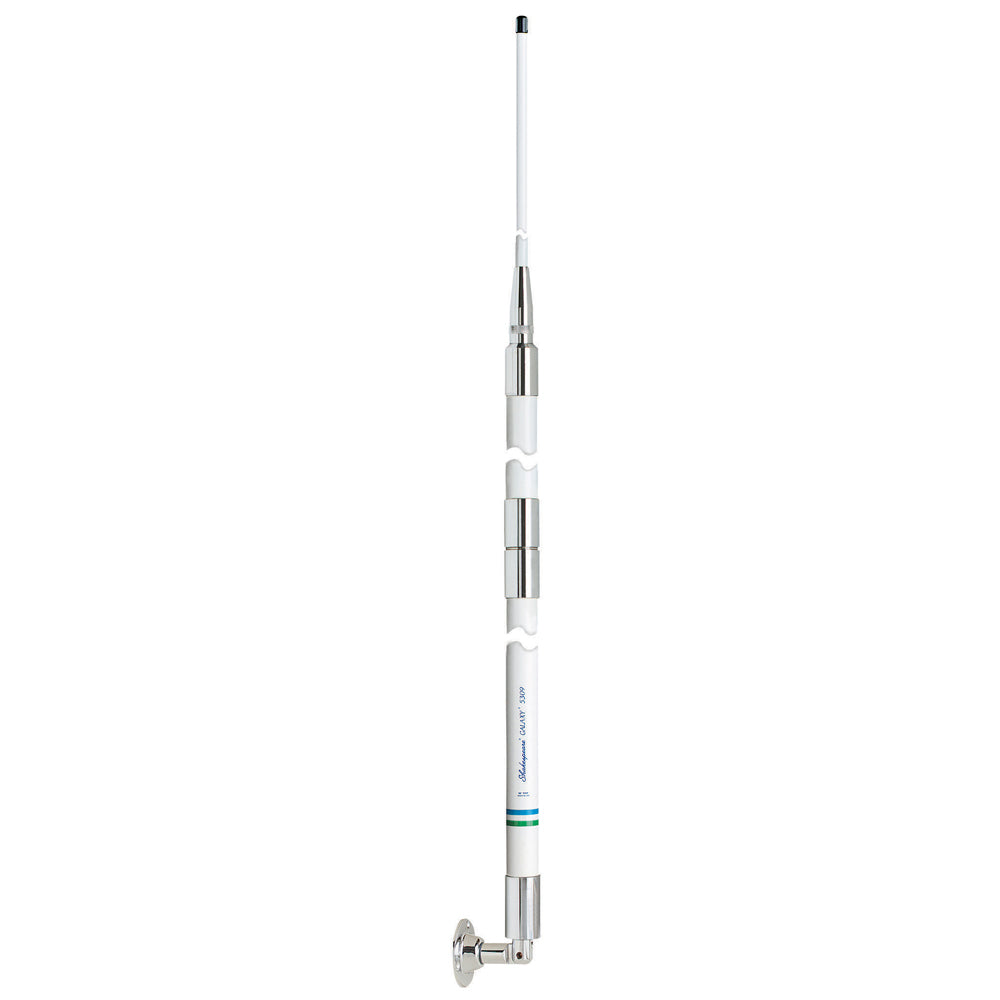

Shakespeare 5309-R 23' Galaxy VHF Antenna

Galaxy ® antennas have long been revered as the industry standard for both performance and quality. Following a 20-plus year tradition, Shakespeare ® Galaxy ® antennas ensure reliable communication through high-quality materials and master craftsmanship with each and every antenna.

Shakespeare 5309R Attributes

• Compatibility: VHF Marine Radio
• Type: Monopole
• Length: 23 Feet
• Gain: 9 dB
• Mounting Type: Surface Mount
• Color: White
• Material: Stainless Steel Ferrule

Shakespeare 5309R Features & Benefits

• Thick Brass And Copper Elements Provide Greater Range, Clarity, And Efficiency
• Stainless Steel Ferrule Prevents Rust
• High-Gloss Polyurethane Finish Prevents Yellowing
• Easy To Install
• Limited 5 Year Warranty

5309-R 23' Galaxy VHF Antenna

THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

Phased 1/2 wave elements in collinear array with a band spread matching sleeve and a choking stub to suppress cable radiation

This design invokes all the antenna engineers tricks to produce the clearest possible transmission and reception over the longest range.

Features:

• Brass and copper elements
• Stainless steel ferrule with standard 1"-14 thread
• Includes 20' RG-8/X cable and a PL-259 connector
• Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit (pictured mount not included)
• Two sections: Base 172", Tip 105"
• Twin to: Galaxy Style 5310-A HF/SSB
• Shakespeare Limited Warranty: 5 years
• Includes FME Cables

Technical Specifications:

Frequency:	VHF Marine Band
Bandwidth:	5 MHz within 2.0:1 VSWR
SWR:	nominally 1.5:1 at 156.8 MHz
Gain:	9 dB
Max Input (Watts):	150 watts
DC Ground:	NO
Height (feet):	23'
Polarization:	Vertical

Shakespeare·Outdoor·VHF·HF·Navigation·9 dBi gain has high performance, durable structure and beautiful appearance. The ferrule is mirror stainless steel. The proprietary high-gloss polyurethane topcoat will not yellow in the sun.
SKU: NVN-13176
MPN: 5309-R
UPC: 719441200121
