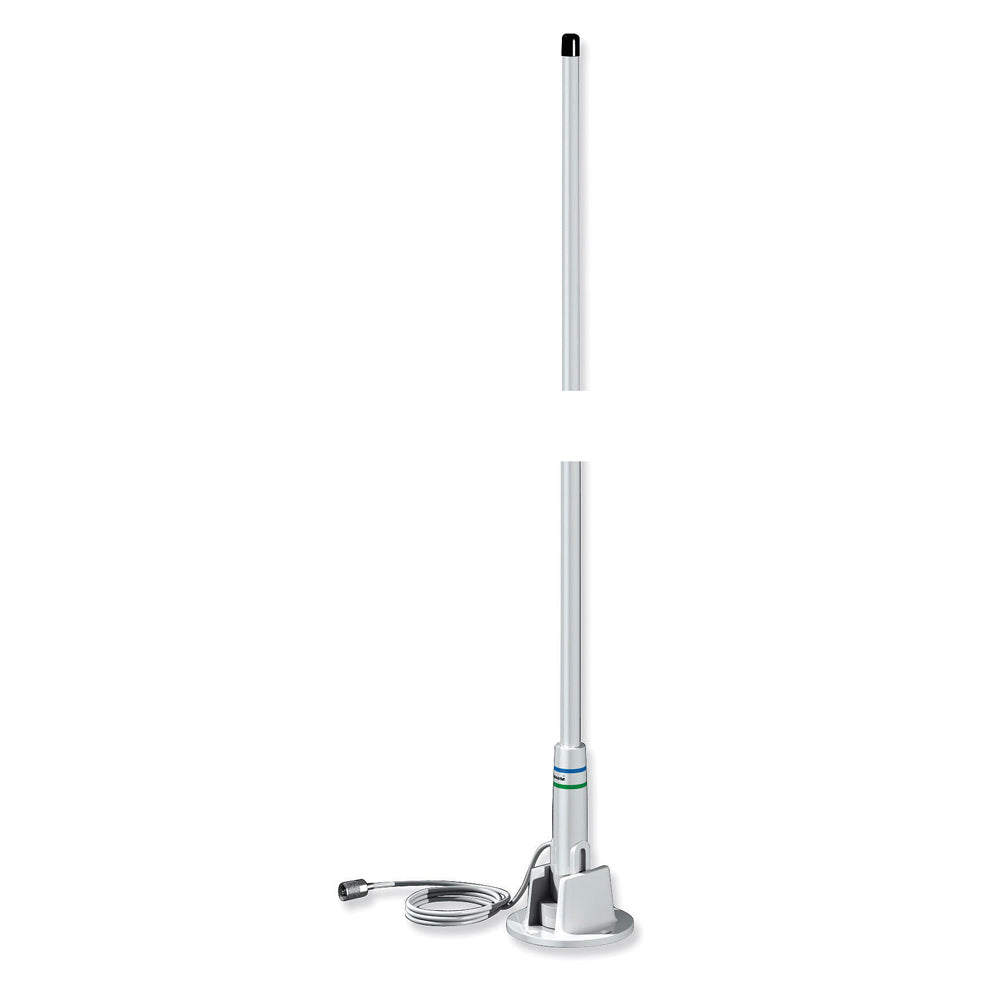

Shakespeare 4050-B 3' CB Antenna

Shakespeare Style 4050-B LITTLE GIANT™ CB Marine
3' LENGTH, Unity Gain

CONTINUOUS-LOAD, END-FED 1/2-WAVE CB ANTENNA

Great for bass boats and other boats where fishing over a 3' antenna is more desirable than greater range. Coil is permanently sealed in Shakespeare white fiberglass.

• Polycarbonate ferrule

• Includes 7' cable and PL-259 connector which cannot be cut or altered but can be lengthened with suitable connectors and extension coax (sold separately)

• Mount: Integral polycarbonate Lift-n-Lay mount with installation hardware included. Use Shakespeare Style 4000 Right Angle Bracket (sold separately) for side mounting.

• One section

• Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency:	27 MHz CB Marine Band
Bandwidth:	440 KHz
SWR:	2.0:1 at Channel 19
Impedance:	(Ohms) 50
Gain:	Unity
Max Input (Watts):	25
DC Ground:	YES
Termination:	7' cable
Height (feet):	3
Polarization:	Vertical
Radiation pattern:	Omni-Directional

SKU: NVN-10603
MPN: 4050-B
UPC: 719441800031
