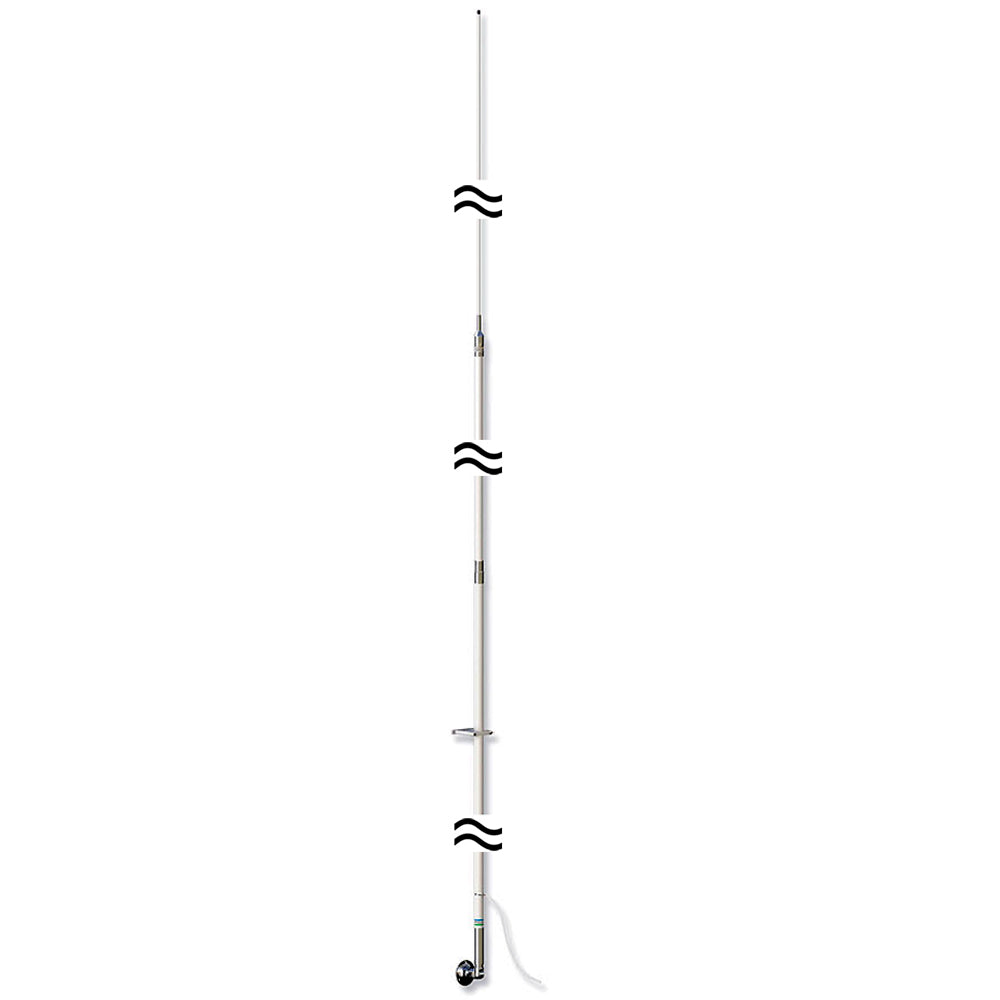

Shakespeare 393 23' Single Side Band Antenna

These Classic SSB antennas are outstanding performers. Two styles that are electrically the same but one design in three sections for convenience in shipping. For use in calm to moderate seas. Reinforce insulating qualities allow input power up to 1 Kilowatt.

Shakespeare 393 Attributes

• Type: Monopole
• Length: 23 Feet
• Mounting Type: Swivel Mount
• Color: White
• Material: Fiberglass

Shakespeare 393 Features & Benefits

• Brass And Copper Elements Provide Standard Range And Reception
• Chrome-Plated Brass Or Nylon Ferrule With Standard 1 Inch -14 Thread Provides For Basic Install
• Smooth, Durable, High-Gloss White Fiberglass Finish Prevents Yellowing
• Conductors Are Permanently Sealed In Shakespeare® White Fiberglass
• Limited 2 Year Warranty

Shakespeare Style 393 SSB
23' LENGTH

WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)

The Style 393 antenna is electrically the same as the industry standard Style 390, For use in calm to moderate seas.

• Chrome-plated brass ferrules, bottom ferrule has 1"-14 thread

• Side feed termination band

• Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit for deck or side mounting

• Three sections: Base 92"; Center 92"; Tip 92"

• Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency:	2-30 MHz HF band with tuner
Bandwidth:	Resonant frequency 10.8 MHz
SWR:	N/A
Impedance:	(Ohms): N/A
Gain:	N/A
Max Input (Watts):	1000
DC Ground:	N/A
Termination:	Side Termination
Height (feet):	23
Polarization:	Vertical
Radiation pattern:	Omni-directional

"Shakespeare \u00b7 VHF \u00b7 HF \u00b7 Marine \u00b7 Omni-directionalFor use only in moderate seas. Chrome-plated brass ferrules, bottom ferrule has 1\"-14 thread. Side feed termination band. Suggested mount: Style 409 or 410. Mounting Kit for deck or side mounting."
SKU: NVN-10596
MPN: 393
UPC: 719441600075
