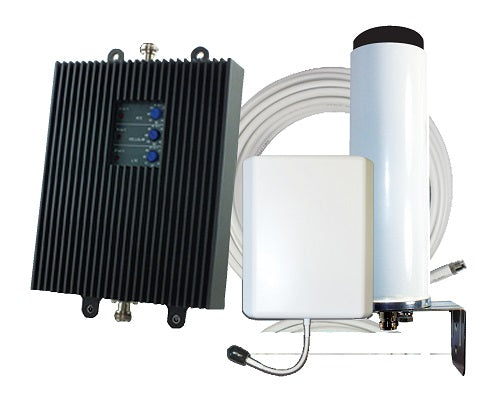

Shakespeare CA-T Amplifier T-MOBILE 2/3/4G

This full-featured amplifier kit includes manually adjustable dials for each frequency and automatic shutdown is built-in for optimizing performance. Ideal for large vessels, homes or office buildings and warehouses with a low cellular signal and/or requiring large coverage. Covers up to 6,000 square feet. Supports Multi-Users ( up to 8 )





	CA-T T-Mobile
Frequency	Uplink 1850-1910 Downlink 1930-1990
	Uplink 824-849, Downlink 869-894
	Uplink 1710-1755, Downlink 2110-2155
Avg Gain	65dB
Maximum Gain	70dB
VSWR	≤2.0
Standard Supporrted	LTE or AWS, HSPA(+), EVDO, CDMA, GSM, UMTS, WCDMA, and all other standard cell phone networks
AC Power	Input AC110V, 60Hz; Output: DC6-12V
Maximum RF Output Power	3W EIRP for Cellular, 2W EIRP for PCS, 3W EIRP for LTE, 1W EIRP for AWS
Noise Figure	7dB
Cable	CM400 Recommended
RF Connectors	N Female connectors on both ends
Power Consumption	<30w
Dimensions Amplifier	8.5" x 6.25" x 1.5"
Amplifier Weight	3lbs

This full-featured amplifier kit includes manually adjustable dials for each frequency, and has built-in automatic shutdown functions to optimize performance. Ideal for large ships, homes or office buildings and warehouses with low cellular signals and/or large coverage areas. It occupies 6,000 square feet. Support multi-user up to 8 ca-t t-mobilefrequency Uplink 1850-1910 Downlink 1930-1990 Uplink 824-849, Downlink 869-894 Uplink 1710-1555, Downlink 2110-2155avg gain The maximum gain of 65db is 70dbvswr2. 0 standard support or aws, hspa, evdo, cdma, gsm, umts, wcdma and all other standard mobile phone network ac power input ac110v, 60hz; output: dc6-12vmaximum rf output power cell phone is 3w eirp, pcs is 2w eirp, lte It is 3w eirp and awsnoise is 1w eirp.

This full-featured amplifier kit includes manually adjustable dials for each frequency and has a built-in automatic shutdown function to optimize performance. Ideal for large ships, homes or office buildings and warehouses with low cellular signal and/or large coverage. It occupies 6,000 square feet. Support multi-user up to 8 CAT mobile frequency uplink 1850-1910 downlink 1930-1990 uplink 824-849, downlink 869-894 uplink 1710-1555, downlink 2110-2155avg gain 65db The maximum gain is 70dbvswr2. 0 standard support or aws, hspa, evdo, cdma, gsm, umts, wcdma and all other standard mobile phone network AC power input ac110v, 60hz; output: dc6-12vmaximum rf output power mobile phone is 3w eirp, pcs is 2w eirp, lte It is 3w eirp and awsnoise is 1w eirp.
SKU: NVN-1001407
MPN: CA-T
UPC: 719441171278
