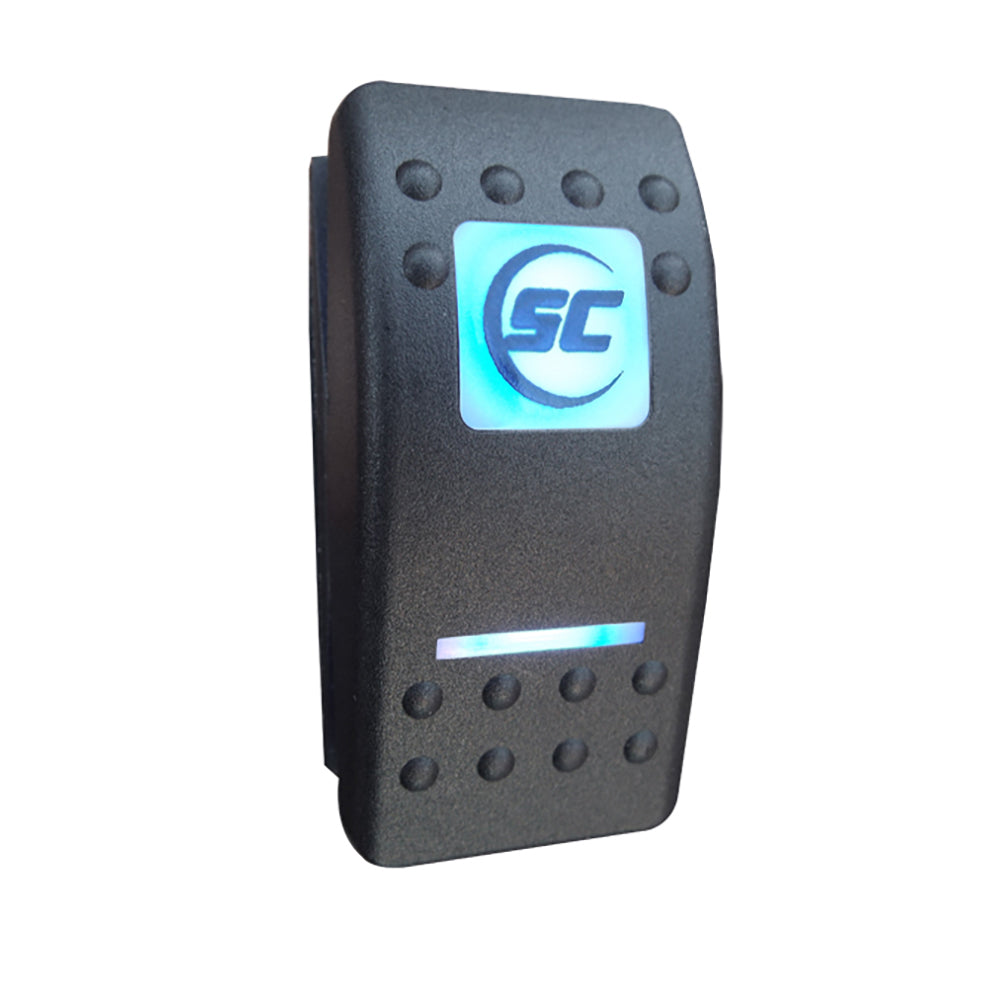

Shadow-Caster 3-Position On/Off/Momentary Marine LED Lighting Switch

3-Position On/Off/Momentary Marine LED Lighting Switch

On / Off / Momentary Marine LED Lighting Switch for two-color and multi-color lighting – simply toggle power to set color choice. For use with fishing boats, pontoon boats, sports boats, and yachts.

Features:

• Power On/Off
• Color change
• Multiple fade mode changes

Specifications:

• Off/On/Momentary
• LED Voltage Rating: 12V (Add 600ohm resistor between pin 7 and ground for 24V operation)
• LED Color: Blue x 2
• Terminals: Brass or copper/silver plate 1/4” (6.3mm) quick connect
• Sealing IP66/68, for above-panel components of actual switch only
• Operating Temp. -40°C to +85°C
• Contact Rating: 20 amps, 4-14VDC and 15 amps, 15-28VDC
• Switch and actuator color: Black

Note: Use with SCM-SNLC single-zone lighting controller to access full ShadowNET® lighting control functionality.

3-position on/off/momentary marine LED lighting switch on/off/momentary marine LED lighting switch for two-color and multi-color lighting-just switch the power to set the color...
SKU: NVN-88257
MPN: SCM-SWITCH-O/O/M
UPC: 855726005927
