Shadow-Caster Power Distribution Box

Power Distribution Box

Power Distribution Box for Multiple Underwater Lights

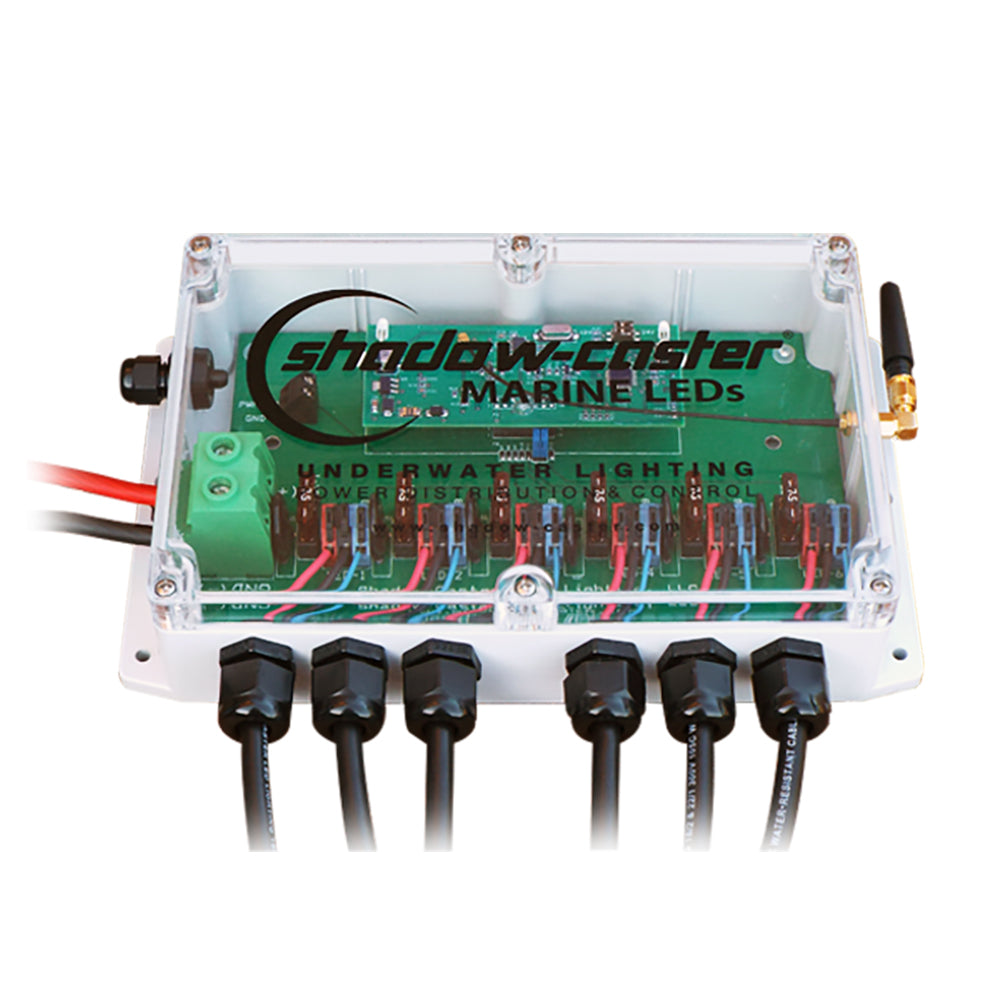

The Shadow-Caster Marine Power Distribution Box is a great accessory whenever installing three or more lights. It provides the convenience of separate connections and fusing for up to 6 Shadow-Caster Lights and can support up to 100 amps of current.

Our Power Distribution Systems are a convenience for installing and controlling our lights and can support an easy upgrade to our wireless controllers.

Specifications:

• Size: 8.75" Length x 5.75" Width x 2.25" Height (222 x 146 x 57mm)

• 6 individual connections; easy to use color Coded Connections

• Supports up to 100 amps of current

• UV Stabilized Polycarbonate Housing with Clear Lid

• IP-63 Wash down rated enclosure

• Compatible with SCM-WC-PD wireless controller

• Accepts up to 10 awg wire input

• Seperate ATC/ATO style fuses for each channel (included)

• 1-Year Warranty

• Made in the USA

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm, and Urethane which is known to the State of California to cause cancer or other reproductive harm. For more information go to P65Warnings.ca.gov.

Shadow Caster's distribution box (SCM-PD). Our distribution box makes the installation of Shadow-Caster lights easier, and for all...
SKU: NVN-62550
MPN: SCM-PD
UPC: 855726005187
