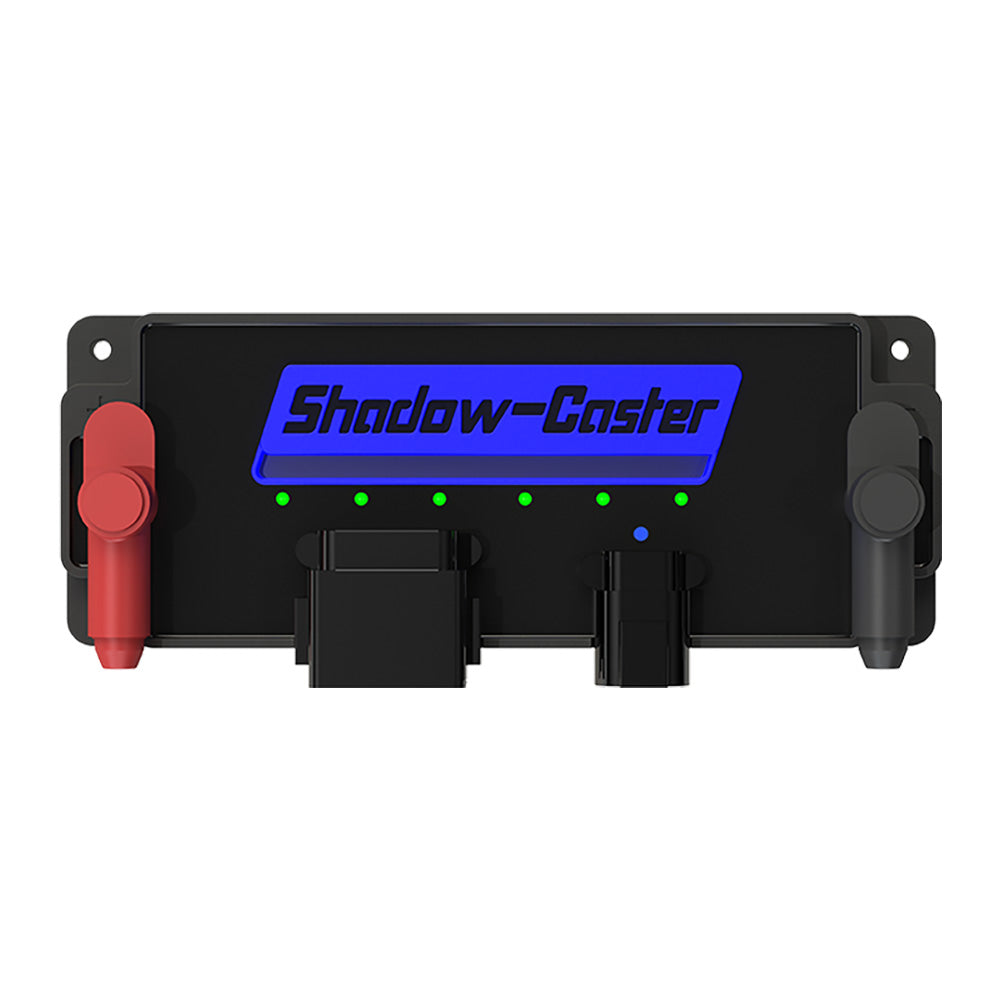

Shadow-Caster 6-Channel Digital Switch Module Shadow-NET™ Control f/Single Color & 3rd Party Lighting

6-Channel Digital Switch Module Shadow-NET™ Control for Single Color & 3rd Party Lighting

The 6-channel digital switch module offers a convenient way to integrate any standard light with the Shadow-Caster™ MFD interface. Simply plug in the module to the Shadow-NET™ system and switch support will automatically populate on the screen.

Each module provides 6 channels of support, that will handle up to 10 amps per channel with digital fault protection. There is also a manual switch input for overriding the interface.

Features:

• 6 independent digital switches
• Control other brands of lights with the Shadow-Caster™ MFD interface and phone app
• Digital over current fault protection
• Manual switch override
• Green/red LEDs provide the status of each channel
• Full integration with Shadow-NET™ interface
• The blue backlight indicates the power state

Specifications:

• 12/24V operation
• 10A each channel
• 5/16” power lugs
• IP67 Deutsch connections
• Power lug protection boots

What's Included?

• 6 channel digital power switch
• Mounting hardware 4 #8 PH x.5”
• Pre-wired mating connectors
• 3 year standard warranty

"Scm-6 led underwater light w\/20ft ' cable - 316 ss housing - aqua greenwith six leds, our mid-sized underwater light is the perfect addition to every vessel. Available in any of our five colors, the scm-6 works with our wireless controller and power distribution box for ease of use and installation. High intensityshadow-caster underwater led lights are designed to deliver the most intense optical output. Robust designwith shadow-caster underwater led lights, there's no additional external components to install. Just connect the cable submersible to 20 feet. All the necessary electronics are integrated into the housing and resistant to vibration and the elements. Surface mountedour lighting solutions feature a low profile design that requires noalteration to the main hullwide input voltage rangeshadow-caster's underwated led lights have an input range of 10 to 30 volts and work equally well on sets of 12 or 24 volts. Surge and reverse polarity protectionour lighting systems have an innovative protection system that automatically disconnects the input entry when excessive voltage or reverse polarity is detected. Thermal protectionour unique thermal protection features a control system that detects internal temperature and adjusts energy production down to avoid."
SKU: NVN-98042
MPN: SCM-PWR6
UPC: 850024342590
