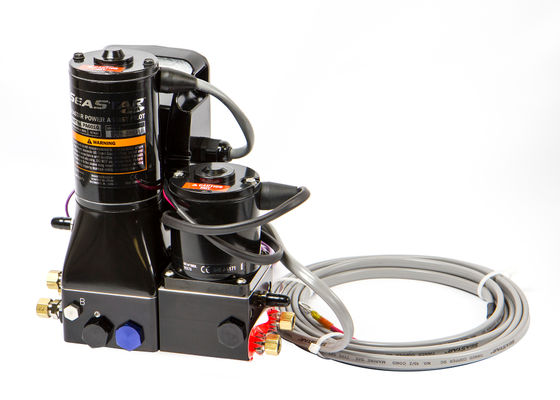

Seastar PA6020 Power Assist Autopilot Pump T2 12v

Converts manual hydraulic steering for dramatic reduction in steering wheel torque and at the same time provides a pump for an autopilot installation. The SeaStar Power Assist Autopilot pump is the standard power assist product with the addition of a Type 1 or Type 2 autopilot pump. The SeaStar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in 12 and 24 volt configurations, as well as two different pump sizes.

SeaStar PA6020 Attributes

• Input Voltage: 12 Volt
• Maximum Pressure Rating: 1000 PSI
• Ampere Rating: 5 Amp To 11 Amp
• Cylinder Capacity: 12.5 To 21 Cubic Inch
• Flow Rate: 100 Cubic Inches Per Minute
• Wire Length: 24 Feet

SeaStar PA6020 Features & Benefits

• Converts Manual Hydraulic Steering To Power Steering
• Dramatic Reduction In Steering Wheel Torque
• OEM Or Retrofit
• Compatible With Power Purge System
• Ignition Protected
• ABYC, CE, NMMA, ISO 10592 Approved
• Easy To Install
• Limited 1 Year Warranty

SeaStar PA6020 Technical Bulletins

• pas3-SeaStar_power_assist_autopilot.pdf

Seastar PA6020 Power Assist Autopilot Pump

Model: PA6020

• Autopilot ready — a single installation (i.e. no need to break into system for install of pump).
• Converts manual hydraulic steering to power steering.
• Dramatic reduction in steering wheel torque.
• Easy installation.
• OEM or Retrofit.
• Simple add on to an existing SeaStar manual system (from 1.4 — 2.4 SeaStar helm pumps)
• Compatible with power purge system.
• Ignition protected (SAE J-1171).
• ABYC, CE, NMMA, ISO 10592 Approved.
• Replaces other 12 & 24 volt systems

Converts manual hydraulic steering for dramatic reduction in steering wheel torque and at the same time provides a pump for an autopilot installation.

The SeaStar Power Assist Autopilot pump is the standard power assist product with the addition of a Type 1 or Type 2 autopilot pump. The SeaStar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in 12 and 24 volt configurations, as well as two different pump sizes (type 1 & type 2).

Specifications

Voltage	12vDC
Fittings	Compatible with standard SeaStar Hoses (HO51xx etc.)
Oil Compatibility	SeaStar Steering Fluid (MIL 5606)
Autopilot Pump Sizes	60 in3/min (no load)
Max Pressure	1000psi
Typical Current Draw (Depending on application)	5 - 11 amps
Pump cylinder capacity	12.5 in3 — 21 in3

Seastar PA6020 Electric Assisted Autopilot Pump Model: The PA6020 autopilot is ready-only one installation (ie, no need to break into the system to install the pump). Convert manual hydraulic steering to power steering. The steering wheel torque is greatly reduced. Easy installation. OEM or refurbished. Simply add to the existing SeaStar manual system (starting from 1.4-2.4 SeaStar helm pump) to be compatible with the power purification system. Ignition protection (SAE J-1171). Passed ABYC, CE, NMMA, ISO 10592 certification. Replace other 12V and 24V systems. Convert manual hydraulic steering to significantly reduce steering wheel torque while providing pumps for automatic driving devices. SeaStar power-assisted automatic driving pump is a standard power-assisted product, and a type 1 or 2 automatic driving pump is added. The SeaStar Autopilot pump is a fixed flow, reversible pump set using an internal hydraulic gear pump, which generates little vibration or noise. It offers 12 volt and 24 volt configurations, and two different specifications of pumps (type 1 and type 2). Specification voltage 12vDC connector is compatible with standard SeaStar hoses (HO51xx etc.). Oil compatibility SeaStar steering fluid (MIL 5606) autopilot pump specification 60 in3 / min (no load) maximum pressure 1000 psi typical current (depending on application) 5-11 ampere Pump cylinder capacity 12.5 in3 — 21 inches3
SKU: NVN-1001534
MPN: PA6020
UPC: 731957898043
