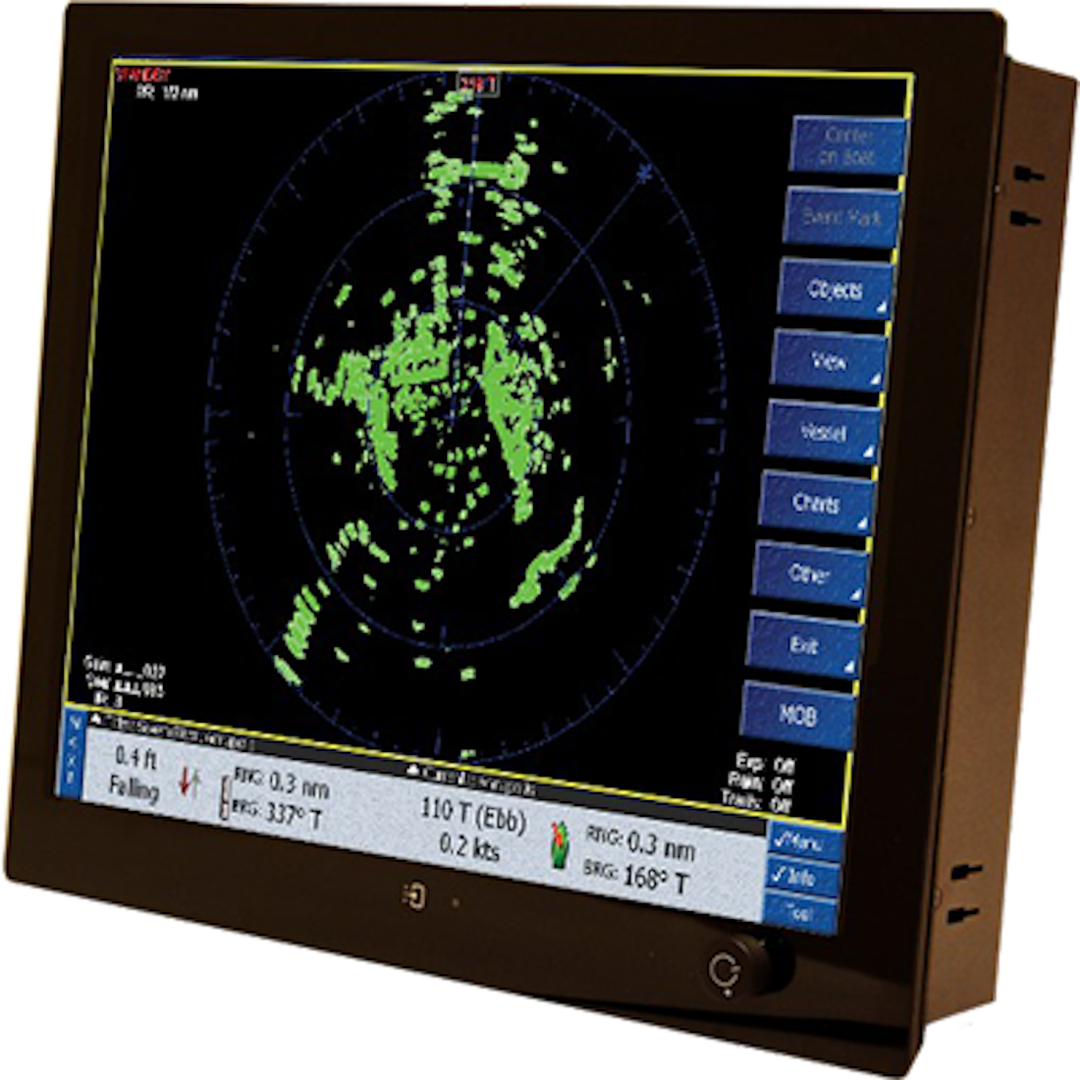

Seatronx 12" Sunlight Readable Touch Screen Display

SeaTronx Sunlight Viewable Marine Monitor12", 4:3 Aspect Ratio, 12/24 VDC, Touchscreen SeaTronx Glass Bridge displays are a cost-effective solution for those desiring rugged design combined with attractive styling. With up to 1500 nits of low-power LED backlighting, these displays are visible in direct sunlight and can be completely dimmed for night time use with a convenient front panel control. With standard PCAP touchscreen, these monitors have an IP68 waterproof front panel and are optically bonded to prevent fogging under the glass. Inputs include HDMI, DVI-D, VGA & Composite Video Input.

SeaTronx SRT12 Attributes

• Display Size: 12" color, 1500 nits
• Resolution: 1024 x 768, 4:3 aspect ratio
• Dimensions: 11.9"W x 10.1"H x 2.6"D
• Waterproof: IPX7 Rating Waterproof

SeaTronx SRT12 Features & Benefits

• Two year parts, one year labor

12" Sunlight Readable Touch Screen Display

Seatronx multi-input rugged displays are not only durable but are perfect for today's sleek glass bridge helms in sizes from 12″ to 27″.

The SRT display pairs with GARMIN giving you the ultimate black box navigation solution using Garmin’s fully integrated GPSMAP® 8700 processor and Seatronx SRT series displays.

Features:

• Mounting - Panel Mount , Vesa Mount
• Dimensions - 11.88" x 10.13" x 2.28"
• Cutout Dimensions -  11.16" x 9.43" x 2.40"
• Projected Capacitive Touch
• Optical Bonding
• Optional Remote Control

Technical Specifications:

• Diagonal (active area) Inch - 12.1"
• Native Resolution (Pixels) - 1024x768
• Contrast Ratio - 700:1
• Brightness - 1500
• Viewing Angle (left, right) - 80, 80
• Viewing Angle (up, down) - 80, 80
• Backlight Dimming - 0 - max
• Backlight Lifetime (Hrs) - 50,000
• Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
• Power Source - 9-34V + and -
• Power Consumption (AMPS @ 24VDC) - 2.5
• Inlet Plug DC Power - Screw Terminal
• Sealing Front - IP68 with Potentiometer
• Operating Temperature (°C) - -30 to 85
• Storage Temperature (°C) - -30 to 80

SKU: NVN-91915
MPN: SRT-12
UPC: 850036822011
