Schaefer Investment Cast Pad Eye - 2-1/2" OD Base
SKU: 74763 · UPC: 740507007828 · MPN: 78-07
★★★★★
4.7 · 0 reviews
Authorized dealer30% off
$69.59
$100.80Save $31.21
or 4 payments of $17.39 with Affirm
Out of stock
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$69.59
02 · Overview
Schaefer Investment Cast Pad Eye - 2-1/2" OD Base — Product description

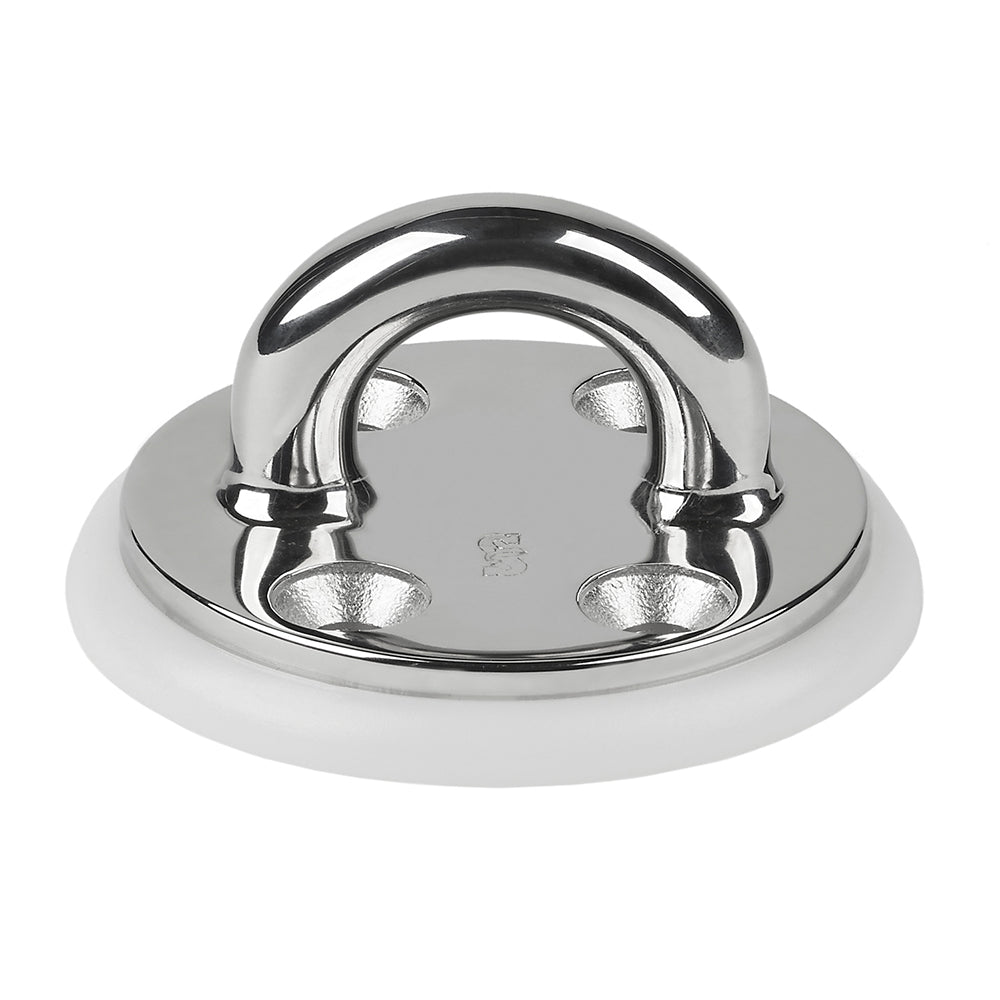

Investment Cast Pad Eye - 2-1/2" OD Base
316 Stainless Steel includes delrin(tm) base. Order Backing Plate 97-53 separately.
Specifications:
- Eye Width 1" (25 mm)
- Eye Height 13/16" (21 mm)
- Eye Stock 3/8" (10 mm)
- Length 2-1/2" (64 mm)
- Width 2-1/2" (64 mm)
- Fasteners (4), 1/4" FH (6 mm)
- C/C A 1" (25 mm)
- C/C B 1-1/2" (38 mm)
- SWL 4000 lbs. (1800 kg)
All dimensions are center to center. Measure the rectangular pad eye as shown in the picture. The circular eye protection is the size from the inner hole to the inner hole, not the size of the middle span hole.
SKU: NVN-74763
MPN: 78-07
UPC: 740507007828
