Schaefer Marine
Schaefer Stainless Steel Welded Pad Eye - 3"L x 1"W
SKU: 74756 · UPC: 740507007767 · MPN: 78-01
★★★★★
4.7 · 0 reviews
Authorized dealer29% off
$39.49
$56.05Save $16.56
or 4 payments of $9.87 with Affirm
Low stock — 2 left — Ships today
Pickup available · NVN Marine (FL)
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$39.49
02 · Overview
Schaefer Stainless Steel Welded Pad Eye - 3"L x 1"W — Product description

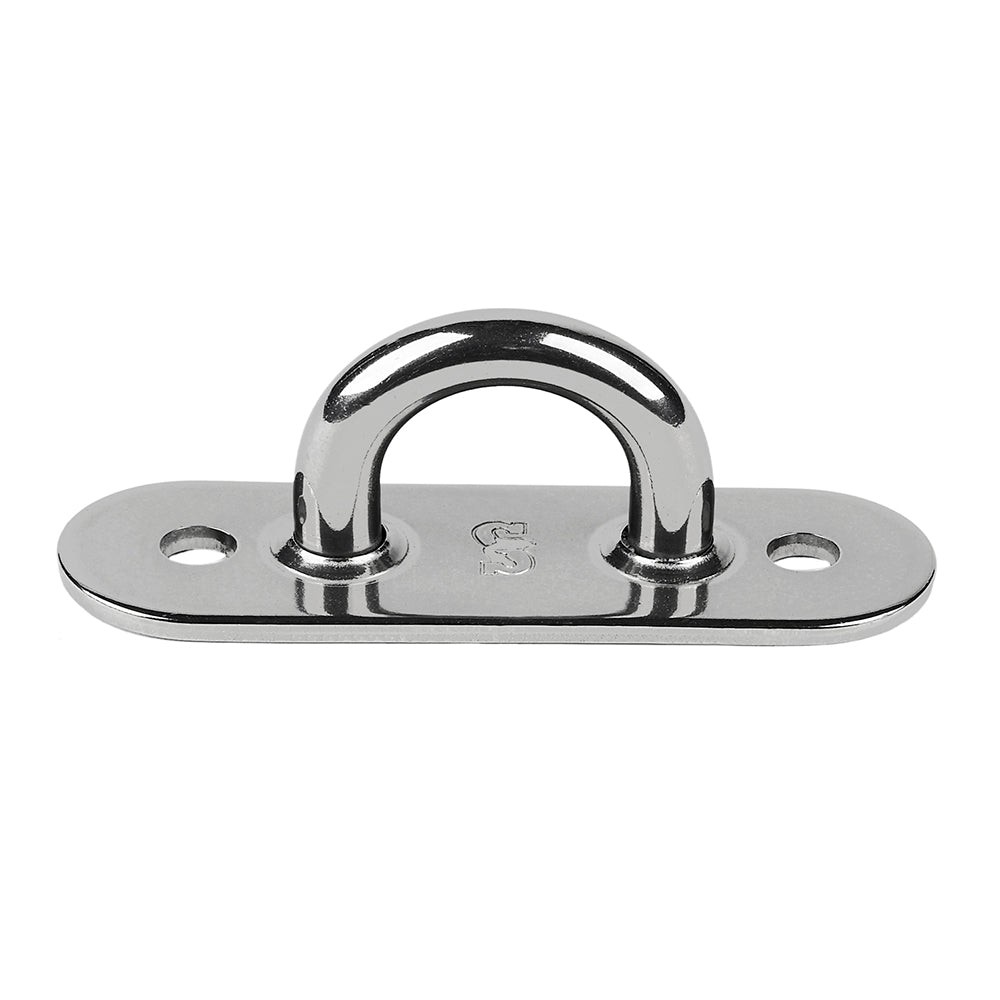

Stainless Steel Welded Pad Eye - 3"L x 1"W
Specifications:
- Eye Width 7/8" (22 mm)
- Eye Height 7/8" (22 mm)
- Eye Stock 1/4" (6 mm)
- Length 3" (76 mm)
- Width 1" (25 mm)
- Fasteners (2), 1/4" RH (6 mm)
- C/C 2-3/16" (55 mm)
- SWL 2500 lbs. (1135 kg)
- Weight 3.25 oz. (92 g)
Schaefer 3" x 1" diameter rectangular base eye protection with 1/4" shackle|for sailing. All dimensions are center to center position. The measurement of the rectangular cushion eye protection is shown in the figure. Measurement of circular cushion eye protection...
SKU: NVN-74756
MPN: 78-01
UPC: 740507007767
03 · The numbers
Technical specifications
| Brand | Schaefer Marine |
| Model | Schaefer Stainless Steel Welded Pad Eye - 3"L x 1"W |
| SKU / MFR# | 74756 |
Set product metafields under specs.* to populate this table.
