Schaefer Marine
Schaefer Twin Sheet Lead 25x3MM - Black
SKU: 91831 · UPC: 740507003707 · MPN: 32-77
★★★★★
4.7 · 0 reviews
Authorized dealer32% off
$274.79
$410.10Save $135.31
or 4 payments of $68.69 with Affirm
Low stock — 2 left — Ships today
Pickup available · NVN Marine (FL)
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$274.79
02 · Overview
Schaefer Twin Sheet Lead 25x3MM - Black — Product description

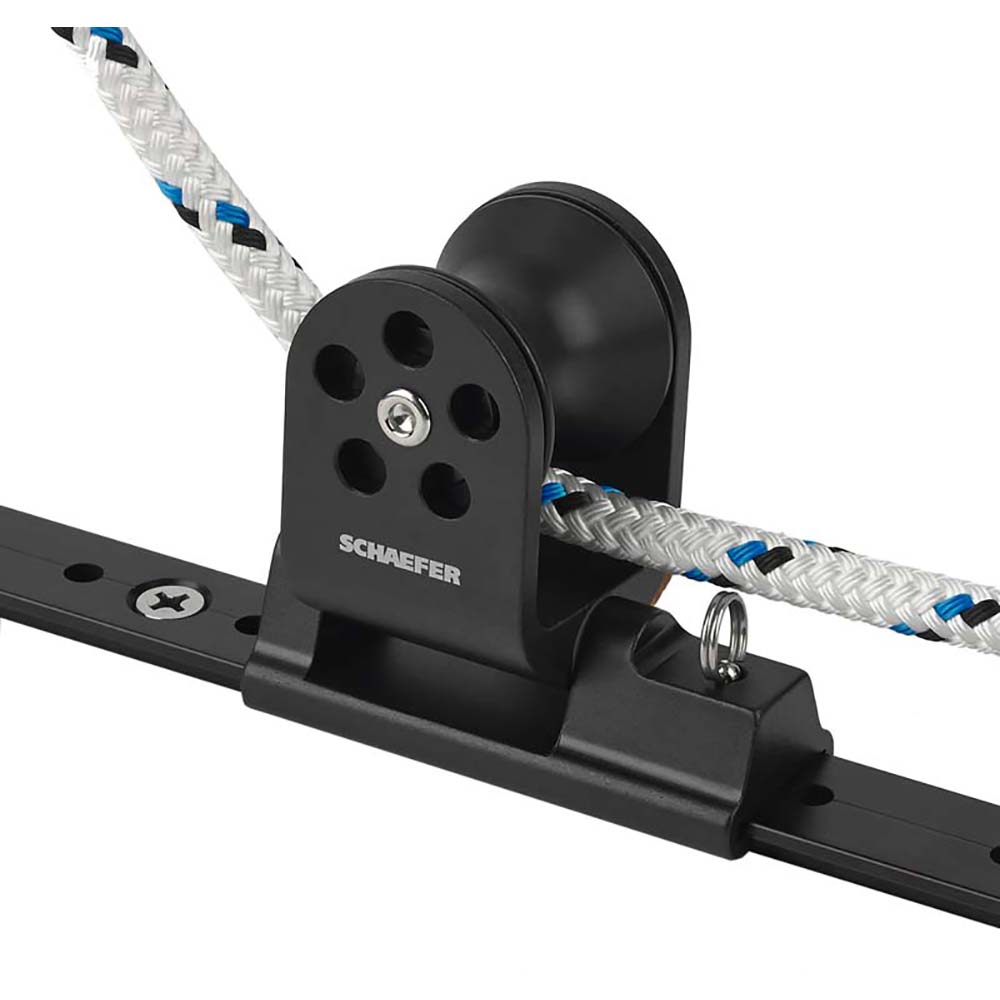

Twin Sheet Lead 25x3MM - Black
32-77 Twin Sheet Lead block. The anodized aluminum body is machined from 6061-T6 aluminum and articulates to ensure a proper lead. Anodized aluminum sheave runs on Nomex™/Teflon™ bearing for a low-friction high strength sheave. Pin stop makes adjustment simple.
Features:
- Track Size 1" x 1/8" (25 mm x 3 mm)
- Boat Size Up To LOA 29'
- Disp. 5000 lbs.
- Sail Area 315 sq. ft (8m, 2270 kg, 29 m2)
- Sheave Dia. 1-1/2" (38 mm)
- Max Line (2) 1/2" (13 mm)
- L 3-1/2" (89 mm)
- W 1-11/32" (34 mm)
- H 3-9/32" (83 mm)
- Bearing Height 1-29/32" (49 mm)
- SWL 2500 lbs. (1135 kg)
- Weight 10 oz. (284 g)
SKU: NVN-91831
MPN: 32-77
UPC: 740507003707
03 · The numbers
Technical specifications
| Brand | Schaefer Marine |
| Model | Schaefer Twin Sheet Lead 25x3MM - Black |
| SKU / MFR# | 91831 |
Set product metafields under specs.* to populate this table.
