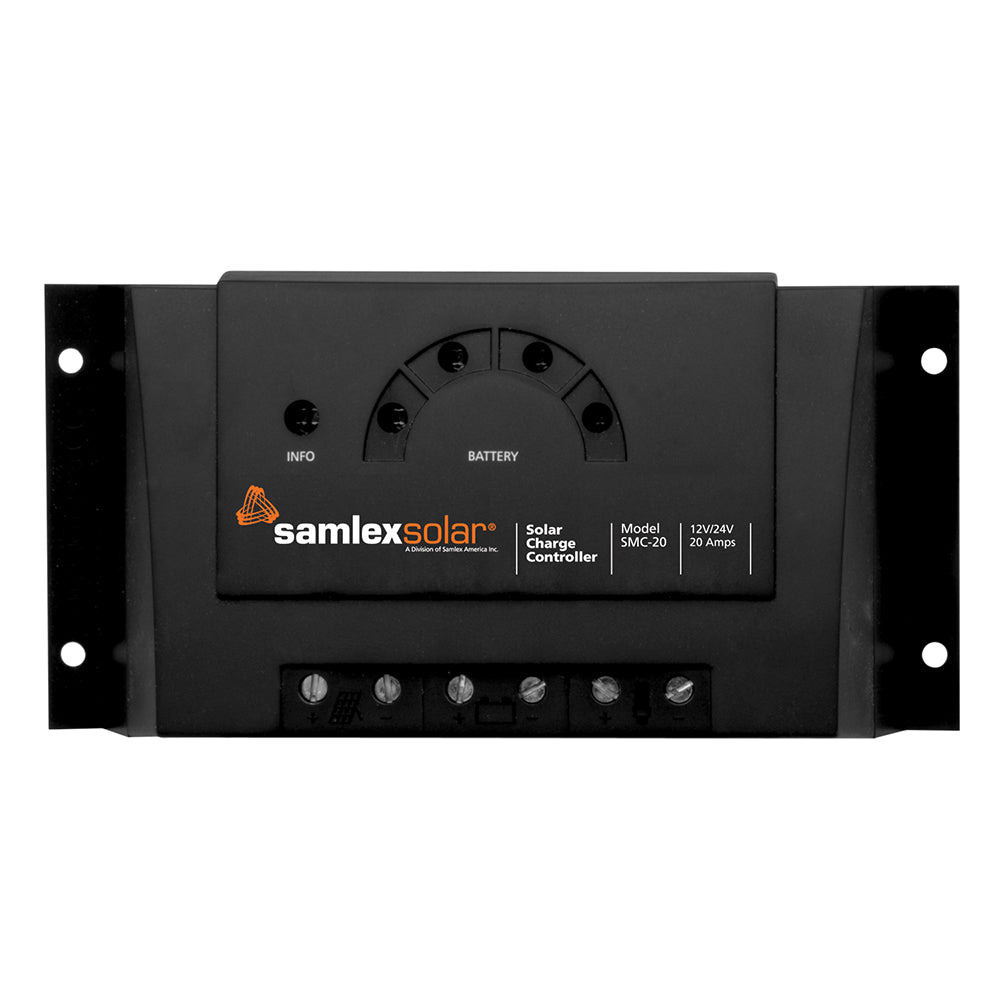

Samlex Charge Controller w/LED Display - 12V/24V - 20A

Charge Controller w/LED Display - 12V/24V - 20A

The circuit board is completely electronically protected and with the LED user interface it is easy to check the battery state of charge at any time. Large terminals guarantee a simple connection to solar panels, battery and load. The SMC-20 works on PWM as a low loss series controller.

Features:

• 20 Amps
• Series controller, PWM control
• Automatic detection of 12/24V
• LEDs indicate battery state of charge
• Large terminals guarantee a simple connection of solar panels, battery and load

Specifications:

• Input: 12V / 24V
• Amps: 20 Amps
• Weight: .76 (lbs) / .345 (kgs)
• Dimensions: 7.36 x 3.78 x 1.77 (in)
• Dimensions: 18.7 x 9.6 x 4.5 (cm)

Applications:

• Recreation vehicles
• Service vehicles
• Boats
• Field work
• Telecommunications
• Mobile offices
• Construction sites

Charge Controller with LED Display-12V/24V-20A The circuit board has full electronic protection and has an LED user interface to easily check the battery status of the battery.
SKU: NVN-68830
MPN: SMC-20
UPC: 622988088100
