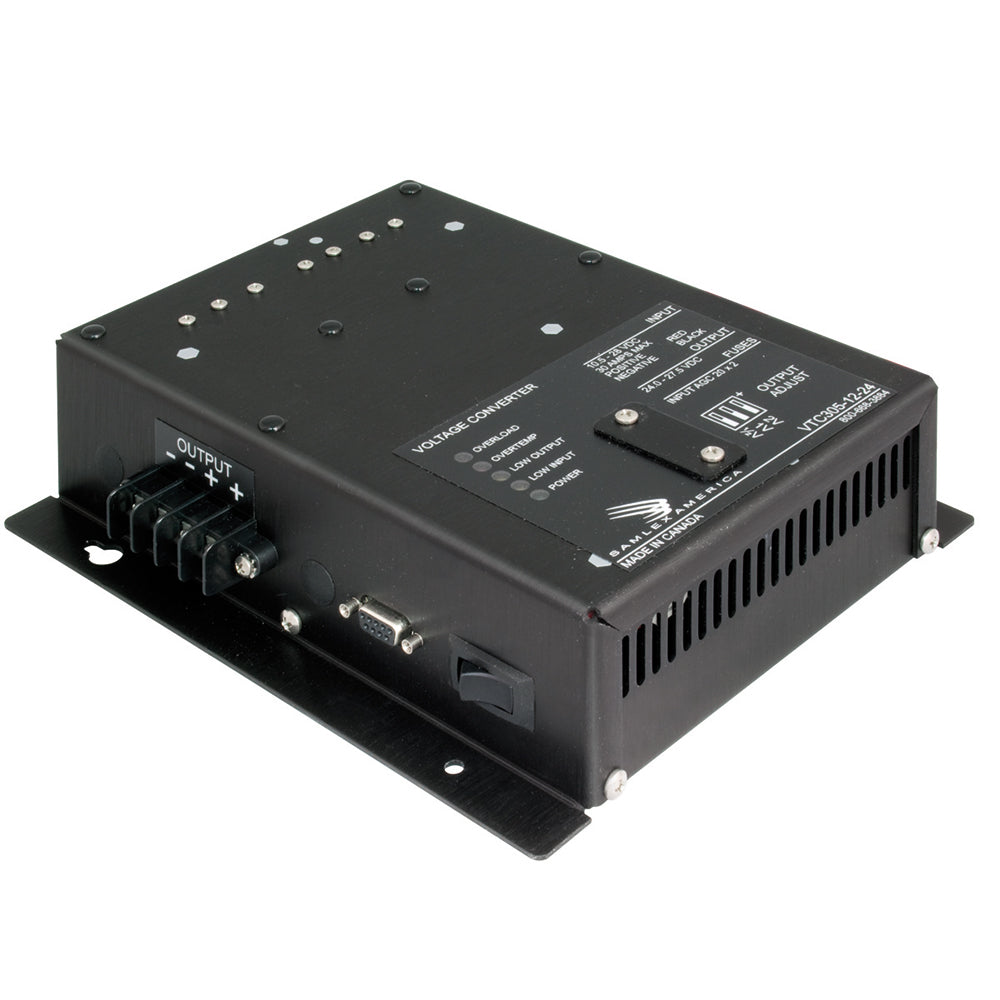

Samlex Step-Up DC-DC Converter - 12-27A - 10.5-28V Input - 24-27.5V Output

Step-Up DC-DC Converter - 12-27A - 10.5-28V Input - 24-27.5V Output

Features:

The actual output current capability depends upon the input/output voltage ratio. To obtain the actual output current capability at any given input voltage, use the following formula:
Output Amps=Input Volts/Output Volts x 27.

• Shock and vibration tolerance
• Mount in almost any location
• Compact and light weight
• Reverse polarity protection
• Current limiting circuit
• Overvoltage crowbar circuit
• Non-Isolated for negative ground system
• Ultra quiet low EMI operation
• Rugged Marine grade aluminum case

Specifications:

• Input: 10.5-28 VDC
• Output: 24 VDC
• Amps: 12-27 Amps
• Weight: 4 (lbs)
• Weight: 1.8 (kg)
• Dimensions: 9.1 x 7.8 x 2.5 (in)
• Dimensions: 23.1 x 19.8 x 6.4 (cm)
• Warranty: 2 Year Limited

Applications:

• RV vehicles
• Heavy trucks
• Buses
• Marine vehicles
• Land mobile radios
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems
• Solar/Alternative power systems
• Any 12V or 24V equipment

Non-Iso DC/DC converter 22A, 24V output, 11-15V input in 0.5 VDC increments (via 3-position DIP switch) to raise the 12 VDC battery to between 13.5 to 17.0 or 24.0 to 27.5 DC.
SKU: NVN-67274
MPN: VTC-305-12-24
