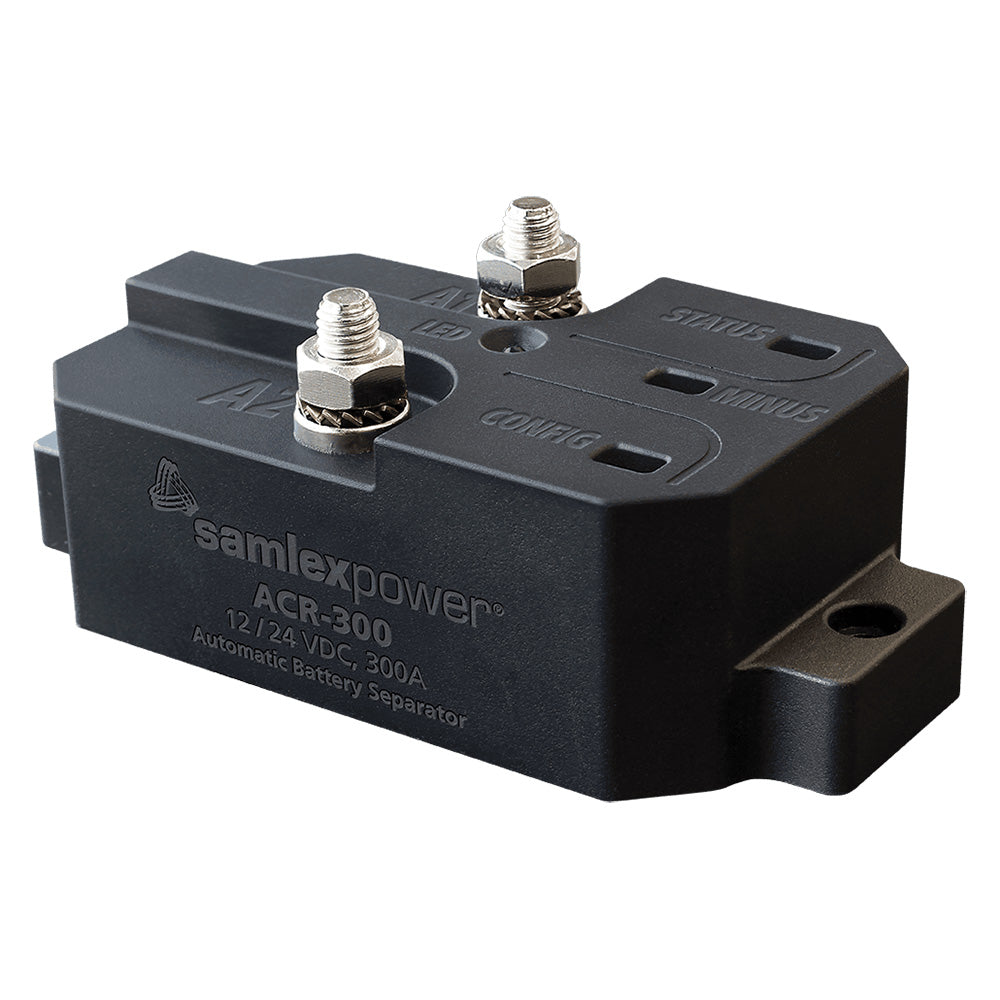

Samlex ACR-300 Automatic Charge Separator 300 AMP

ACR-300 Automatic Charge Separator 300 AMP

The ACR-300 combines battery banks for charging and isolates them when charging has stopped. It provides priority for charging only the starter battery first and protects from excessive discharging of the starter battery. The Automatic Charge Separator is also referred to as a battery separator, battery isolator, or an automatic charging relay.

Features:

• Microprocessor-controlled, dual-sensing
• Starter battery priority
• Easy to install – does not require changing the existing circuit or the alternator
• Potted, waterproof, sealed unit
• Low standby current
• Automatic detection of 12 or 24 VDC systems
• 300 Amp continuous rated
• Over-voltage protection
• Built-in status LED

Specifications:

• Input: 12/24 VDC
• Output: 12/24 VDC
• Amps: 300
• Dimensions: 170 x 82 x 65 (mm)
• Dimensions: 6.69 x 3.23 x 2.56 (in)
• Weight: 1.97 (lbs)
• Weight: 0.895 (kg)
• 2 Year Limited Warranty

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

SKU: NVN-111350
MPN: ACR-300
UPC:
