Wichard Web Snap Shackle - 3-1/8"

Web Snap Shackle - 3-1/8"

Features:

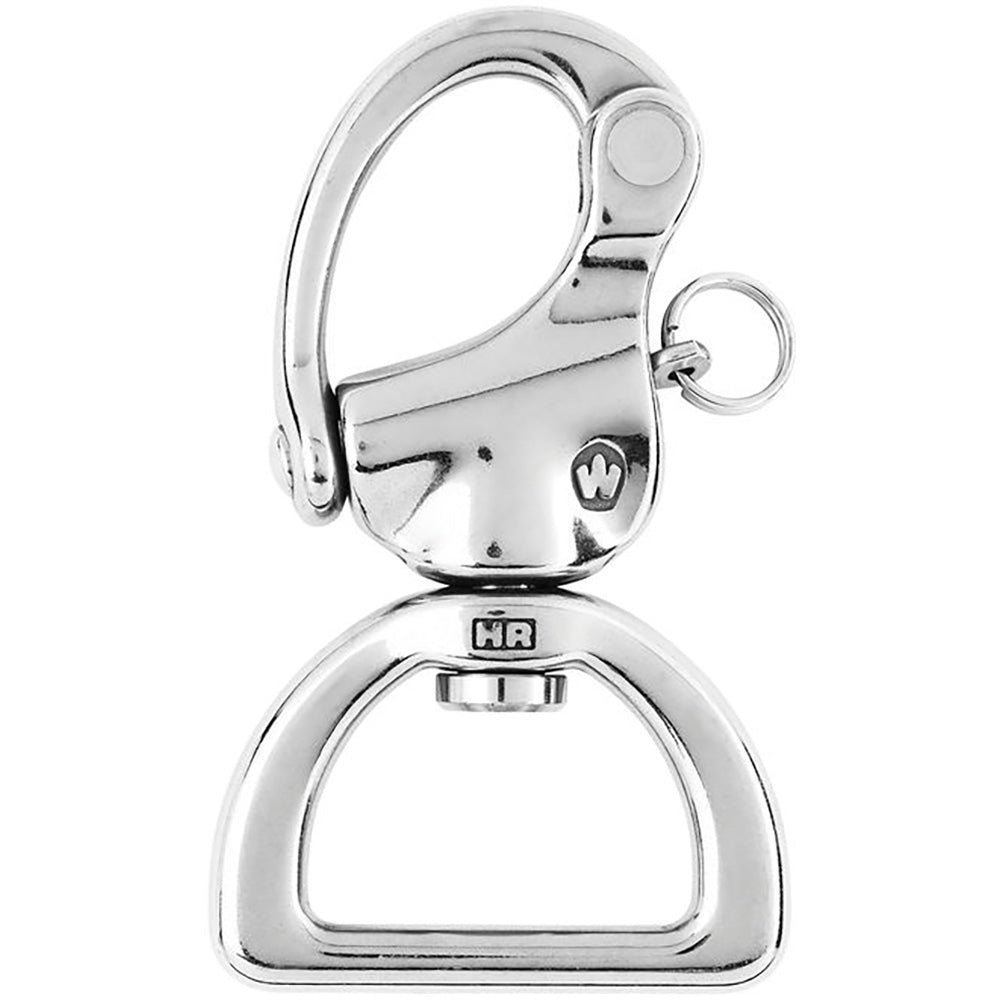

• HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel.
• Its flat design allows attaching a webbing
• Free rotation of the snap shackle thanks to the swivel eye
• The plunger pin is set captive into the hook and cannot become detached
• Excellent working and breaking loads
• Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

• Snap shackle applications
• Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 2110 / (kg) 960
• Breaking load: (lb) 4400 / (kg) 2000
• Weight: (lb) 0.187 / (g) 85

Dimensions:

• A: (inch) 5/8" / (mm) 16
• B: (inch) 1 3/16" / (mm) 30
• Length: (inch) 3 5/32" / (mm) 80

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

SKU: NVN-97653
MPN: 02374
UPC:
