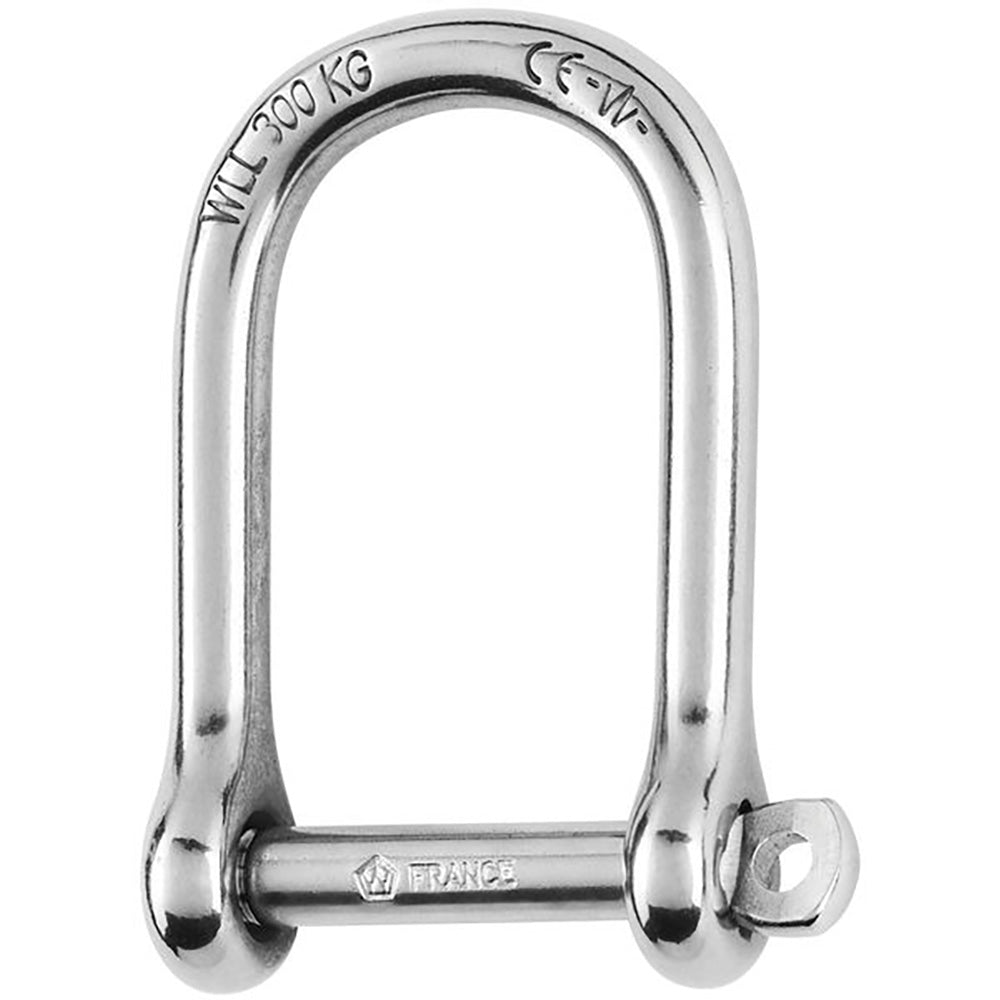

Wichard Self-Locking Large Opening Shackle - 6mm Diameter - 1/4"

Self-Locking Large Opening Shackle - 6mm Diameter - 1/4"

Features:

• Self-locking large shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• For applications where a large opening shackle is required

Specifications:

• Materials 316 stainless steel grade
• Working load: (lb) 990 / (kg) 450
• WLL: (lb) 660 / (kg) 300
• Breaking load: (lb) 3300 / (kg) 1500
• Weight: (lb) 0.06 / (g) 27

Dimensions:

• A: (inch) 1 21/32" / (mm) 42
• B: (inch) 1 / (mm) 25.5
• C: (inch) 15/64" / (mm) 6
• D: (inch) 35/64" / (mm) 14
• D diameter: (inch) 15/64" / (mm) 6
• E: (inch) 15/64" / (mm) 6
• F: (inch) 2 9/32" / (mm) 58
• G: (inch) 1 47/64" / (mm) 44

Caption:

• Working Load (WL): For nautical applications
•  Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

SKU: NVN-97635
MPN: 01263
UPC:
