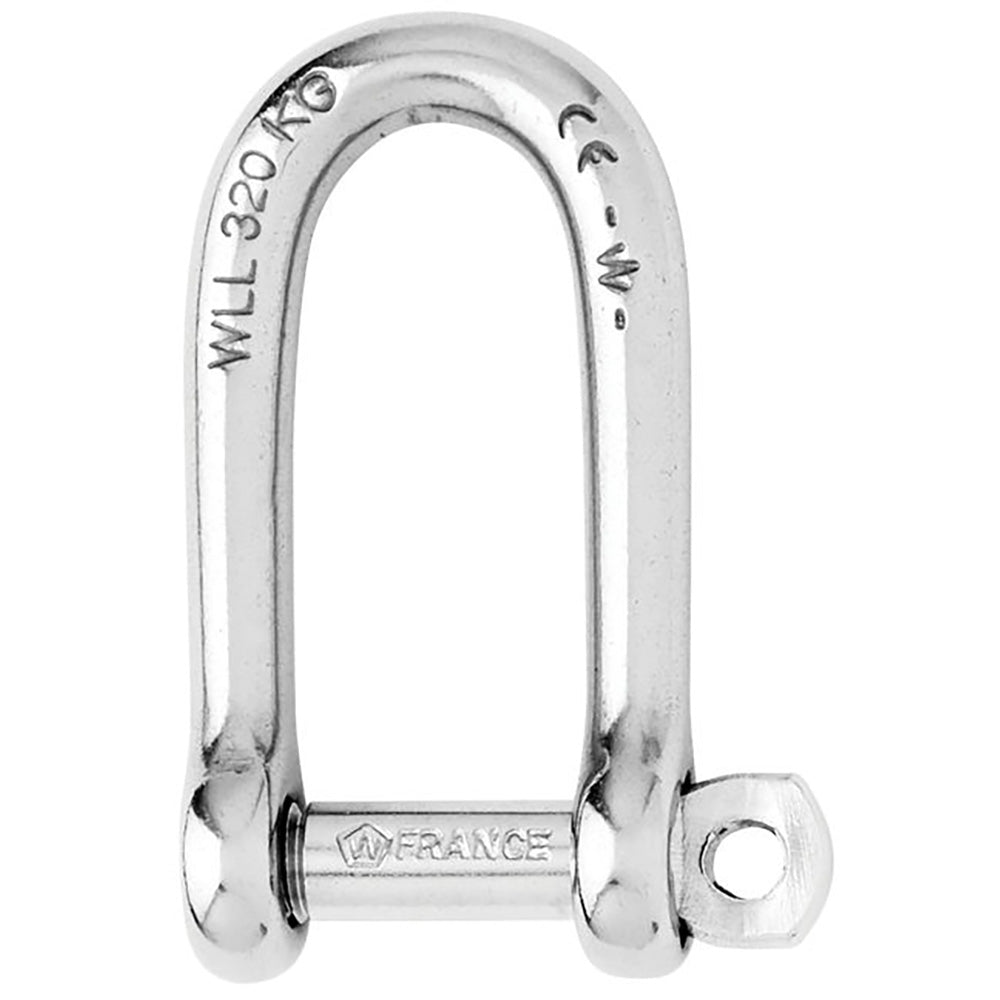

Wichard Self-Locking Long D Shackle - 10mm Diameter - 13/32"

Self-Locking Long D Shackle - 10mm Diameter - 13/32"

Features:

• Self-locking D shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications

• Standard applications of shackle requiring more length
• Attachment applications: blocks, head

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 3350 / (kg) 1520
• WLL: (lb) 1890 / (kg) 860
• Breaking load: (lb) 9470 / (kg) 4300
• Weight: (lb) 0.282 / (kg) 4300

Dimensions:

• A: (inch) 2 11/64" / (mm) 55
• B: (inch) 25/32" / (mm) 20
• C: (inch) 25/64" / (mm) 10
• D: (inch) 3/4" / (mm) 19
• D diameter: (inch) 25/64" / (mm) 10
• E: (inch) 23/64" / (mm) 9
• G: (inch) 3 7/64" / (mm) 79
• H: (inch) 2 3/64" / (mm) 52

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

SKU: NVN-97630
MPN: 01215
