Wichard HR Snap Shackle - Large Bail - Length 140mm
SKU: 93150 · UPC: 768536023770 · MPN: 02377
★★★★★
4.7 · 0 reviews
Authorized dealer
Free shipping15% off
$236.80
$278.59Save $41.79
or 4 payments of $59.20 with Affirm
In stock — Ships today
Pickup available · NVN Marine (FL)
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$236.80
02 · Overview
Wichard HR Snap Shackle - Large Bail - Length 140mm — Product description

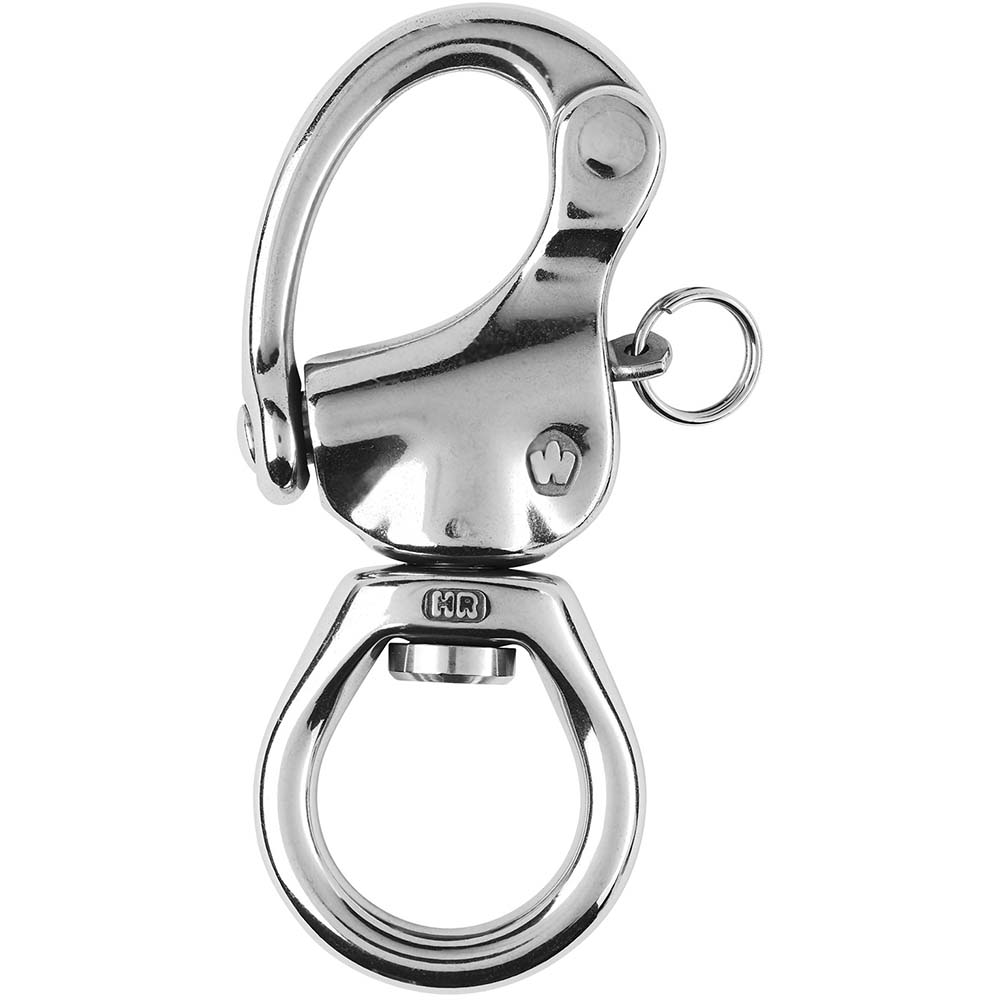

HR Snap Shackle - Large Bail - Length 140mm
Features:
- HR Forged snap shackle (Grade 17.4 PH stainless steel) with large eye
- The large eye allows attaching several ropes
- Free rotation of the snap shackle thanks to the swivel eye
- The plunger pin is set captive into the hook and cannot become detached
- Excellent working and breaking loads
- Easy to open by pulling the plunger pin (possibility to attach a lanyard)
Applications:
- Snap shackle applications
- Applications requiring a free rotation of the snap shackle (for a better sail orientation)
Specifications:
- Materials HR 17.4 PH stainless steel grade
- Length (inch) 5-33/64"
- Working load (lb) 6170
- Breaking load (lb) 16530
- Weight (lb) 0.877
Dimensions (see 2nd image):
- A (inch) 1-1/32"
- B (inch) 1-3/8"
SKU: NVN-93150
MPN: 02377
UPC: 768536023770
