Wichard HR Snap Shackle - Large Bail - Length 80mm
SKU: 93147 · UPC: 768536023732 · MPN: 02373
★★★★★
4.7 · 0 reviews
Authorized dealer15% off
$106.63
$125.45Save $18.82
or 4 payments of $26.65 with Affirm
Low stock — 1 left — Ships today
Pickup available · NVN Marine (FL)
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$106.63
02 · Overview
Wichard HR Snap Shackle - Large Bail - Length 80mm — Product description

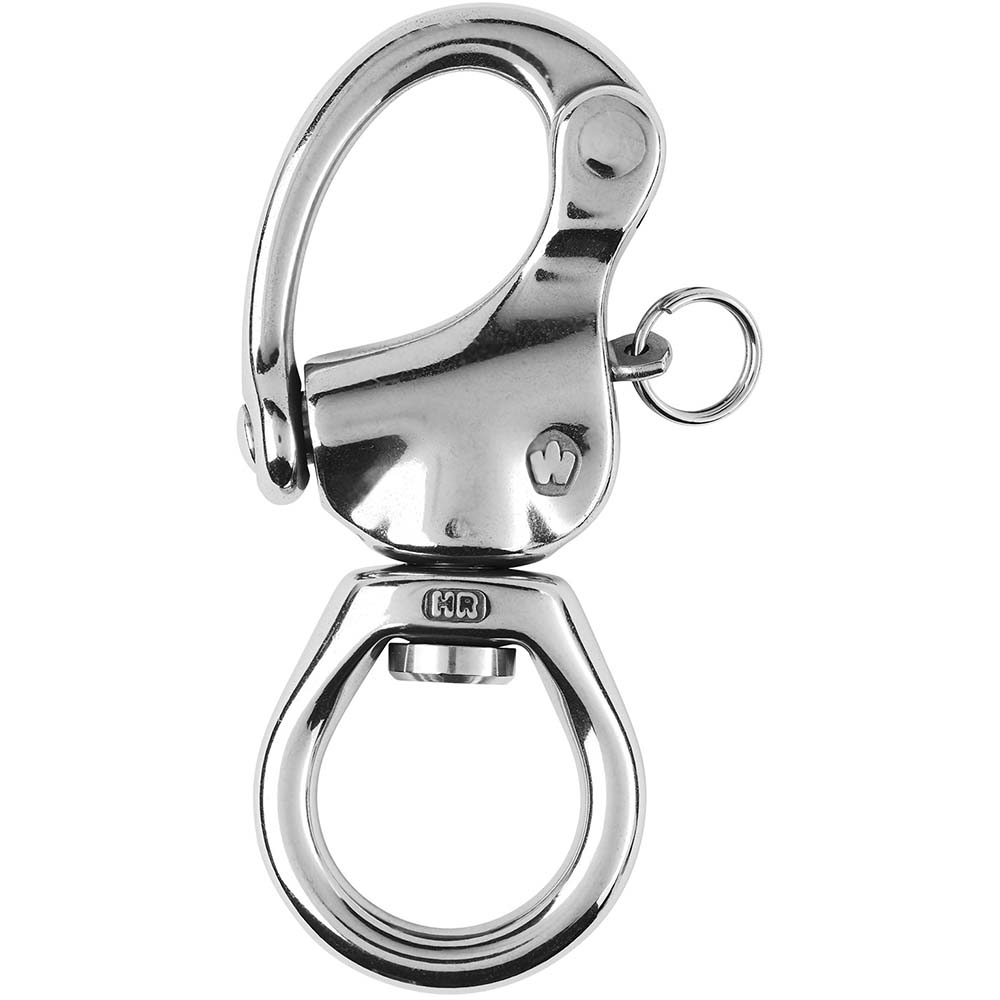

HR Snap Shackle - Large Bail - Length 80mm
Features:
- HR Forged snap shackle (Grade 17.4 PH stainless steel) with large eye
- The large eye allows attaching several ropes
- Free rotation of the snap shackle thanks to the swivel eye
- The plunger pin is set captive into the hook and cannot become detached
- Excellent working and breaking loads
- Easy to open by pulling the plunger pin (possibility to attach a lanyard)
Applications:
- Snap shackle applications
- Applications requiring a free rotation of the snap shackle (for a better sail orientation)
Specifications:
- Materials HR 17.4 PH stainless steel grade
- Length (inch) 3-5/32"
- Working load (lb) 2110
- Breaking load (lb) 4400
- Weight (lb) 0.154
Dimensions (see 2nd image):
- A (inch) 5/8"
- B (inch) 3/4"
SKU: NVN-93147
MPN: 02373
UPC: 768536023732
