Wichard Captive Pin Long D Shackle - Diameter 10mm - 13/32"
SKU: 93119 · UPC: 768536014150 · MPN: 01415
★★★★★
4.7 · 0 reviews
Authorized dealer15% off
$107.53
$126.51Save $18.98
or 4 payments of $26.88 with Affirm
Low stock — 2 left — Ships today
Pickup available · NVN Marine (FL)
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$107.53
02 · Overview
Wichard Captive Pin Long D Shackle - Diameter 10mm - 13/32" — Product description

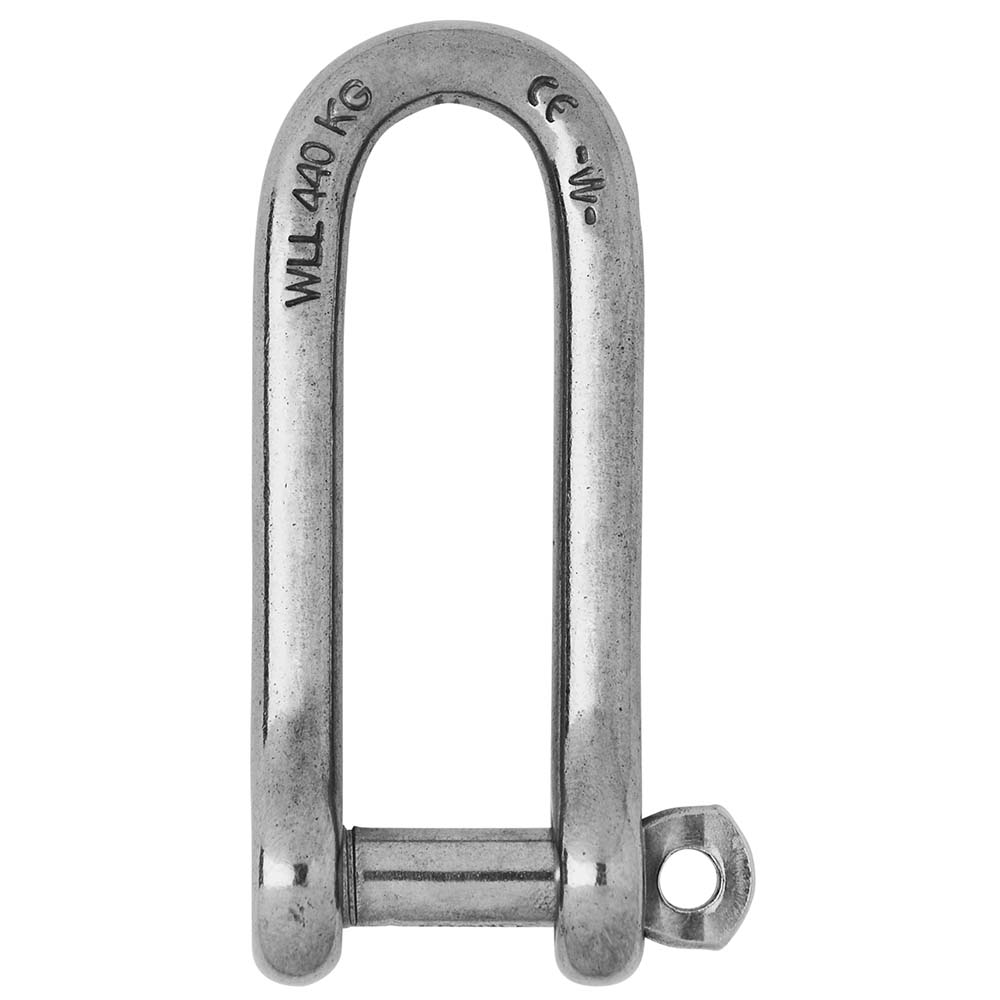

Captive Pin Long D Shackle - Diameter 10mm - 13/32"
Features:
- Captive pin long "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 3350
- WLL (lb) 2290
- Breaking load (lb) 11460
- Weight (lb) 0.388
Dimensions (see 2nd image):
- A (inch) 3-5/64"
- B (inch) 25/32"
- C (inch) 7/16"
- D (inch) 53/64"
- D diameter (inch) 25/64"
- E (inch) 25/64"
- F (inch) 4-1/16"
- G (inch) 2-1/8"
SKU: NVN-93119
MPN: 01415
UPC: 768536014150
